Using SCADA Software
148

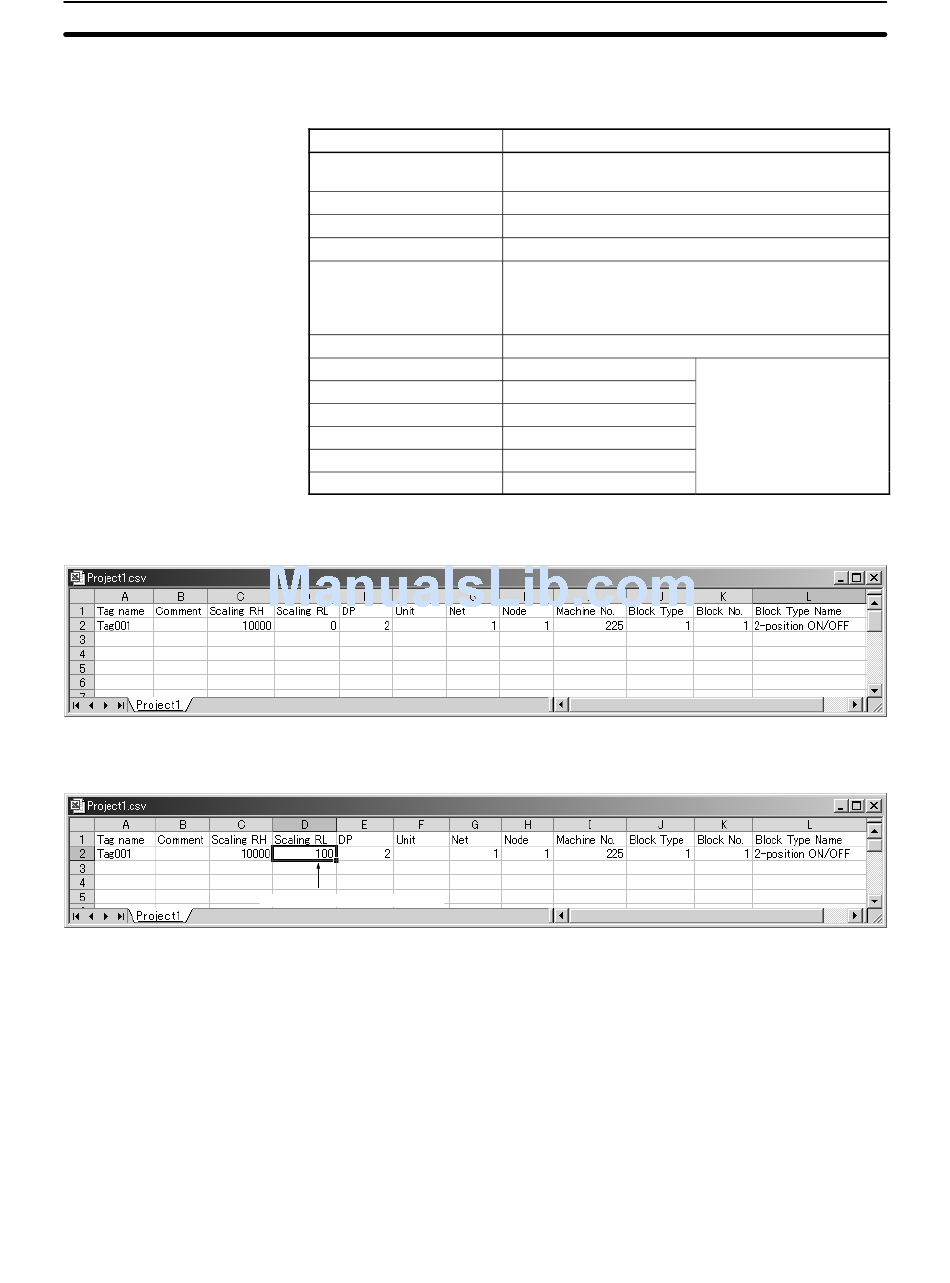

2. When the node function blocks are saved, a CSV setting file with the follow-
ing contents (project_name.csv) is automatically created in a folder with the
project name, under CX-Process Tool/data.
Settings
Tag name (representative
tag)
Tag comment
Scaling upper limit
Scaling lower limit
Decimal point position
(number of digits below
decimal point for scaling)
Unit
Network address
Node address
Unit address
Block model
Block address
Block model name
3. Open and edit the CSV setting file (project_name.csv) using a spreadsheet
program, such as Excel.
Edit the tag names (representative tags), scaling upper and lower limits,
decimal point positions, and units as shown in the following illustration.
Set scaling lower limit to 100.
Data set for automatic CSV tag registration
Tagjjj (j: Function block No.)
Blank
10,000 (Note: 0 for internal switches)
0
2
(Note: This will be 0 for Operation Blocks and internal
switches other than upper and lower limit alarms and
deviation alarms.)
Blank
0 to 127
0 to 32
16 to 31, 225
0 to 1,000
0 to 1,000
Name
Section 3-4
The contents of registered g
function blocks are f i bl k
automatically reflected. automatically reflected
