Editing Items In Function Blocks - Omron CX-PROCESS TOOL V5.2 - 12-2009 Operation Manual

Creating Function Block

3-1-9 Editing ITEMs in Function Blocks

1, 2, 3...
124
fied address can be incremented by selecting Jump/Memory Area/Increment
and decremented by selecting Jump/Memory Area/Decrement.
Use the following procedure to set the ITEMs in each function block.

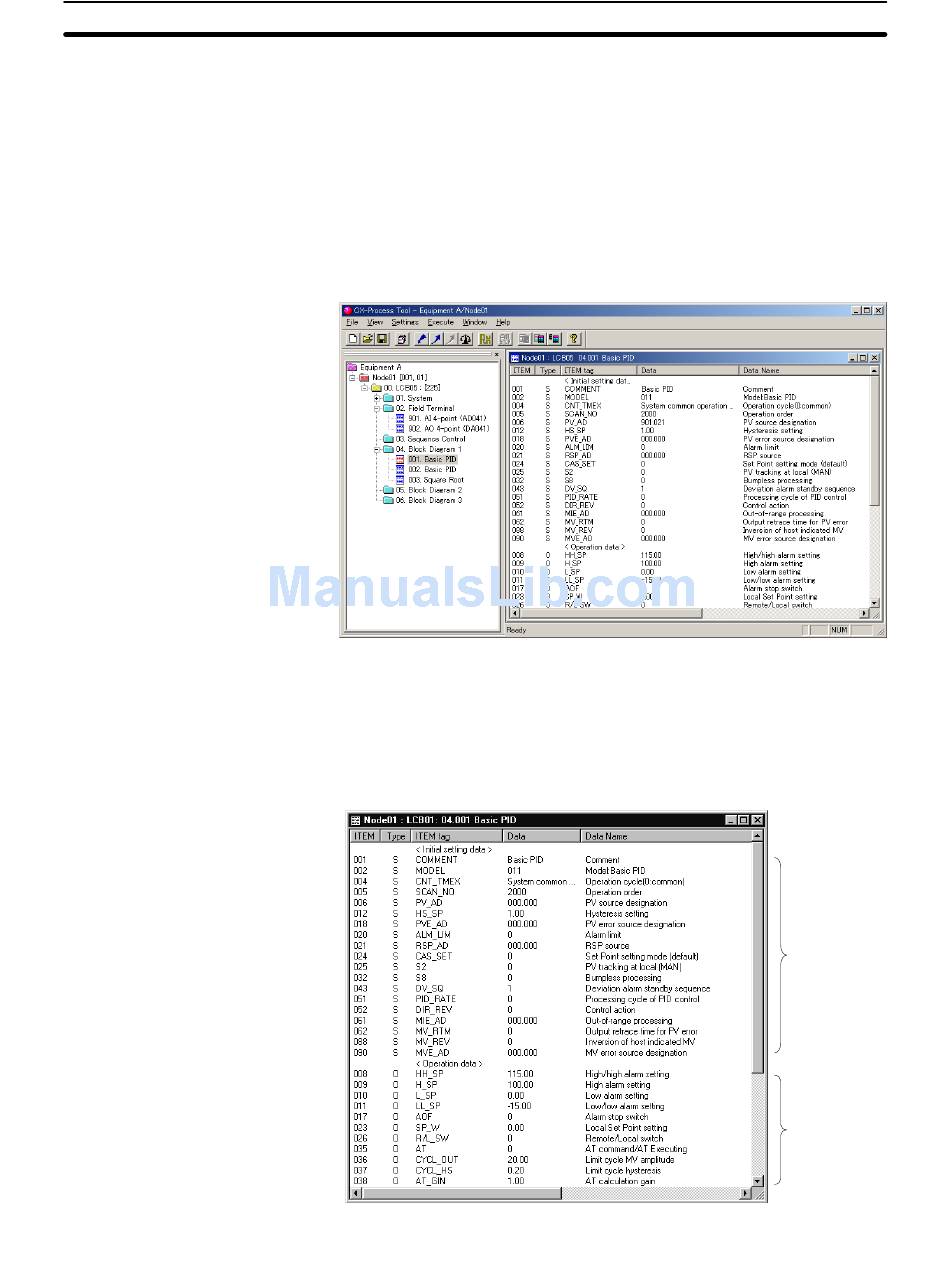

1. Double-click the function block Name (the block address of which is shown
on the left-hand side) on the Project Workspace Screen. A list of the ITEMs
will appear in the right pane.
The initial setting data (S) and operation data (O) appears in the Type col-
umn. Each ITEM for which the letter S appears in the Type column (i.e., ini-
tial setting data) must be set with the CX-Process Tool. Any ITEM for which
the letter O appears in the Type column (i.e., operation data) can be set with
the CX-Process Monitor.
