Editing Sequence Tables - Omron CX-PROCESS TOOL V5.2 - 12-2009 Operation Manual

Creating Sequence Tables

3-8-5 Editing Sequence Tables

1, 2, 3...
198

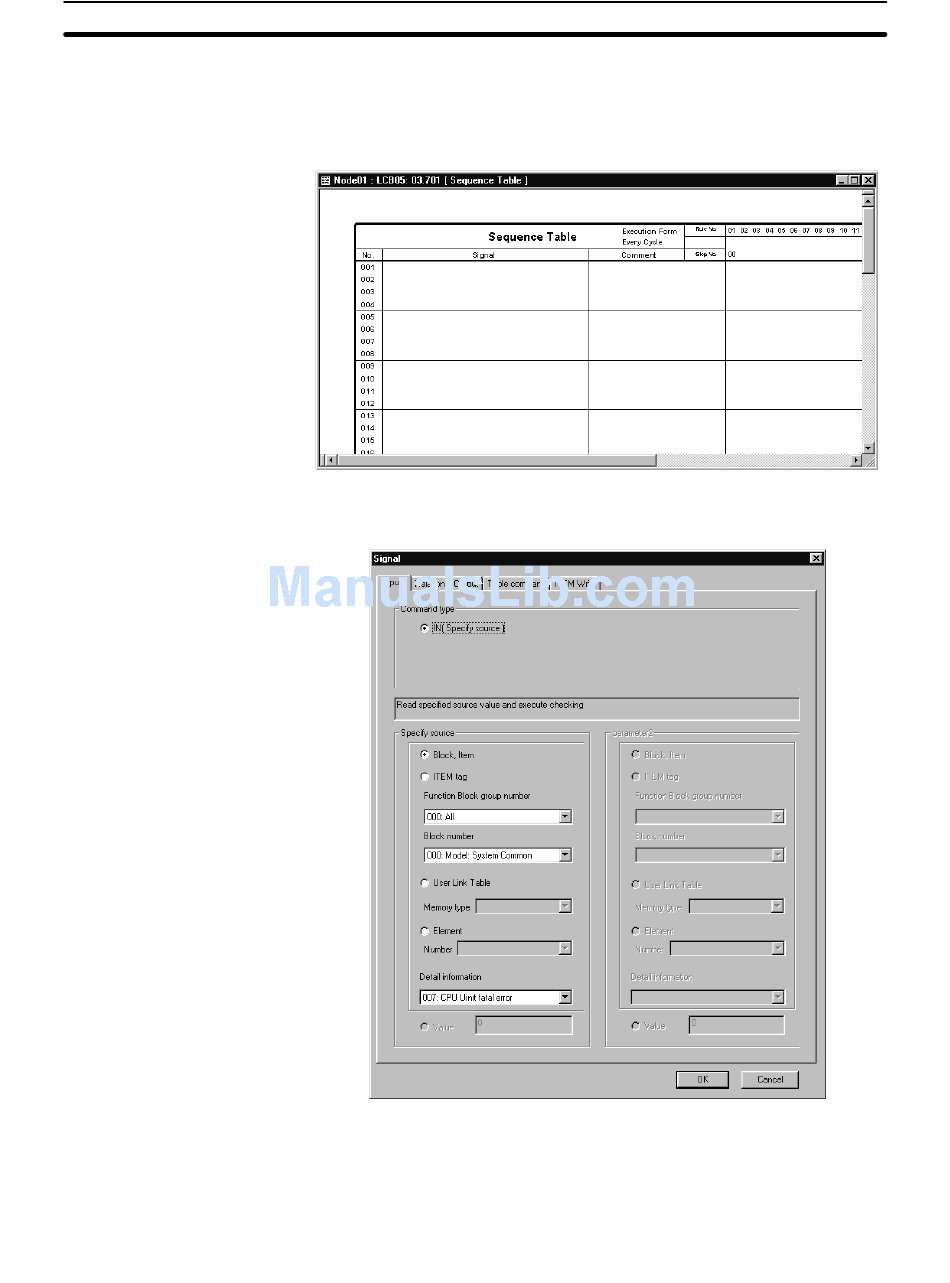

1. Right-click on the sequence table in the right side of the window and select
Edit Mode/Enabled. The sequence table will be changed to Edit Mode.
(Sequence Table will be displayed in black.)
2. Double-click a row in the conditions or actions section, or select the row and
select Data Edit/Signal Name from the pop-up menu. The Signal Dialog
Box will be displayed.
3. Select the Input, Relation, Output, Table Command, or ITEM Write Tab,
and set a signal in the Signal field for a condition or action. Refer to the fol-
lowing tables in 3-8-6 Settings for Conditions and Actions for details.
Note Timers and counters must be set in advance in Element Edit Mode
before they can be set. Refer to 3-8-7 Editing Elements for details.
Section 3-8
