Sequence Control Instructions
Example
3-4-9 FOR-NEXT LOOPS: FOR(512)/NEXT(513)
Purpose
Ladder Symbols
Variations

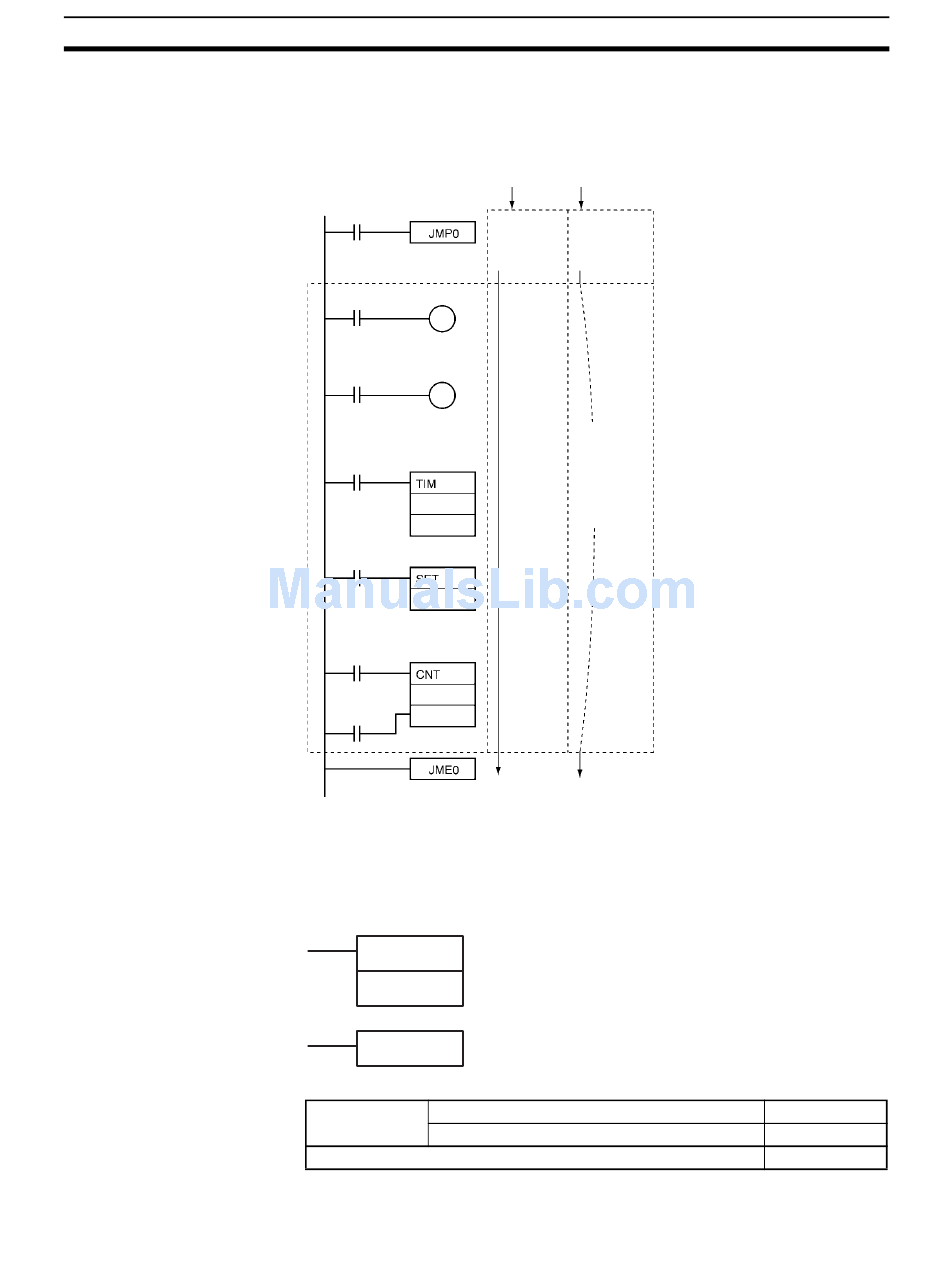

When CIO 0.00 is OFF in the following example, the instructions between
JMP0(515) and JME0(516) are processed as NOP(000) instructions and the
outputs maintain their previous status.
When CIO 0.00 is ON in the following example, the instructions between
JMP0(515) and JME0(516) are executed normally.
0.00
The instructions between FOR(512) and NEXT(513) are repeated a specified
number of times. FOR(512) and NEXT(513) are used in pairs.
FOR(512)
N
NEXT(513)
Variations Executed Each Cycle for ON Condition
Executed Each Cycle for ON Condition
Immediate Refreshing Specification
CIO 0.00 CIO 0.00
ON OFF
Instructions
Normal
processed
execution
as
NOP(000).
(Outputs re-
main un-
changed.)
N: Number of loops
Section 3-4
FOR(512)
NEXT(513)
Not supported
