Omron CP - PROGRAMMING MANUAL 05-2007 Programming Manual page 900

Network Instructions
Operand Specifications
Description
(7) Refer to Automatic Allocation of Communications Ports on page 851 for
details on using automatic allocation of the communications port number
(logical port).
(8) When the destination node number is set to FF (broadcast transmission),
there will be no response even if bits 12 to 15 are set to 0.
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
Indirect DM addresses
in binary
Indirect DM addresses
in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

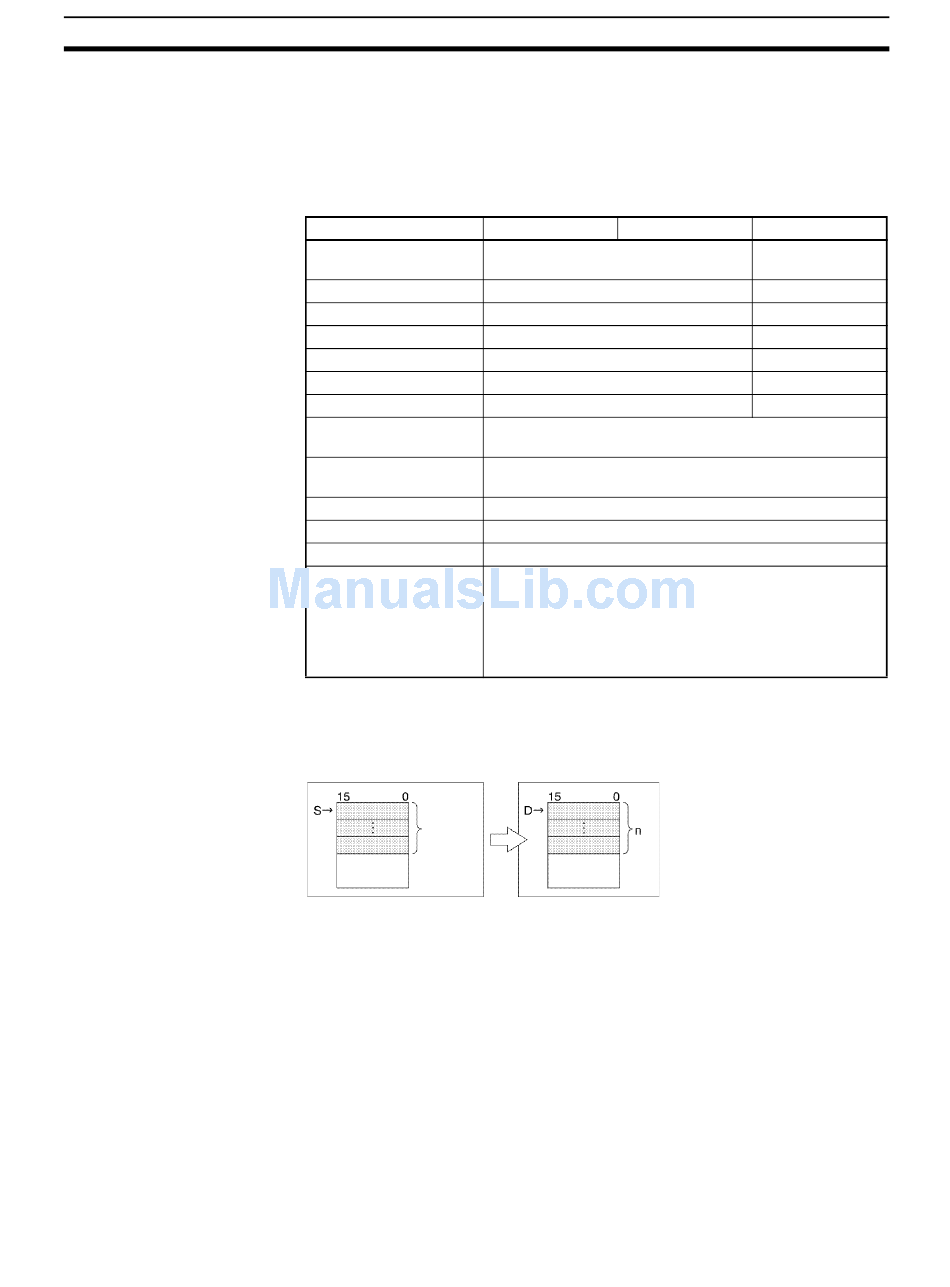

SEND(090) transfers the data beginning at word S to addresses beginning at
D in the designated device through the PLC's CPU Bus or over a network.
The number of words to be transmitted is specified in C.
Local node
Number
of words
to trans-
mit, n
If the destination node number is set to FF, the data will be broadcast to all of
the nodes in the designated network. This is known as a broadcast transmis-
sion.
If a response is requested (bits 12 to 15 of C+3 set to 0) but a response has
not been received within the response monitoring time, the data will be
retransmitted up to 15 times (retries set in bits 0 to 3 of C+3). There will be no
response or retries for broadcast transmissions.
SEND(090) can be used to transmit data to a particular serial port in the des-
tination device as well as the device itself.
Data can be transmitted to a host computer connected to the PLC's serial port
(when set to host link mode) as well as a PLC or computer connected through
a Controller Link or Ethernet network.
S
CIO 0 to CIO 6143
W0 to W511
H0 to H511
A0 toA959
T0000 to T4095
C0000 to C4095
D0 to D32767
@ D0 to @ D32767
*D0 to *D32767
---
---
---
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Destination node
Section 3-24
D C
CIO 0 to
CIO 6139
W0 to W507
H0 to H507
A0 to A955
T0000 to T4091
C0000 to C4091
D0 to D32763
867
