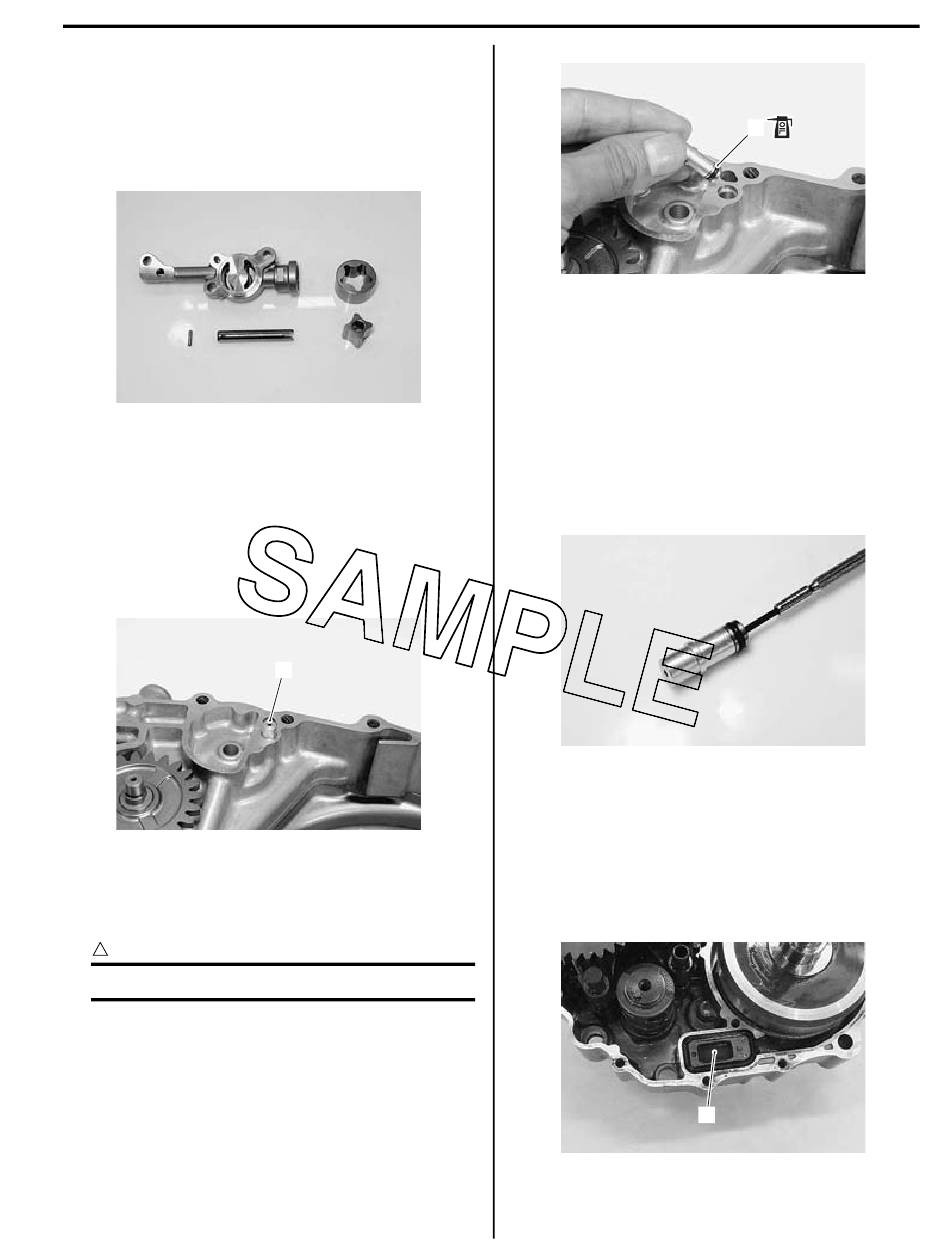

Oil Pump No. 2
1) Remove the oil pump No. 2. Refer to "Oil Pump No.
2 Removal and Installation" (Page 1E-5).
2) Inspect the oil pump parts for any defects or wear. If
any defects are found, replace the defective parts
with a new one.

Oil Relief Valve Removal and Installation

Removal
1) Remove the right crankcase cover. Refer to "Kick
Starter Removal and Installation" in Section 1I
(Page 1I-15).
2) Remove the oil relief valve (1) from the right
crankcase cover.
Installation
1) Apply engine oil to the O-ring (1) and press in the oil
relief valve to the right crankcase cover.
CAUTION
!
Replace the O-ring (1) with a new one.
IA02J1150021-01
BA02J21506011
1
IA02J1150022-01
Engine Lubrication System:
2) Install the right crankcase cover. Refer to "Kick
Starter Removal and Installation" in Section 1I
(Page 1I-15).

Oil Relief Valve Inspection

• Inspect the oil relief valve. Refer to "Oil Relief Valve
Removal and Installation" (Page 1E-7).
• Inspect the operation of the oil relief valve by pushing
on the piston with a proper bar. If the piston does not
operate, replace the oil relief valve with a new one.

Oil Reed Valve Removal and Installation

Removal
1) Separate the left and right crankcase. Refer to
"Engine Bottom Side Disassembly" in Section 1D
(Page 1D-51).
2) Remove the oil reed valve (1).
1
IA02J1150023-01
BA02J21506012
IA02J1150024-01
BA02J21506013
1
IA02J1150025-01
1E-7
