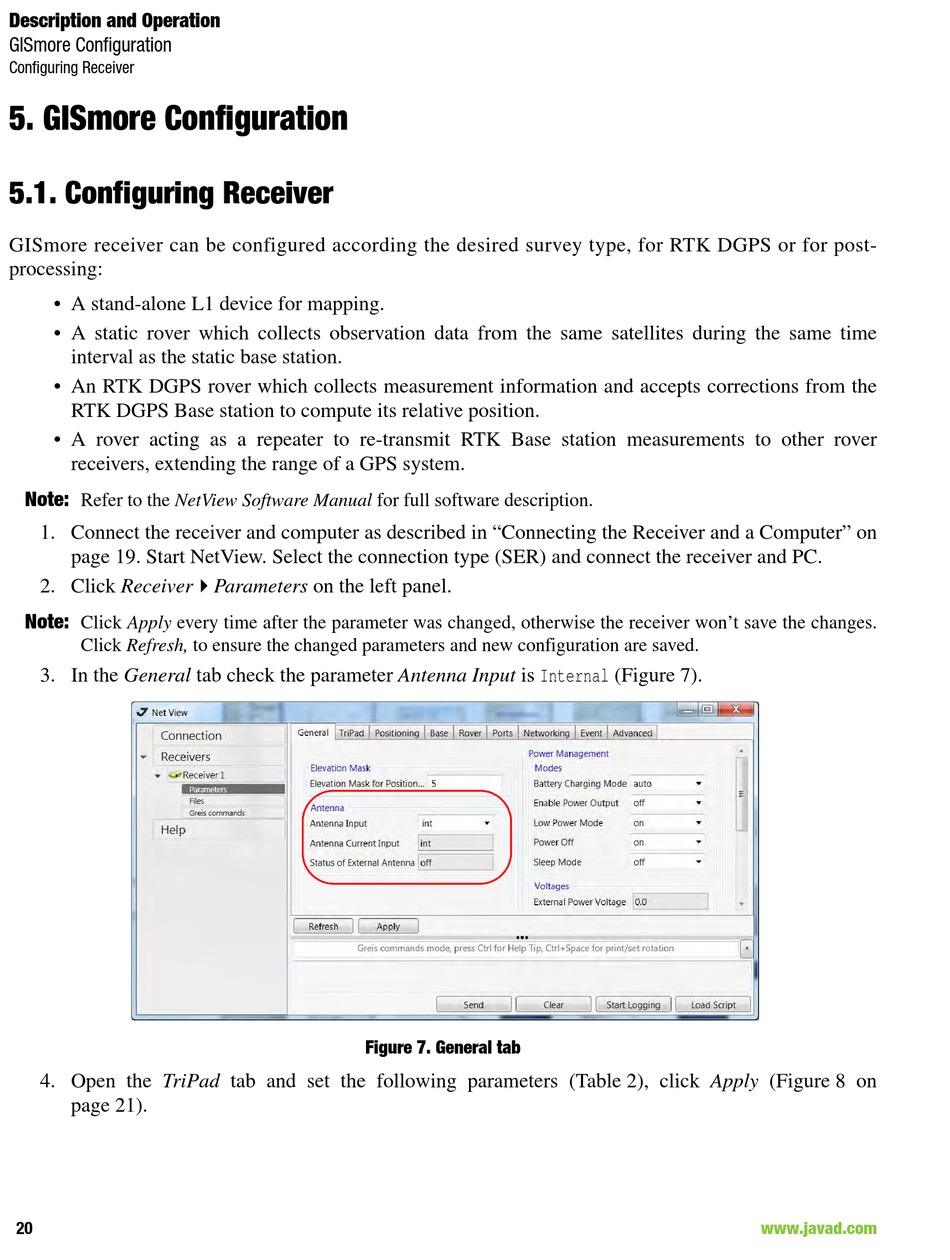

5. GISmore Configuration
5.1. Configuring Receiver
GISmore receiver can be configured according the desired survey type, for RTK DGPS or for post-
processing:
• A stand-alone L1 device for mapping.
• A static rover which collects observation data from the same satellites during the same time
interval as the static base station.
• An RTK DGPS rover which collects measurement information and accepts corrections from the
RTK DGPS Base station to compute its relative position.
• A rover acting as a repeater to re-transmit RTK Base station measurements to other rover
receivers, extending the range of a GPS system.
Note:
Refer to the NetView Software Manual for full software description.
1. Connect the receiver and computer as described in "Connecting the Receiver and a Computer" on
page 19. Start NetView. Select the connection type (SER) and connect the receiver and PC.
2. Click ReceiverParameters on the left panel.
Note:
Click Apply every time after the parameter was changed, otherwise the receiver won't save the changes.
Click Refresh, to ensure the changed parameters and new configuration are saved.
3. In the General tab check the parameter Antenna Input is Internal (Figure 7).
4. Open the TriPad tab and set the following parameters (Table 2), click Apply (Figure 8 on
page 21).
20
Figure 7. General tab
