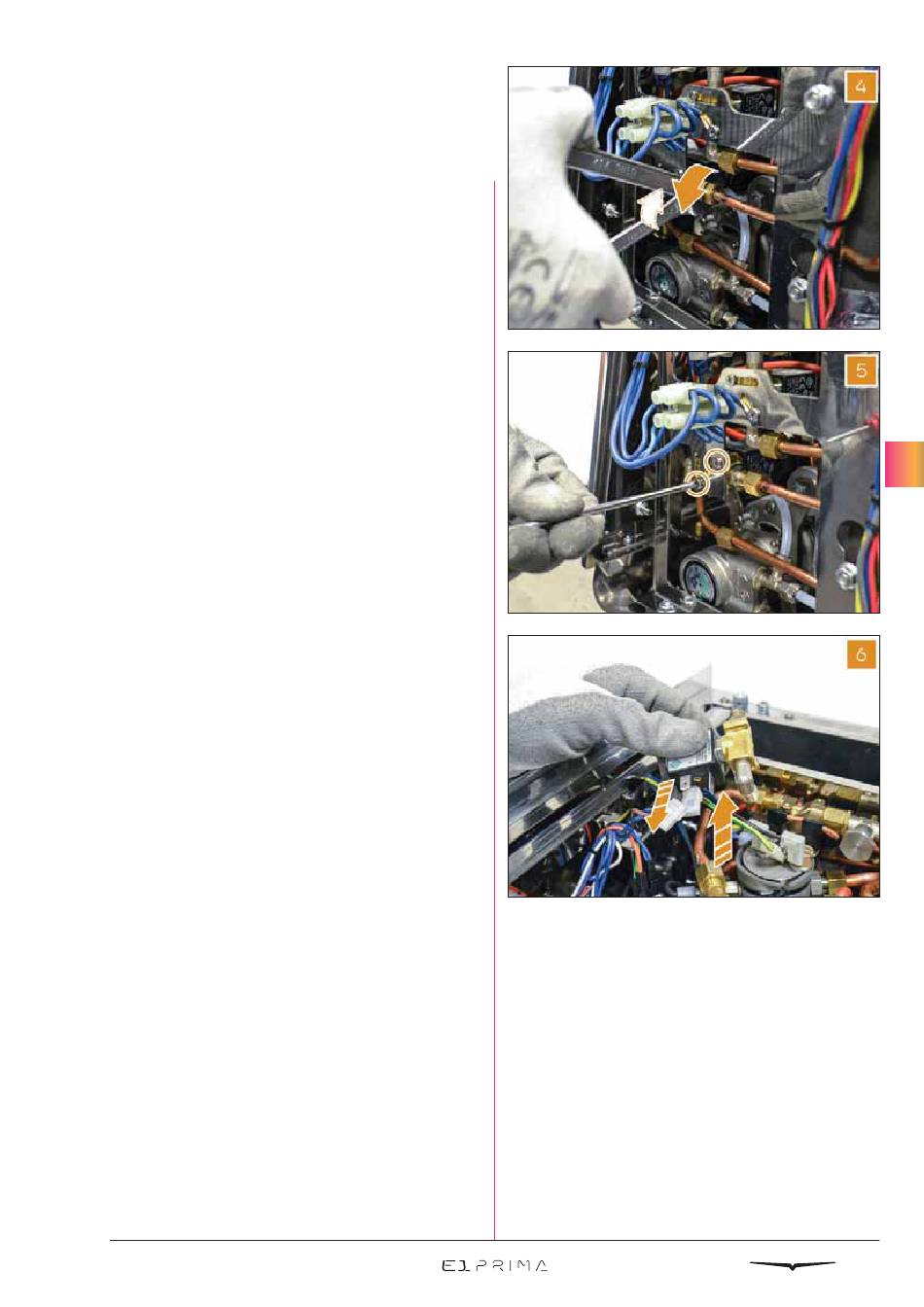

Utilizing a 13 mm and a 12 mm wrench-
4
es, disconnect the inlet pipe from the au-
to-fill valve.
Utilizing a Philips screwdriver, unscrew
5
the two screws.
6
Extract the auto-fill valve from the upper
side and disconnect the cables.
