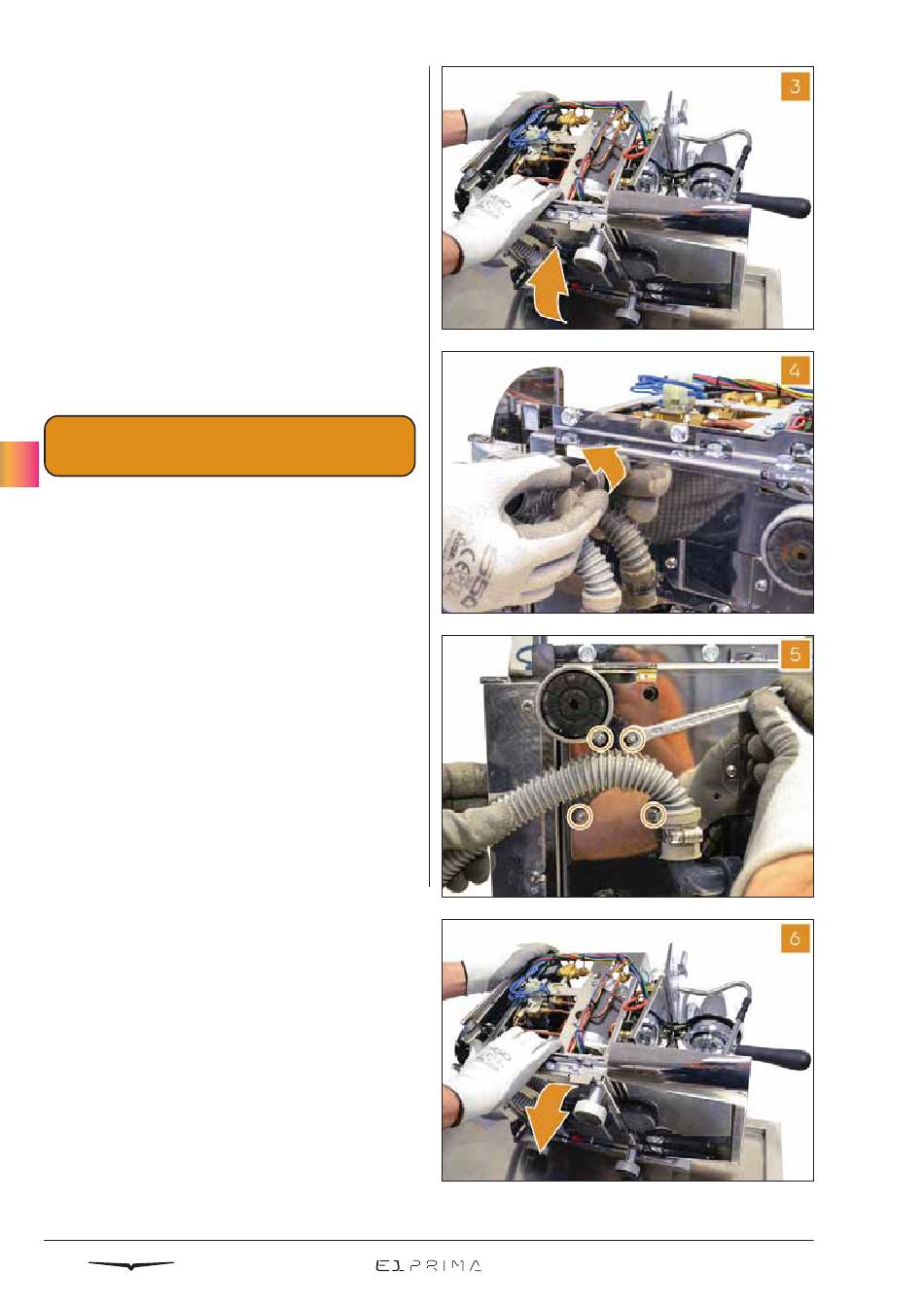

Rotate the machine on the right side, be-
3
ing careful to not damage it.
Completely unscrew and remove the
4
pressure control wheel.
07
Notice that the pressure control wheel
contains a spring.
5
Utilizing a 7 mm wrench, remove the four
nuts and washers that fix the pump-mo-
tor assembly to the frame.
Rotate the machine again in standard
6
position.
94
