3 .6 R EM O VAL O F
THE GRO UP CO VE R

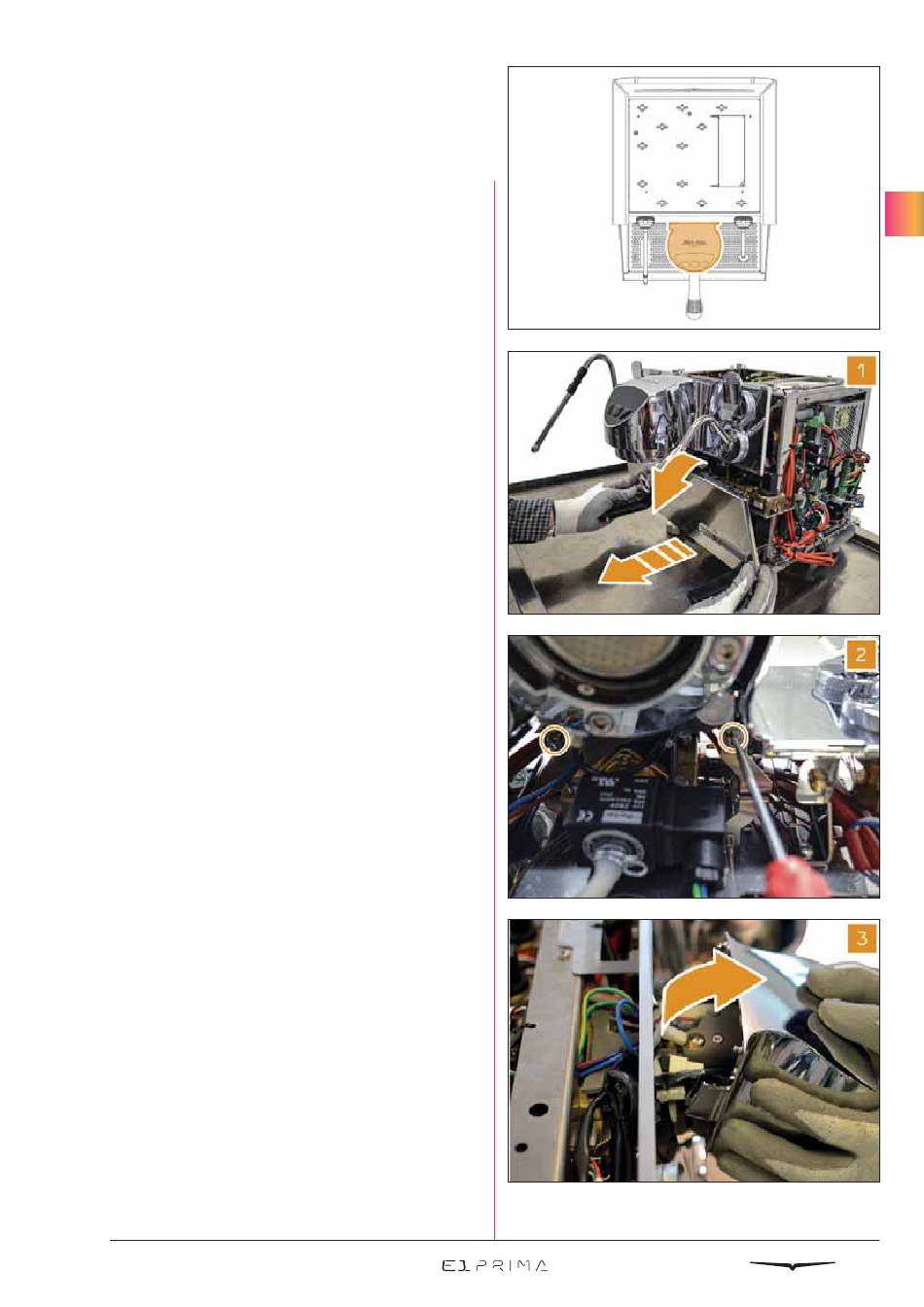

To access the group, proceed as it follows.
1
Remove the side panels, the drip tray and
the lower front panel, as described in the
previous paragraphs.
Utilizing a 3 mm Allen Key, partially un-
2
screw the two screws holding the group
cover.
Rotate the group cover from the top
3
downwards to remove it from the ma-
chine.
