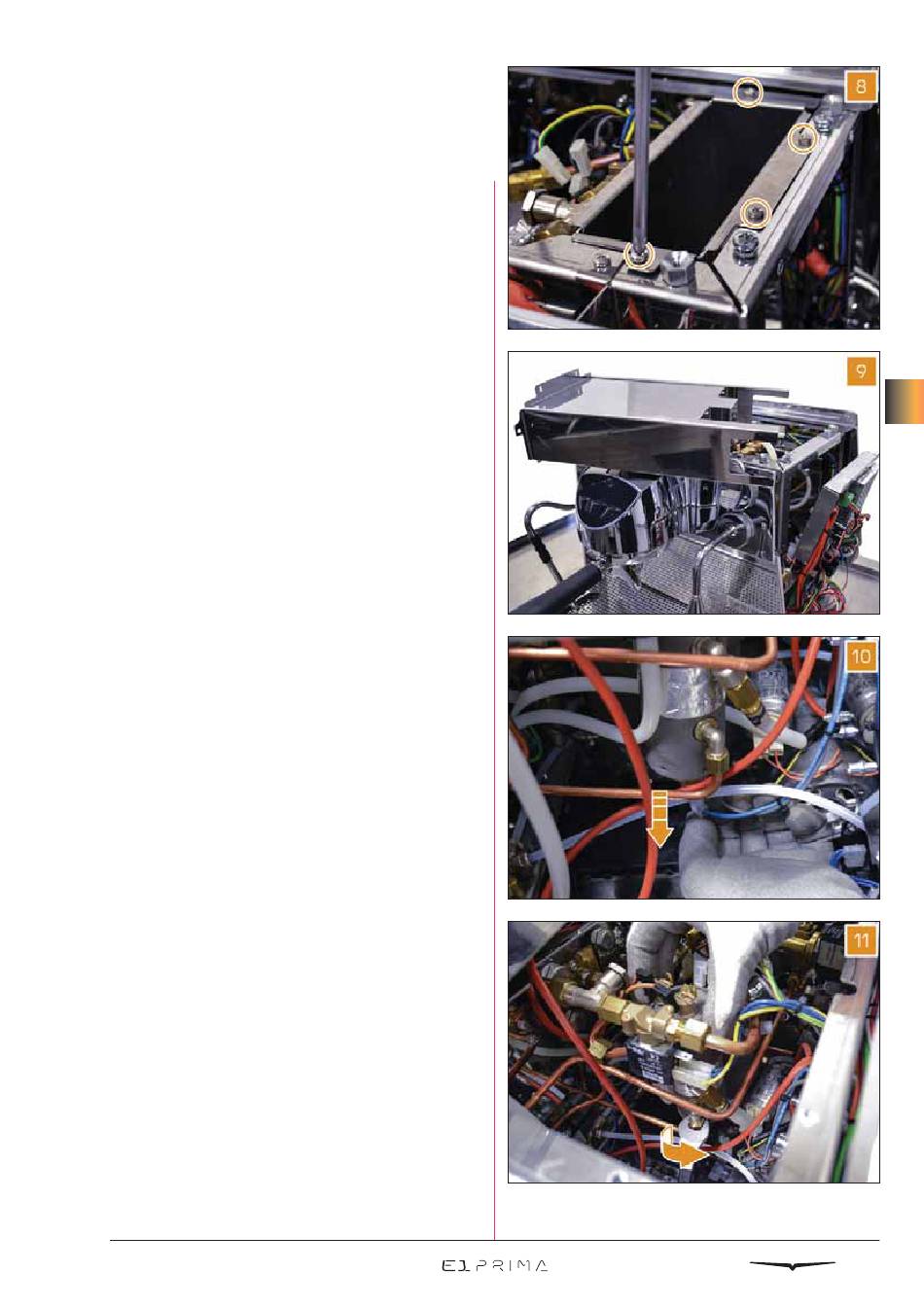

Remove the 4 screws of the water tank
8
support.
Extract the water tank support and place
9
it on the machine.
10
Disconnect the two heating element ca-
bles from the bottom of the coffee boiler.
11
Utilizing a 13 mm wrench by entering from
the right side of the machine, and keep-
ing the coffee boiler with the other hand,
unscrew the inlet coffee boiler pipe.
