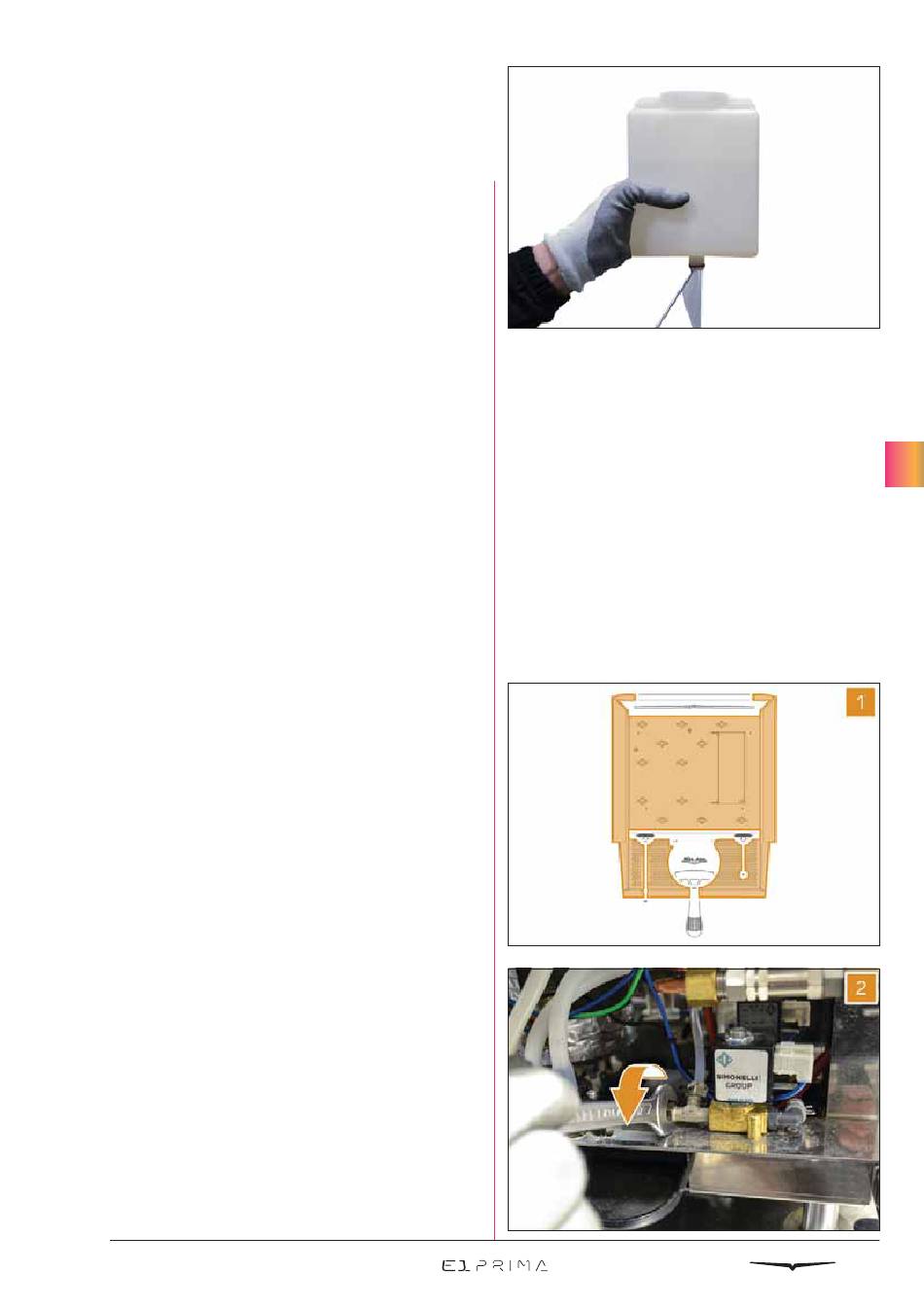

7. 2 TA NK
The tank is easily removable by hand and it
is reachable by opening the tank cover on
the cup holder surface. It can contain up to
1.5 lt of water. It does not contain any float,
since a capacitive sensor, placed on the
external surface of the tank container, can
feel the water presence inside the tank.
To check if the tank is correctly working,
push the small valve on its bottom.
7. 3 TA NK VALVE AN D
WA TER ST O P VA LV E
The E1 PRIMA is always provided with the tank
valve and water stop valve. The tank valve
is placed on the front of the machine under
the flowmeter and its inlet is connected
with the tank; the water stop valve is placed
on the back of the machine and its inlet is
connected with the water mains.
Outputs of both valves are connected to the
pump.
When the machine requests water, the
control unit opens only the correct valve,
depending on the type of water supply set.
7 . 3.1 R EM OVAL OF T H E TA NK VA LVE
To remove the tank valve, proceed as it
follows:
1 Remove the cup holder surface, the side
panels, the drip tray, the lower front panel
and the tank as described in Chapter 3.
Utilizing a 12 mm wrench, remove the two
2
Teflon pipes of the T connection.
