7 . 5 RE MO VA L O F
T HE A UTO - F ILL VA LV E
The auto-fill valve is positioned on the left
side of the machine, over the pumps. Its
operation regulates the amount of water
that flows inside the heater during all phas-
es of machine operation. The control unit
continuously interrogates the level sensor
and opens the valve if the level of water in
the boiler is not sufficient to cover the heat-
ing element.

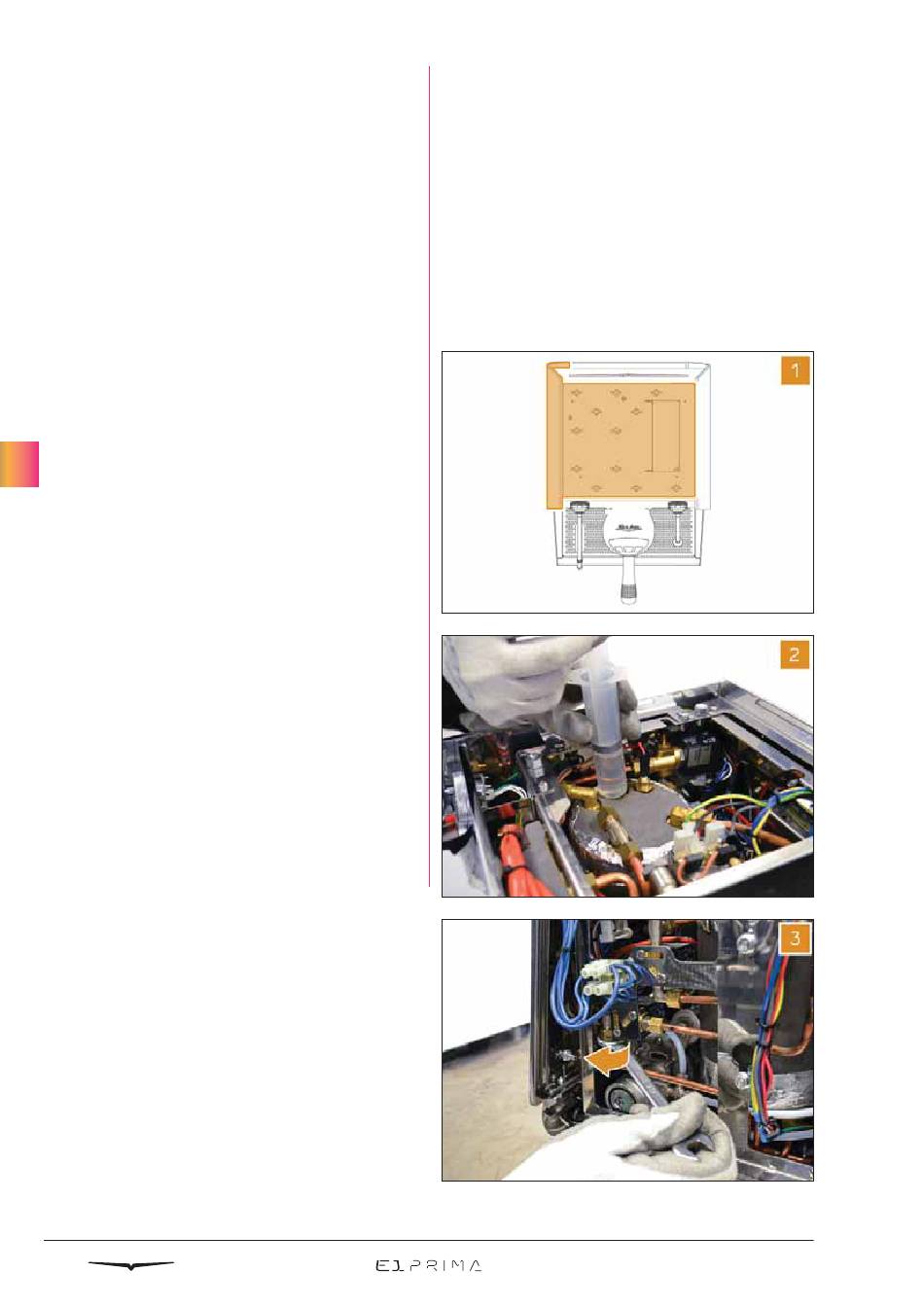

To remove the auto-fill valve, proceed as it
follows:
1 Remove the cup holder surface and the
left side panel, as described in Chapter 3.
07
Empty the boiler as described in para-
2
graph 5.2.
Utilizing a 13 mm wrench, disconnect the
3
outgoing pipe from the auto-fill valve.
