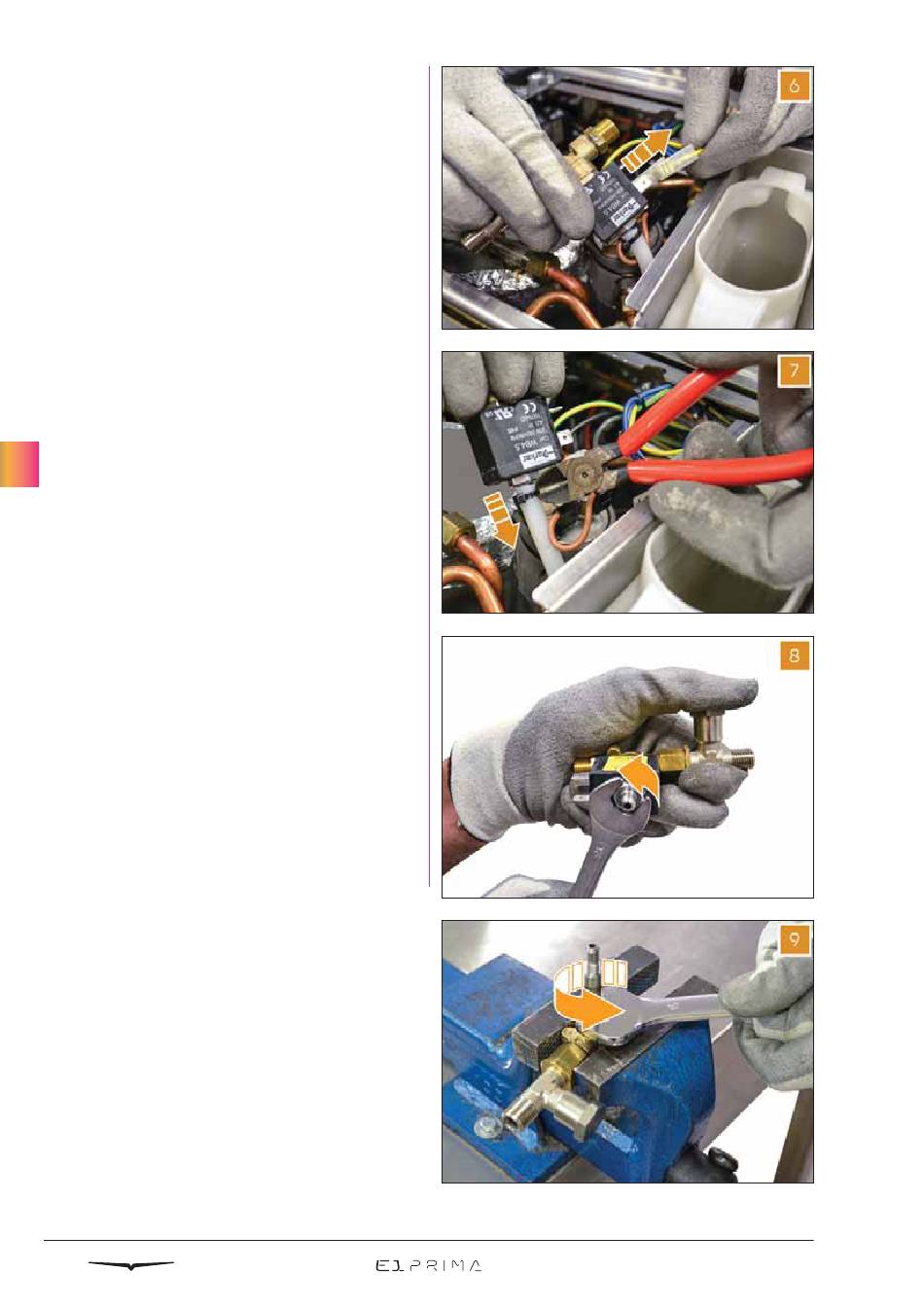

Extract the valve and disconnect the ca-
6
bles.
Cut the clamp and remove the Teflon
7
pipe of the third outlet.
07
8
Utilizing a 13 mm wrench, unscrew the nut
and remove the coil of the valve.
9
Utilizing a vise and a 16 mm wrench, un-
screw the valve base.
112
