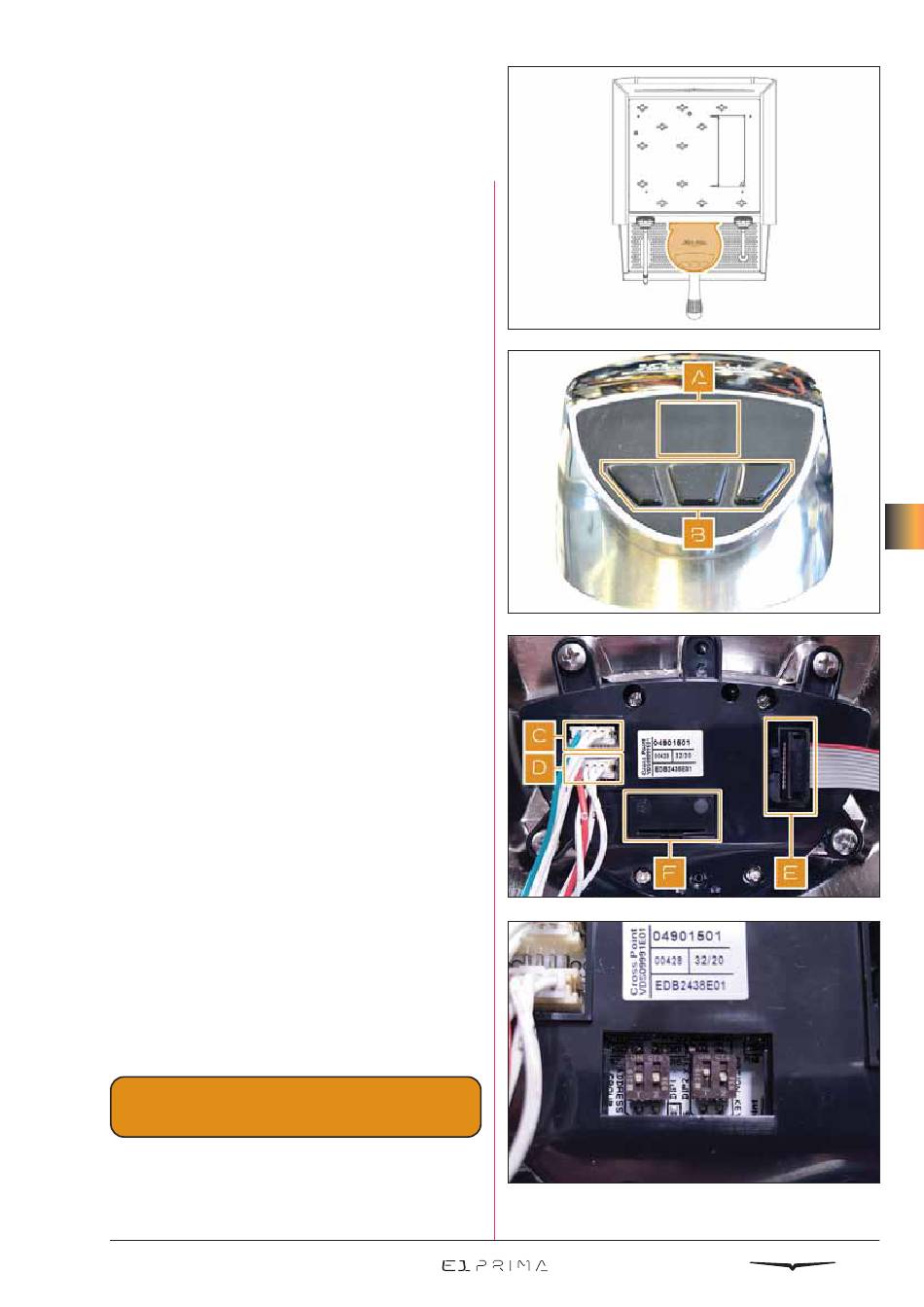

8 .6 GRO UP C OV ER
A ND SERV IC E B O AR D
The coffee group has a cover, where the
service board is installed.
To access it, remove the group cover as
described in paragraph 3.6.
The service board includes, on the front
side:
A
The ghost display
B
The 3-buttons keypad
On the rear side:
The connection for
C
steam / Easycream service
D
The connection for hot water service
E
The connection for the control unit
F
The DIP switch (under the small cover)
The DIP switch is accessible by removing
its small cover (F). Its setting permits to the
control unit to correctly identify the service
board.
The DIP switch configuration is mandatory:
the sequence is OFF - OFF, ON - OFF, and it
is shown in the picture.
WARNING
When a service board is replaced, it
is suggestable to check its DIP switch
configuration.
