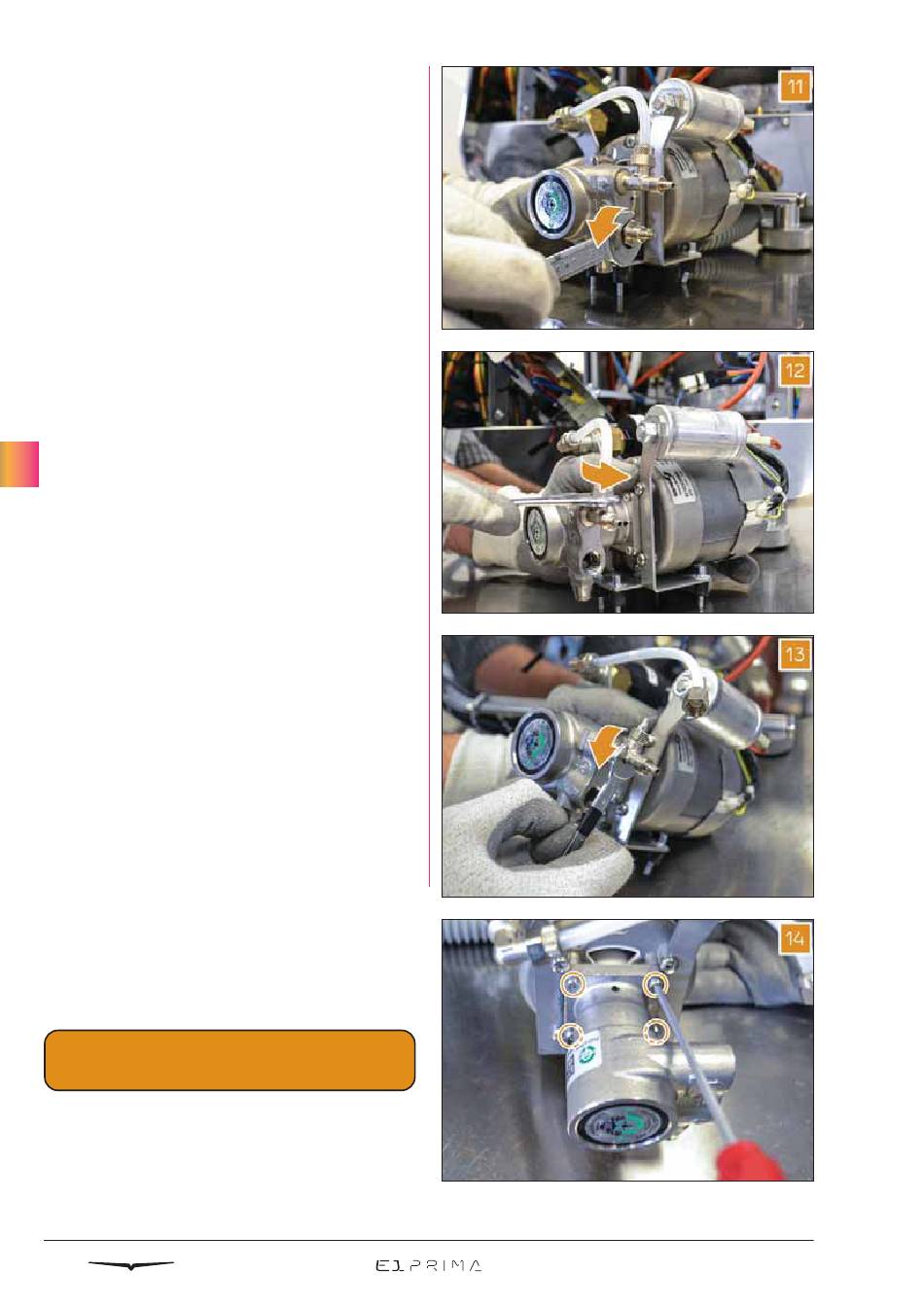

Once the pump-motor assembly has been
removed, to replace the pump proceed as
it follows:
Utilizing a 14 mm wrench, remove the inlet
11
fitting of the pump.
Utilizing a 12 mm wrench, remove the Tef-
12
lon pipe.
07
13 Utilizing a 9 mm wrench, remove the T
outgoing fitting of the pump.
14 Utilizing a 2,5 mm Allen key, remove the
four screws that fix the pump.
When reassembling the inlet and out-
going fittings on the pump, it is advisa-
ble to use Loctite glue.
