3 .3 R EM O VAL O F
THE REAR PAN E L

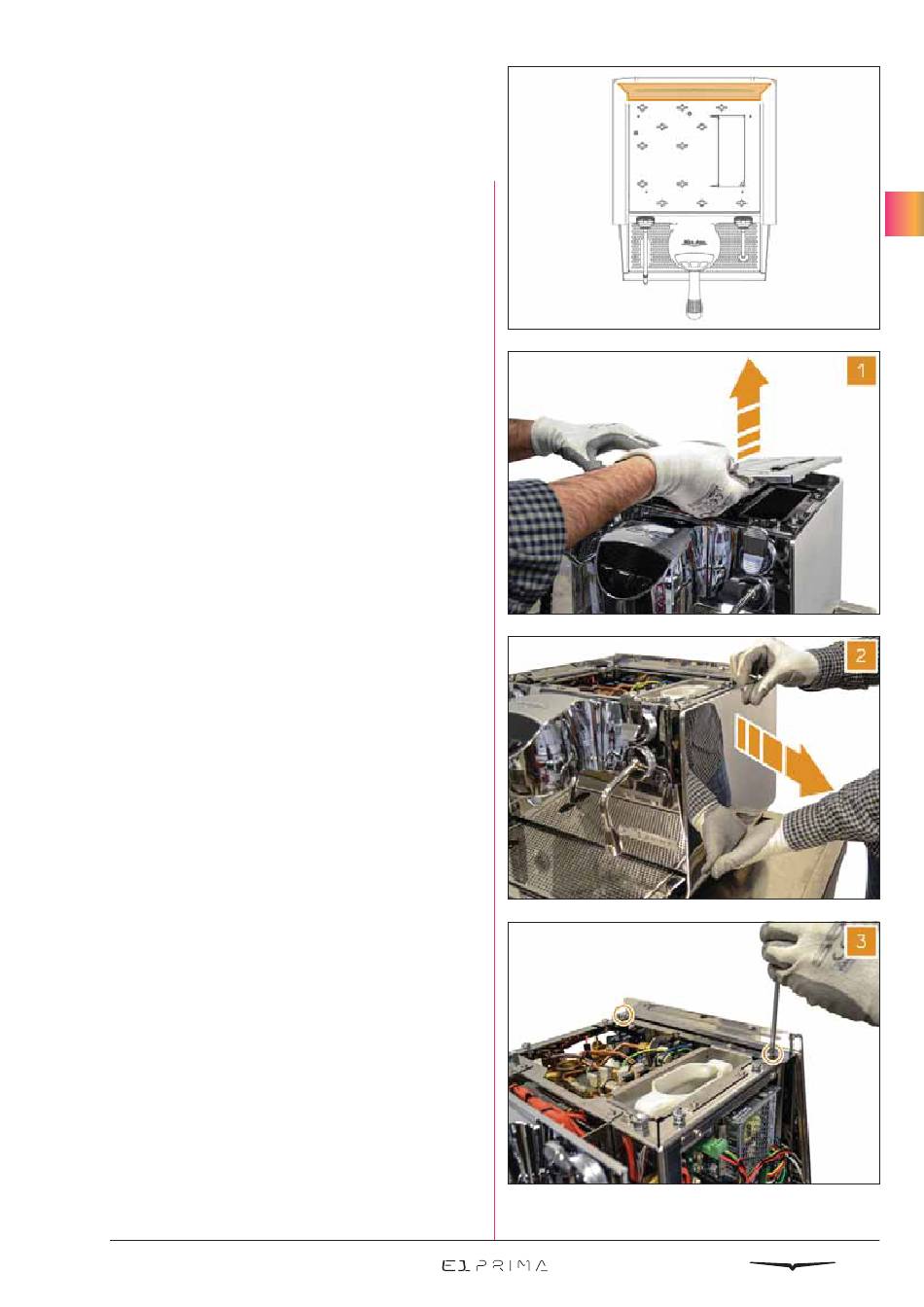

To remove the back panel it is necessary to:
1
Remove the cup holder surface.
Remove both side panels.
2
Utilizing a Philips screwdriver, loosen the
3
two upper screws.
