Victoria Arduino Mythos User Handbook Manual

Hide thumbs Also See for Mythos:

Advertisement

Table of Contents

MYTHOS
LIBRETTO ISTRUZIONI
(Istruzioni Originali)
USER HANDBOOK
(Translation of the Original Instructions)
MANUEL D'INSTRUCTIONS
(Traduction des Instructions Originales)
GEBRAUCHANWEISUNGEN
(Übersetzung der Originalanleitungen)
INSTRUCCIONES DE MANEJO
(Traducción de las Instrucciones Originales)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mythos and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victoria Arduino Mythos

Summary of Contents for Victoria Arduino Mythos

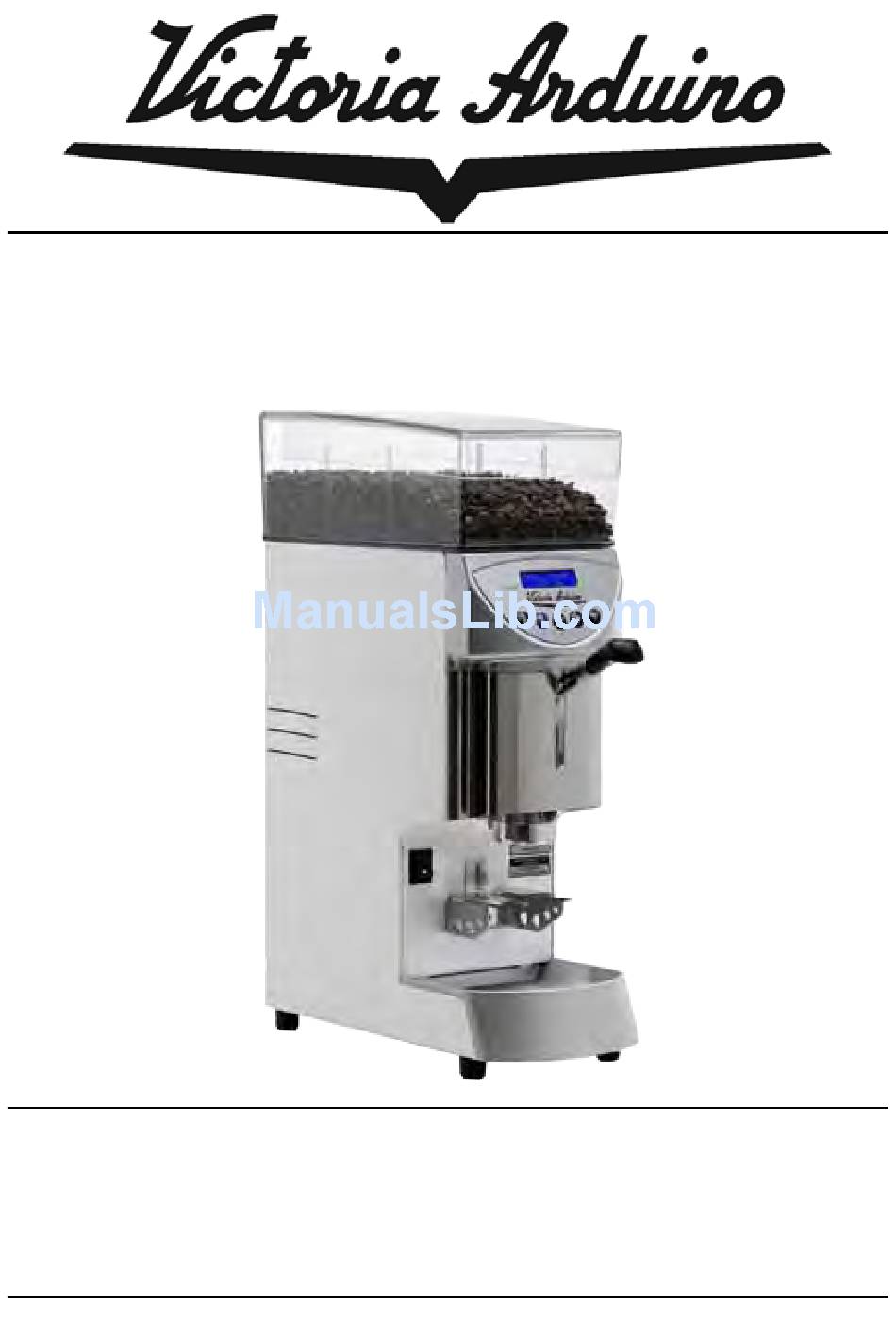

  • Page 1 MYTHOS LIBRETTO ISTRUZIONI (Istruzioni Originali) USER HANDBOOK (Translation of the Original Instructions) MANUEL D’INSTRUCTIONS (Traduction des Instructions Originales) GEBRAUCHANWEISUNGEN (Übersetzung der Originalanleitungen) INSTRUCCIONES DE MANEJO (Traducción de las Instrucciones Originales)
  • Page 2 Via M. D’Antegiano, 6 - 62020 Belforte del Chienti (MC) – ITALY Dichiariamo sotto la nostra responsabilità, che il prodotto: Declare under our responsibility that the product: SISTEMA ELETTRONICO DI MACINATURA PER CAFFÈ MODELLO: MYTHOS ELECTRONIC-INSTANTANEOUS COFFEE GRINDER SYSTEM MODEL: MYTHOS VERSIONE: 110V/60Hz - 230V/50Hz...
  • Page 3 Versione Italiana ............ Pag. 4 English version ............Pag. 16 Version française ..........Pag. 28 Deutsche Version ..........Pag. 40 Versión española ..........Pag. 52 MYTHOS...
  • Page 4 CLACK CLACK MYTHOS...

  • Page 5: General Information

    GENERAL INFORMATION MANUFACTURER: VICTORIA ARDUINO - Via M. D’Antegiano, 6 - Belforte del Chienti, Macerata - Italy MODELS: MYTHOS - Electronic-instantaneous coffee grinder system TECHNICAL DATA MODEL DESCRIPTION MYTHOS 220 MYTHOS 110 Volts (V) Frequency (Hz) Power (W) El. Motor power (W) Revolution per min.
  • Page 6 • Before carrying out any installation or adjustment process, be sure to have read and thoroughly understood the warnings in this manual. • The company cannot be held liable for any damage to people or property resulting from failure to respect the instructions concerning safety, installation and maintenance contained in this manual. MYTHOS...

  • Page 7: Applications And Use

    • Never attempt to unplug the machine by pulling the power cord or the machine itself. • Do not expose the machine to atmospheric agents (sun rain, etc.). • Never allow the machine to be used by children or by irresponsible persons. MYTHOS...

  • Page 8: Instructions For Use

    • Position the portafilter containing the dose of ground coffee in the fork (10) and lower the lever (8) till you hear a click (see Fig. 9). In raising the lever make sure that it re-arms itself (it must make another click) for the next press. MYTHOS...

  • Page 9: Programming Of The Machine

    Place the portafilter and push completely the microswitch at the base of the fork, on the display the writing “CHOOSE DOSE” will appear while all three dosage buttons will flash. At this point, press the dosage button of choice or the continuous grind button and the machine will start operating. MANUAL SELECTION MYTHOS...
  • Page 10 Refers to the word “TEST” and by pushing this button at this time will cause an immediate test of the time programmed (with microswitch at the base of the fork completely pressed in). Refers to the (+) symbol and increases the grind time. Refers to the word “SET” and memorizes the time programmed. MYTHOS...
  • Page 11 Continuing in the programming mode with the key, it is possible to find out the count for the number of coffees prepared for each single key, including each single pulse; To return to the program mode re-push the lit button. DOSES COUNT MYTHOS...

  • Page 12: Maintenance Setting

    The threshold value is increased or decremented from a minimum of 10000 to a maximum of 100000 (every 1000) by means of Pressing this key, the modification is confirmed. Pressing this key, maintenance counter value is reset. Pressing this key, you enter the standard dose programming. MYTHOS...

  • Page 13: Password Entry

    2) Changing a previous password. On the "ENTER PSW" page, it is first necessary to enter and confirm the previous password before following the instructions provided in point 1. MYTHOS...

  • Page 14: Language Selection

    5 seconds. 7.4.12 ADJUSTING LIGHTING DUrING NOrMAL OPErATION NORMAL LIGHT ADJUST If the keys are held down for 8 seconds from the language select screen, this will open the lighting adjustment function for the keys and the display. MYTHOS...

  • Page 15: Cleaning And Maintenance

    At least once a week it is necessary to remove the coffee bean container (2) which simply rests on the machine body (1). This is to remove the oily layer left by the coffee beans using a clean cloth. MYTHOS...

  • Page 16: Maintenance

    Maintenance operations must be carried out by specialized personnel authorized by the manufacturer. WARNING Do not carry out unprofessional or dangerous repairs, do not use non-original spare parts. Do not carry out unprofessional or dangerous repairs, do not use non-original spare parts. IDENTIFYING BREAKDOWNS Contact specialized personnel. MYTHOS...
  • Page 17 Via M. d’Antegiano, 6 62020 Belforte del Chienti Macerata Italy Tel. +39.0733.9501 Fax +39.0733-950242 www.victoriaarduino.com info@VictoriaArduino.it Victoria Arduino si riserva di apportare tutte le modifiche ritenute necessarie. Graphics by: “ Type Engineering S.r.l.”...
