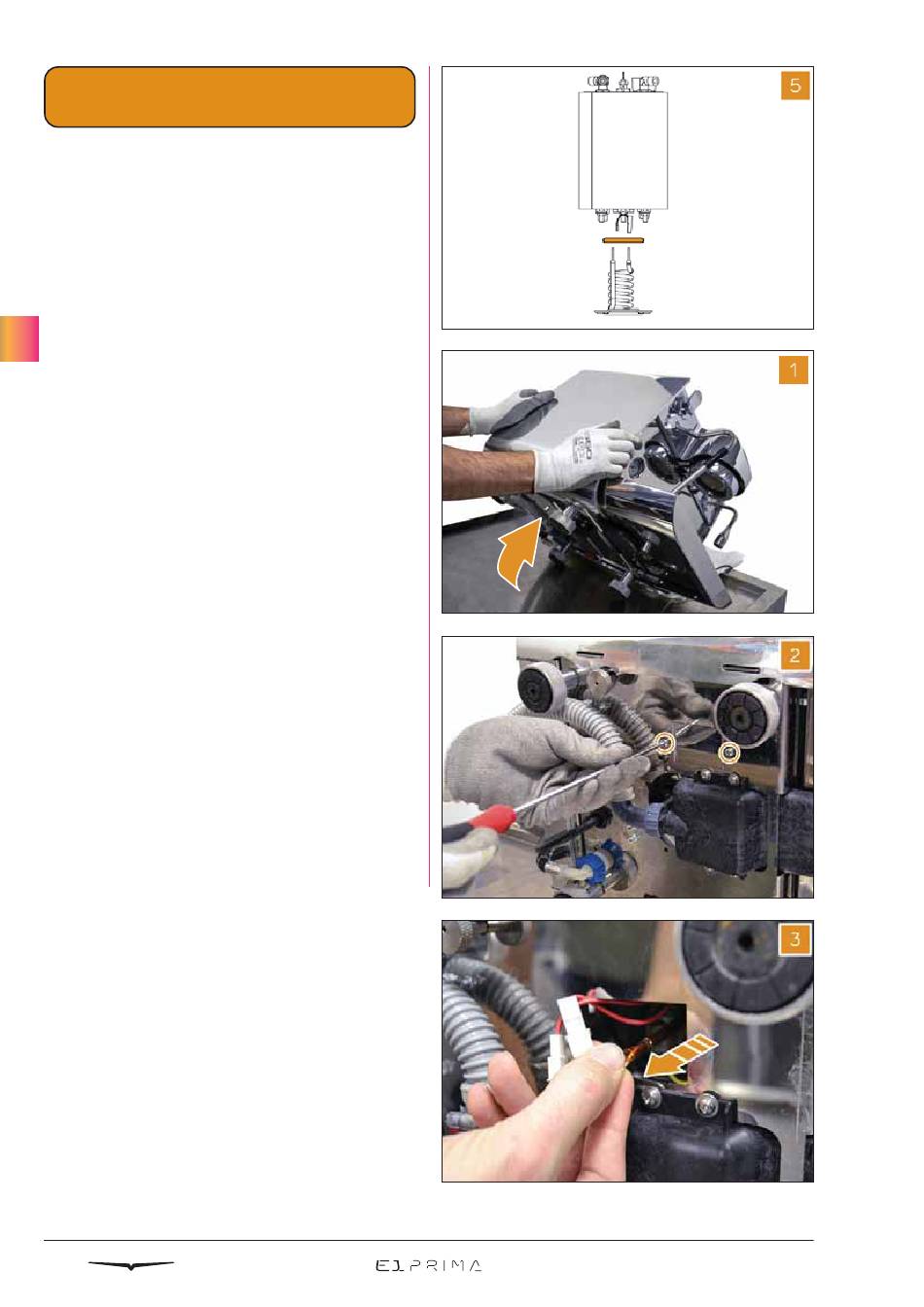

Each time you replace the heating ele-
ment is also necessary to change the
viton O-ring that isolates it from the
boiler because it is a part subject to
wear, therefore the component must
be ordered together with the heating
element.
05

5. 5 T HE SAF E TY T HE RMO - F USE

The safety thermo-fuse is connected in series
with the Power IN of the control unit and of
the transformer, and opens the electrical
circuit once the temperature limit of 184°C in
the steam boiler has been exceeded.
If the machine does not turn ON, remove the
safety thermo-fuse and check its continuity.
Proceed as it follows:
Rotate the machine on the right side, be-
1
ing careful to not damage it.
Utilizing a Philips screwdriver, remove the
2
two screws that keep the base cover.
Extract the safety thermo-fuse.
3
68
