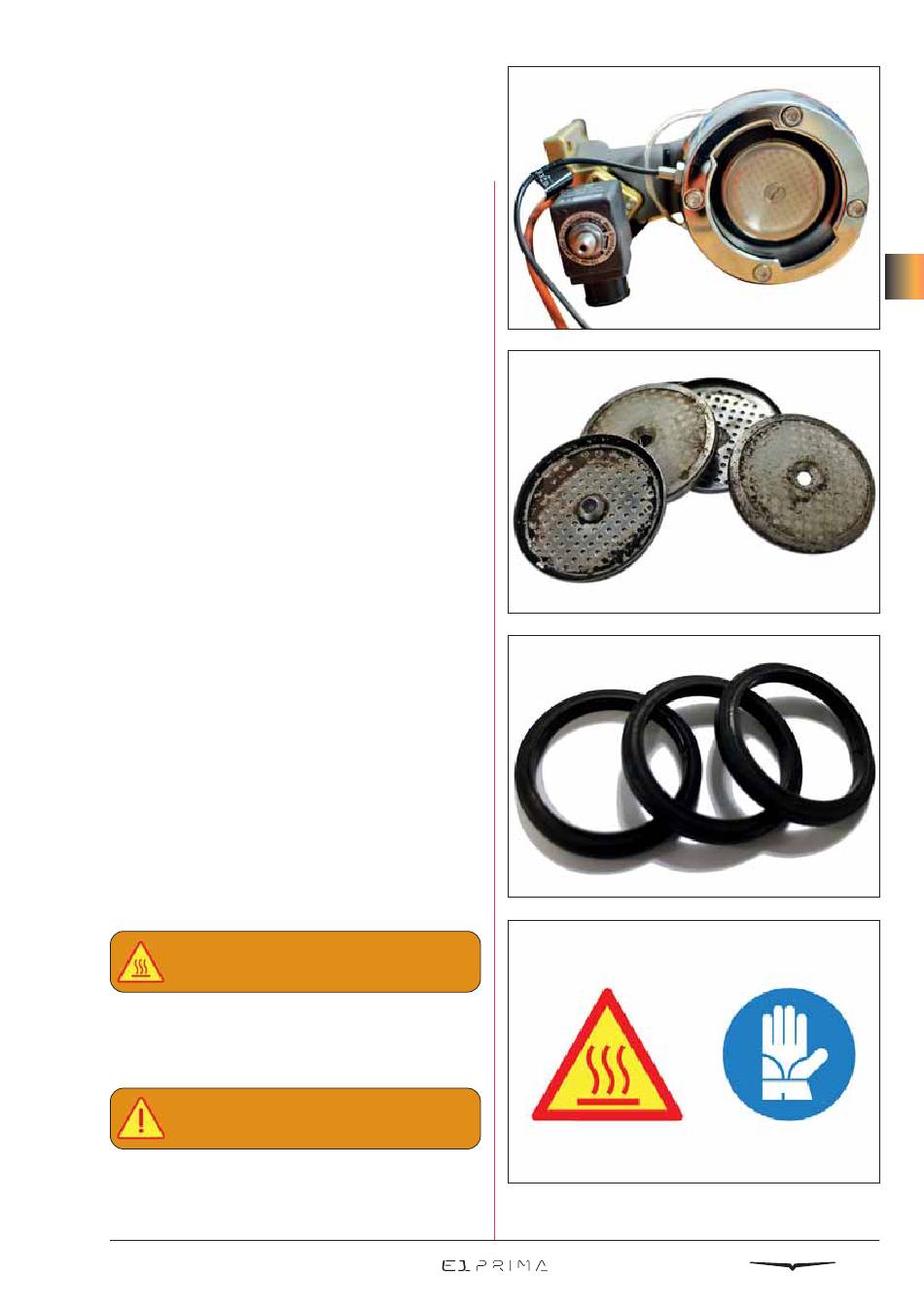

The last part of the infusion group is houses
a pavilion, a shower and underpan seal.
The pavilion distances the shower from the
coffee, according to the need for different
thicknesses.
The machine comes with 3 mm pavilions.
The shower is the interface between the
coffee and the machine, preventing the
coffee from rising inside the machine.
Shower and pavilion tend to get dirty and
must be removed and cleaned at least
weekly. Furthermore, they must be replaced
periodically.
The underpan seal prevents water from
coming out from the sides of the pavilion
and reach the capsule unevenly or spill
from the filter holder.
Since the material is plastic and exposed
to high temperatures, the seal must be
replaced regularly because it tends to
deform and lose elasticity.
DANGER
Before proceeding with the operations
described in the chapter make sure
that the machine is turned OFF.
WARNING
If the machine was turned OFF recently,
protect yourself with thermal insulation
gloves.
