8 .7 SERVIC E K N OB
Steam / Easycream and hot water wands
have their knob to start their service.
It is possible to push the knob up and down,
to have two different doses, in accord with
the programming.
If any knob is not working, check the cabling
or replace it, as it follows:

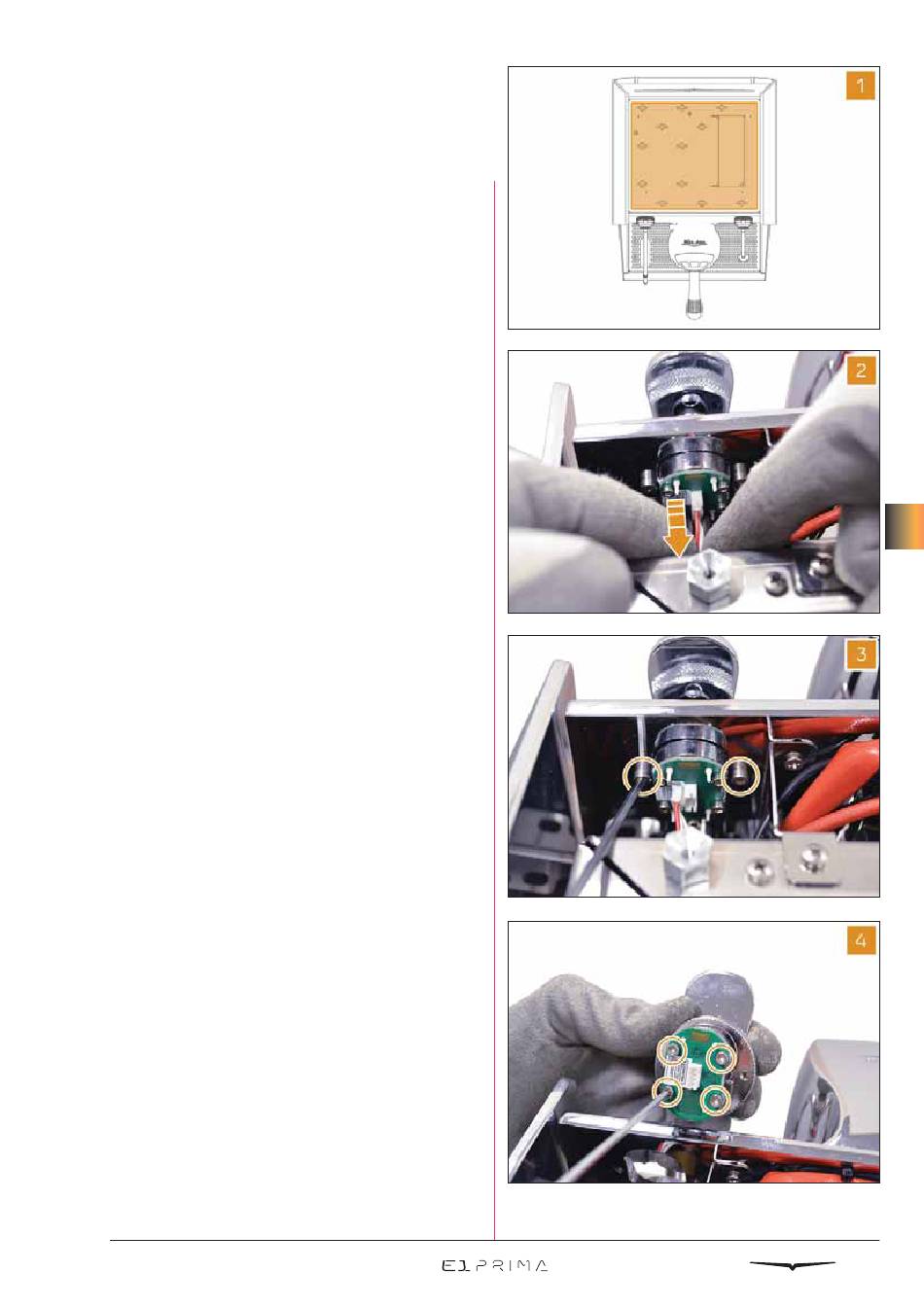

1
Remove the cup holder surface, as de-
scribed in Chapter 3.
Disconnect the cabling.
2
3
Utilizing a 3 mm Allen key, remove the
2 screws to replace the whole knob as-
sembly.
4
Utilizing a 2,5 mm Allen key, remove the
4 screws to replace only the knob board.
