5. 3 R E MO VA L O F
T HE STEA M B OI LE R

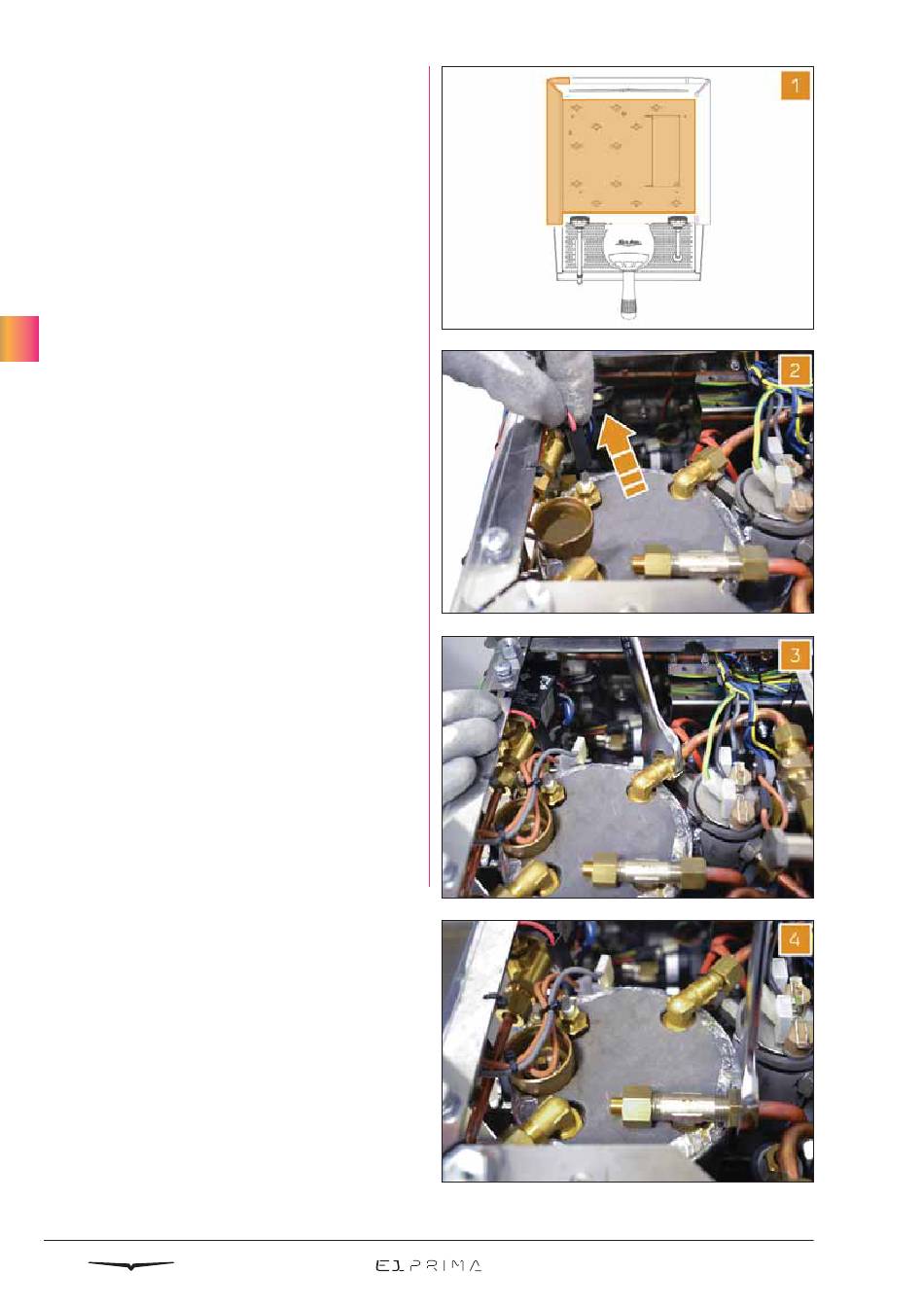

To remove the steam boiler, proceed as
follow:
Remove the cup holder surface and the
1
left side panel, as described in Chapter 3.
05
Disconnect the level probe.
2
Utilizing a 17 mm wrench, disconnect the
3
outlet steam pipe.
Utilizing a 17 mm wrench, disconnect the
4
safety valve pipe.
