Wa T E R Tan K P Re Sence Senso R - Victoria Arduino Eagle One Prima Service Manual

8. 8 WATE R TANK P RE SE N CE
SE NSO R
The water tank presence sensor is a capac-
itive sensor that recognises the presence of
water in the tank.
If it does not work, check its connection and
replace it if needed.

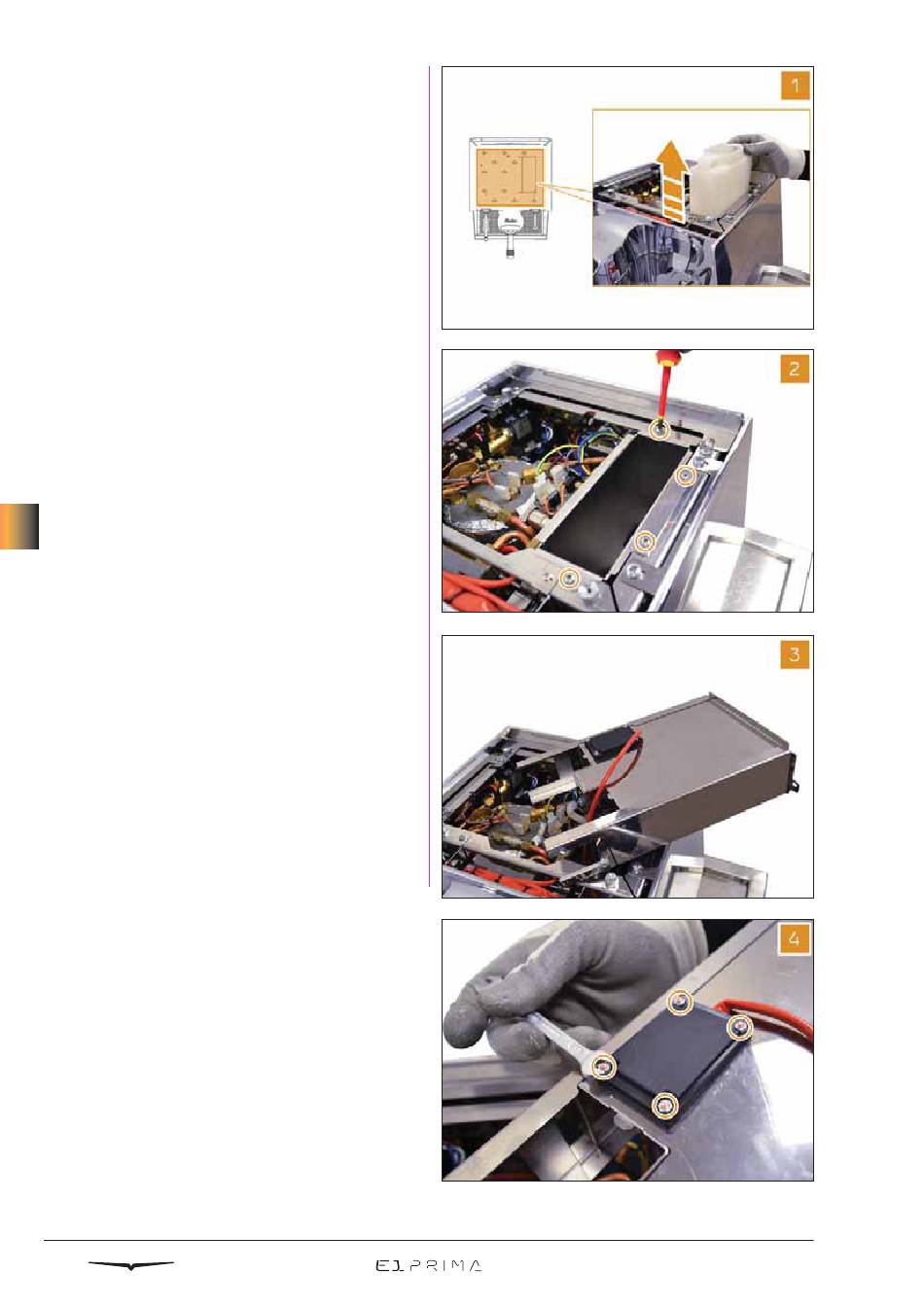

Proceed like it follows:
Remove the cup holder surface and the
1
water tank, as described in Chapter 3.
2 Utilizing a Philips screwdriver, remove the
4 screws of the water tank support.
08
Extract the water tank support and place
3
it on the machine.
Utilizing a 5,5 mm wrench, remove the
4
four nuts fixing the sensor cover and
open it.
