4 .3 R EPL AC IN G T HE SEA L
IN TH E PR E- I N FU SIO N
C HA MB ER

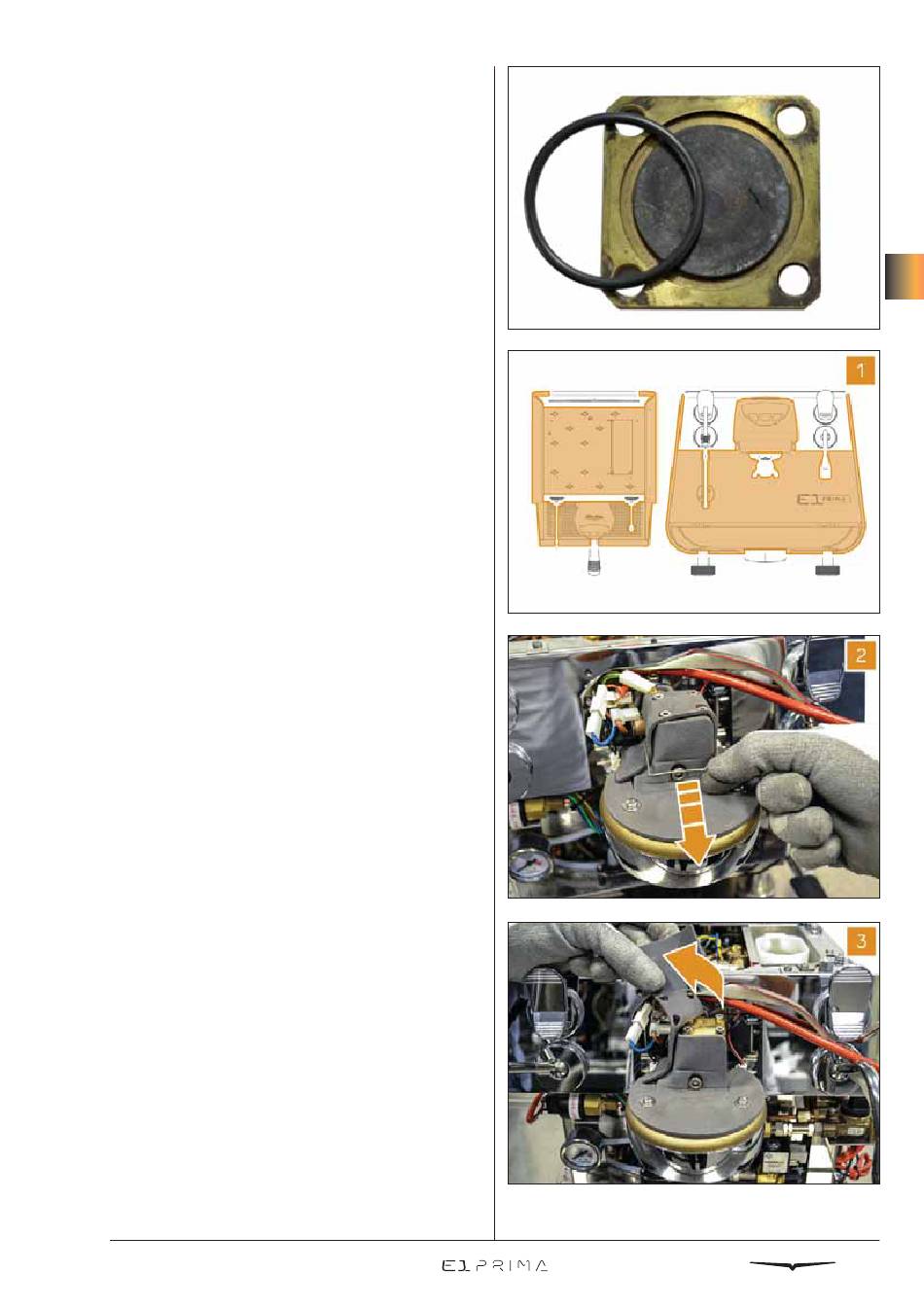

The pre-infusion chamber is sealed by a
cover fixed with four hex screws.
Under the cover there is a seal that should
be changed annually, in fact, like all seals, it
may deteriorate in time and lose elasticity.
WHEN TO REPLACE IT
The seal must be replaced annually or
when there is a leak from the pre-infusion
chamber.
HOW TO REPLACE
Remove the cup holder surface, the side
1
panels, the drip tray, the lower front pan-
el and the group cover, as explained in
Chapter 3.
Remove the clip of the insulating cover.
2
3 Lift the insulation cover.
