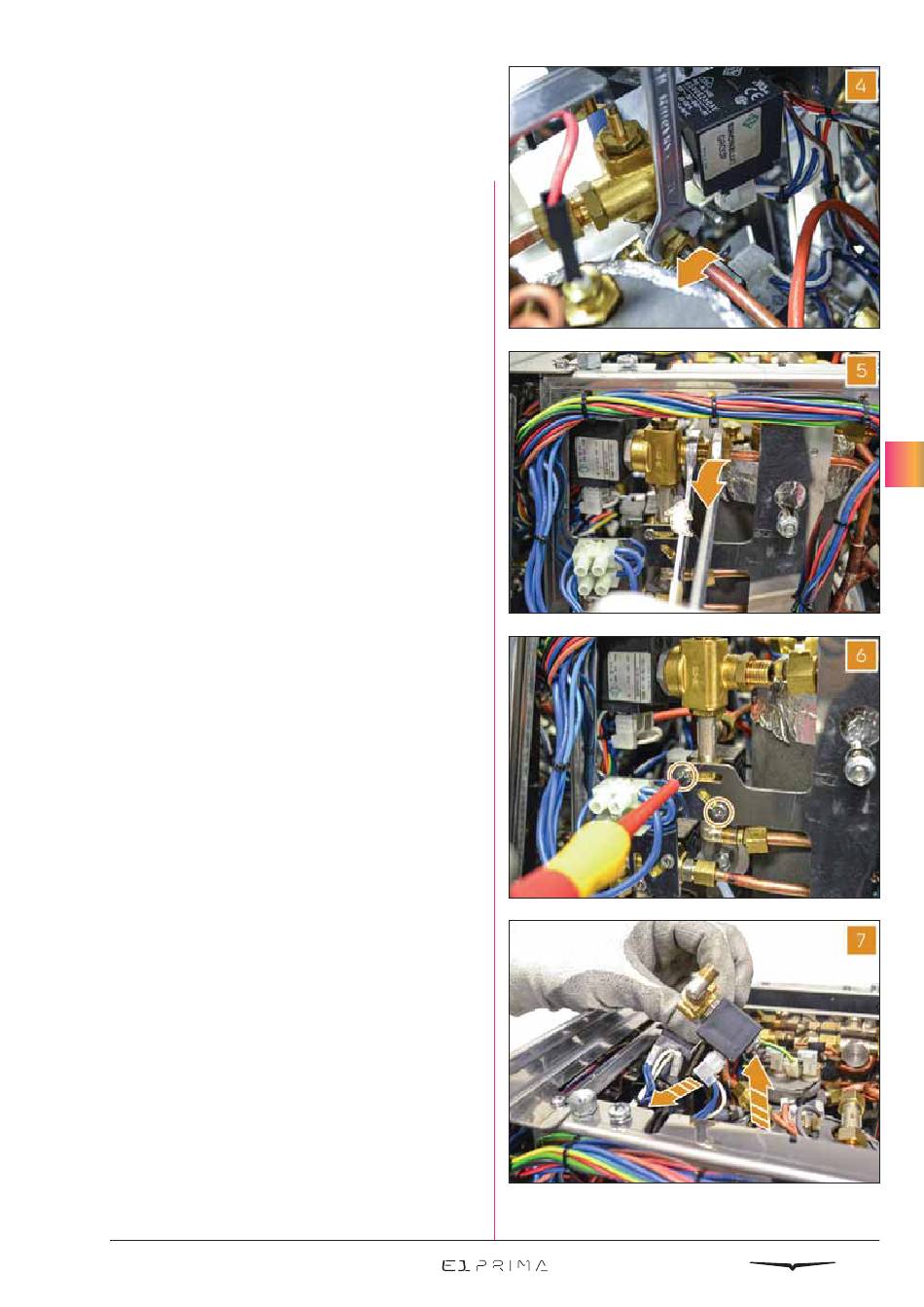

Utilizing a 13 mm wrench, remove the
4
outgoing pipe from the hot and cold wa-
ter valves.
Utilizing two 17 mm wrenches, remove the
5
inlet pipe from the cold water valve.
6
Utilizing a Philips screwdriver, remove the
two screws that keep the hot water valve.
Extract the valves from the upper side
7
and disconnect the cables.
