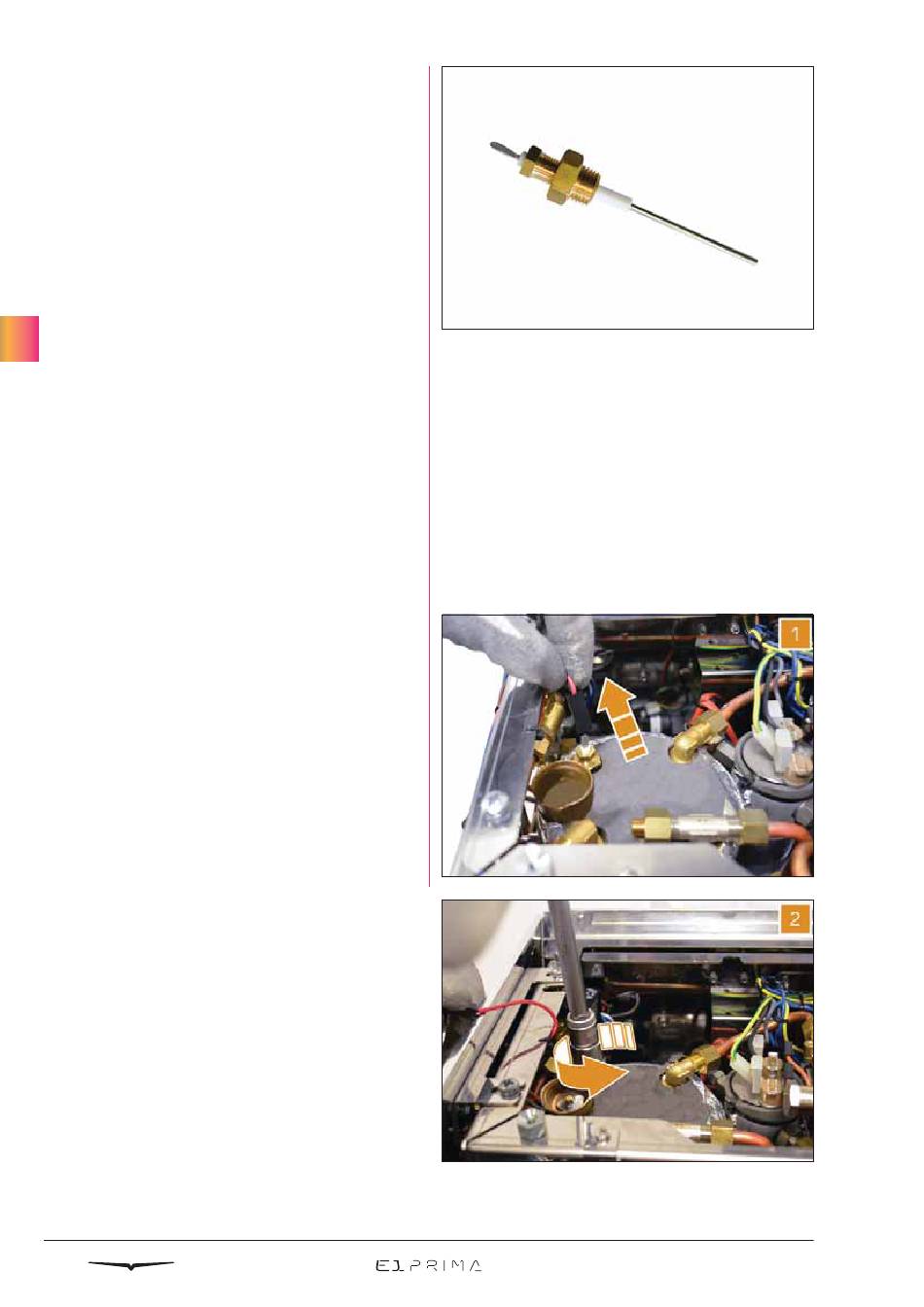

5. 6 T HE L E VEL PR OB E
The water inside the steam boiler is main-
tained at a constant level through the use of
a level probe inserted inside the boiler. This
probe is connected to the electronic control
unit that continuously polls the probe.
Being always exposed to high temperatures
and steam/water it is subject to encrusta-
tions which can inhibit operations.
05
WHEN TO INTERVENE
In case it is verified that there are no
•
problems upstream from the probe you
can easily access the component and
perform careful cleaning with abrasive or
descaling agents.
• Make sure that the Teflon coating of the
probe is not damaged. If it is, there would
be a loss of steam and electric insulation
and the probe should be replaced.
TO REMOVE THE PROBE
1 Simply disconnect the red wire.
Utilizing a 17 mm cup hex wrench, un-
2
screw the probe from its housing.
