2 . 5.2 DI R EC T C ON NE C TI ON
VE R SI O N
The machine is always supplied with a 1.5
02
meters long loading pipe (A) and with a 3/8
inch connection.
For the waterline, fitting is straight on one
side and with an entrance at 90° angle on
the other side. The pipe is provided with
tapered fittings therefore it is not necessary
to use Teflon tape on the fitting.

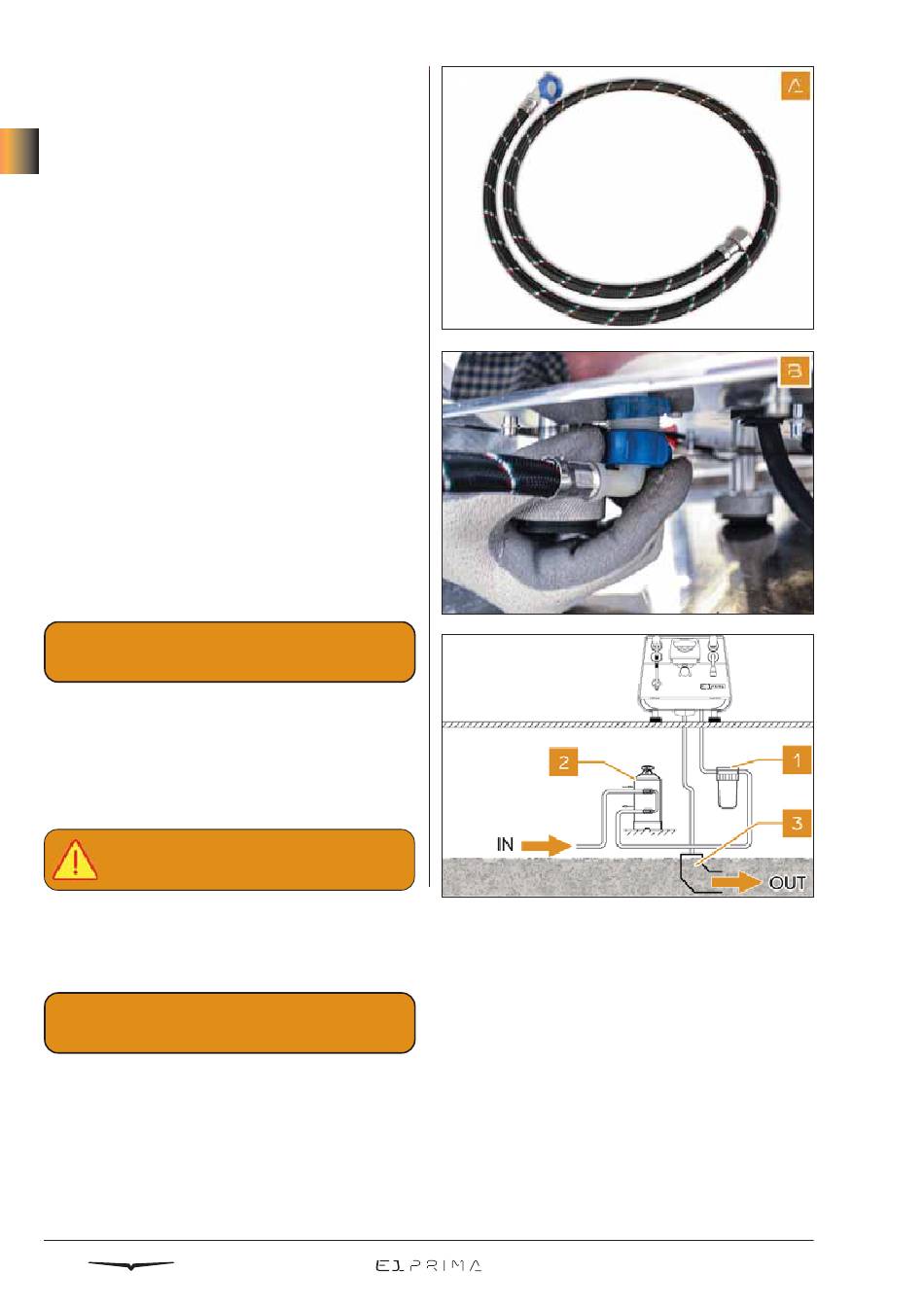

To connect the machine to the waterline,
connect the supplied pipe from the water
mains supply to the union under machine
(B).
It is advisable to install a softener (1)
and then a mesh filter (2) on the exter-
nal part of the plumbing system, during
preliminaries and after levelling the
machine.
Avoid throttling in the connecting pipes.
Assess that the drain pipe (3) is able to
eliminate waste.
For a correct functioning of the machine
the water works pressure must not
exceed 5 bars. Otherwise, install a
pressure reducer upstream of the sof-
tener; the internal diameter of water
entrance pipe must not be less than 6
mm (3/8").
24
NOTE
WARNING
NOTE
09 09 09
10 10
11 11
1 Softener
2 Mesh filter
3 Drain Ø 50 mm
