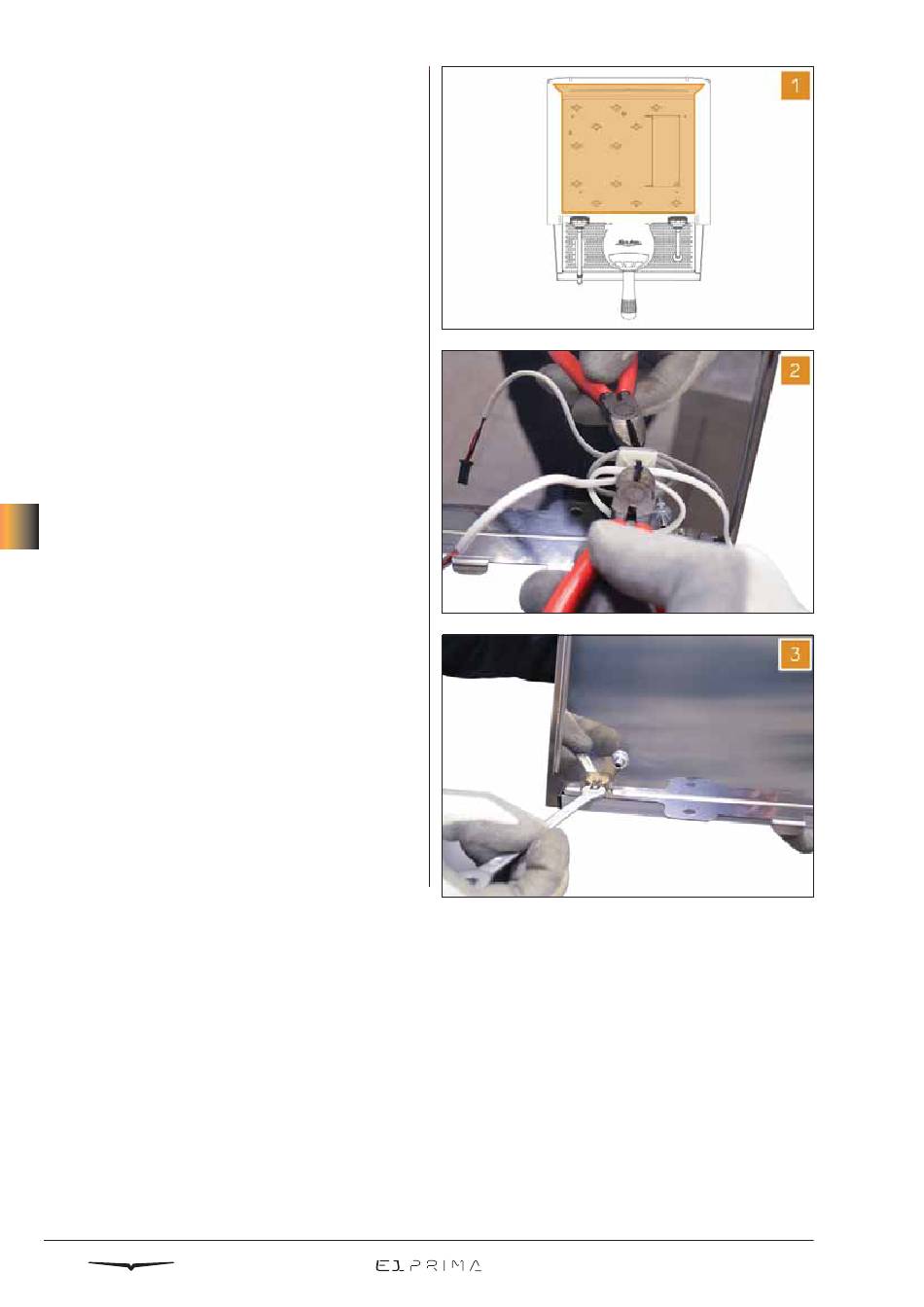

To replace the LED bar on the back side,
proceed as it follows:
Remove the rear panel, as described in
1
chapter 3.
Cut the clamp of the wire.
2
08
3
Utilizing a 5,5 mm wrench, remove the
two nuts fixing the bar.
