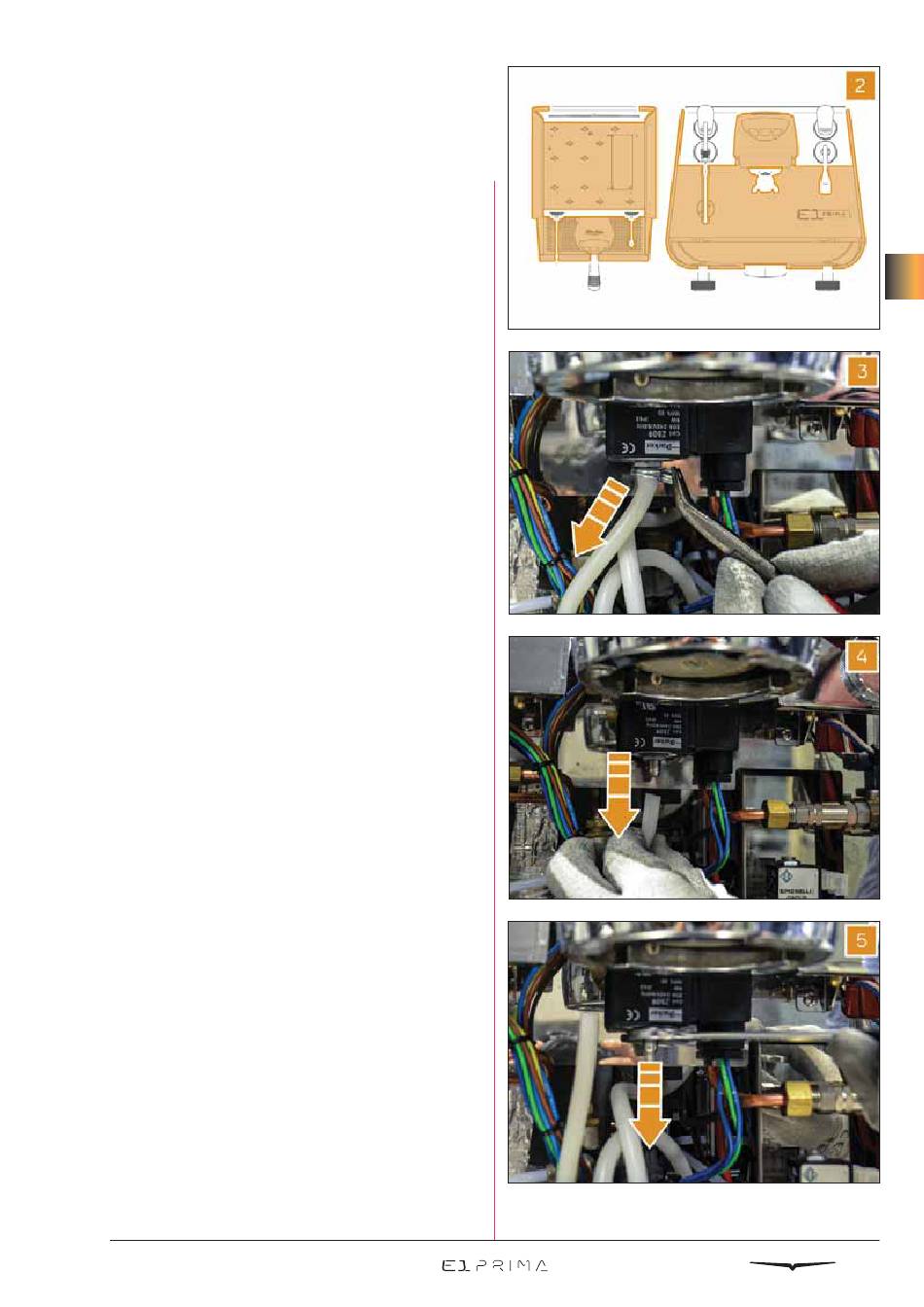

Remove the side panels, the drip tray, the
2
lower front panel and the group cover, as
explained in Chapter 3.
3 Utilizing plier, remove the clip keeping the
Teflon pipe of the third outlet.
4 Disconnect the Teflon pipe of the third
outlet.
Utilizing a 14 mm wrench, unscrew the fix-
5
ing nut of the coil.
