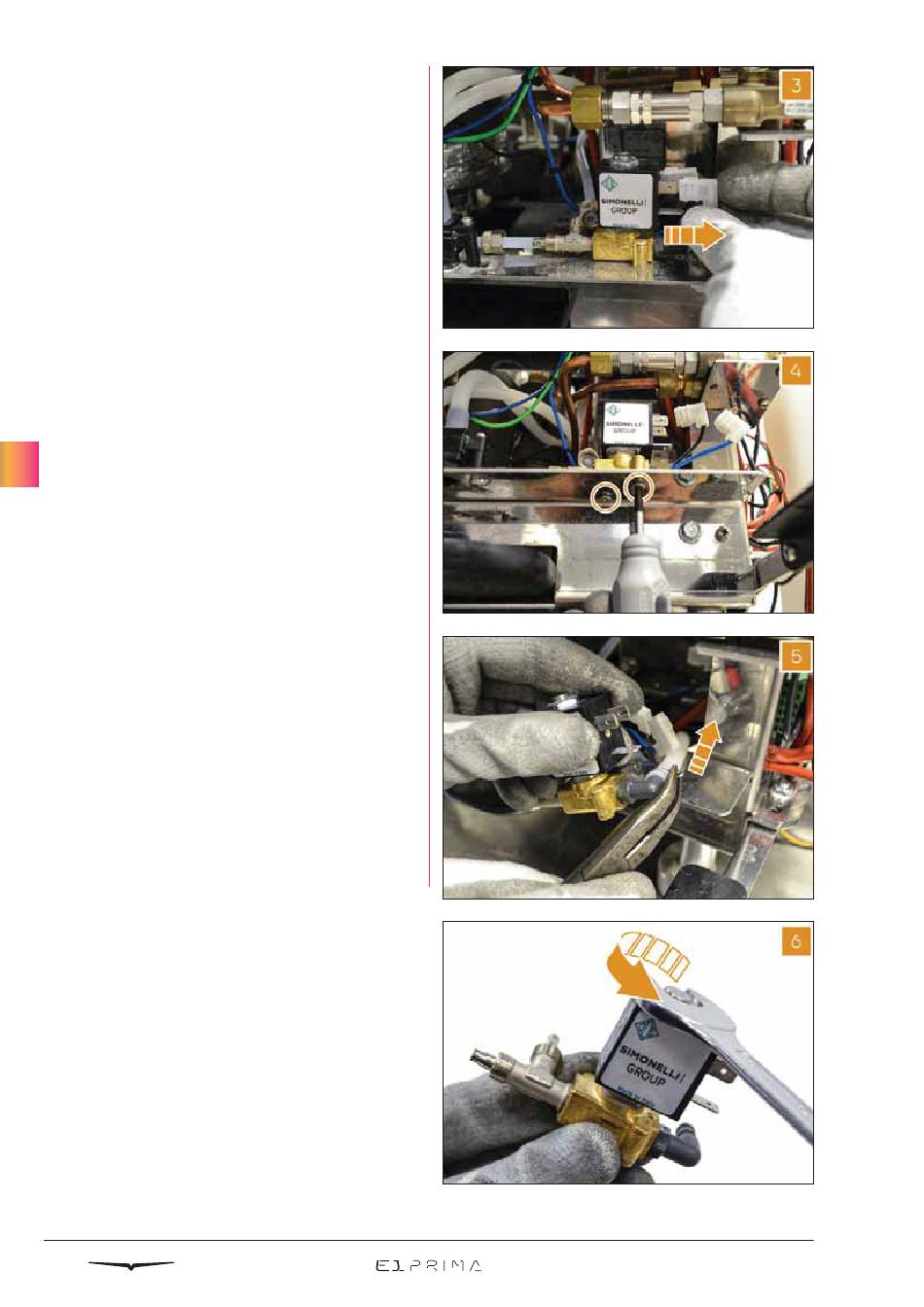

3 Disconnect the cables from the tank
valve.
Utilizing a small screwdriver, unscrew the
4
two screws that fix the valve to the frame.
07
Utilizing a plier, remove the clip and the
5
Teflon pipe of the third outlet.
Utilizing a vise and a 14 mm wrench, un-
6
screw the nut and remove the coil of the
valve.
If the inspection of the valve is needed,
7
follow the same procedure described in
paragraph 7.8.1 for the steam valve, by
utilizing a vise and a 14 mm wrench.
