5. 4 HE ATIN G EL EME N T
The 1600 W heating element is removable
and it is accessible from the bottom of the
machine.

5 . 4.1 TE ST T H E H E A T I NG E LEM ENT

To test the heating element, proceed as it
follows:

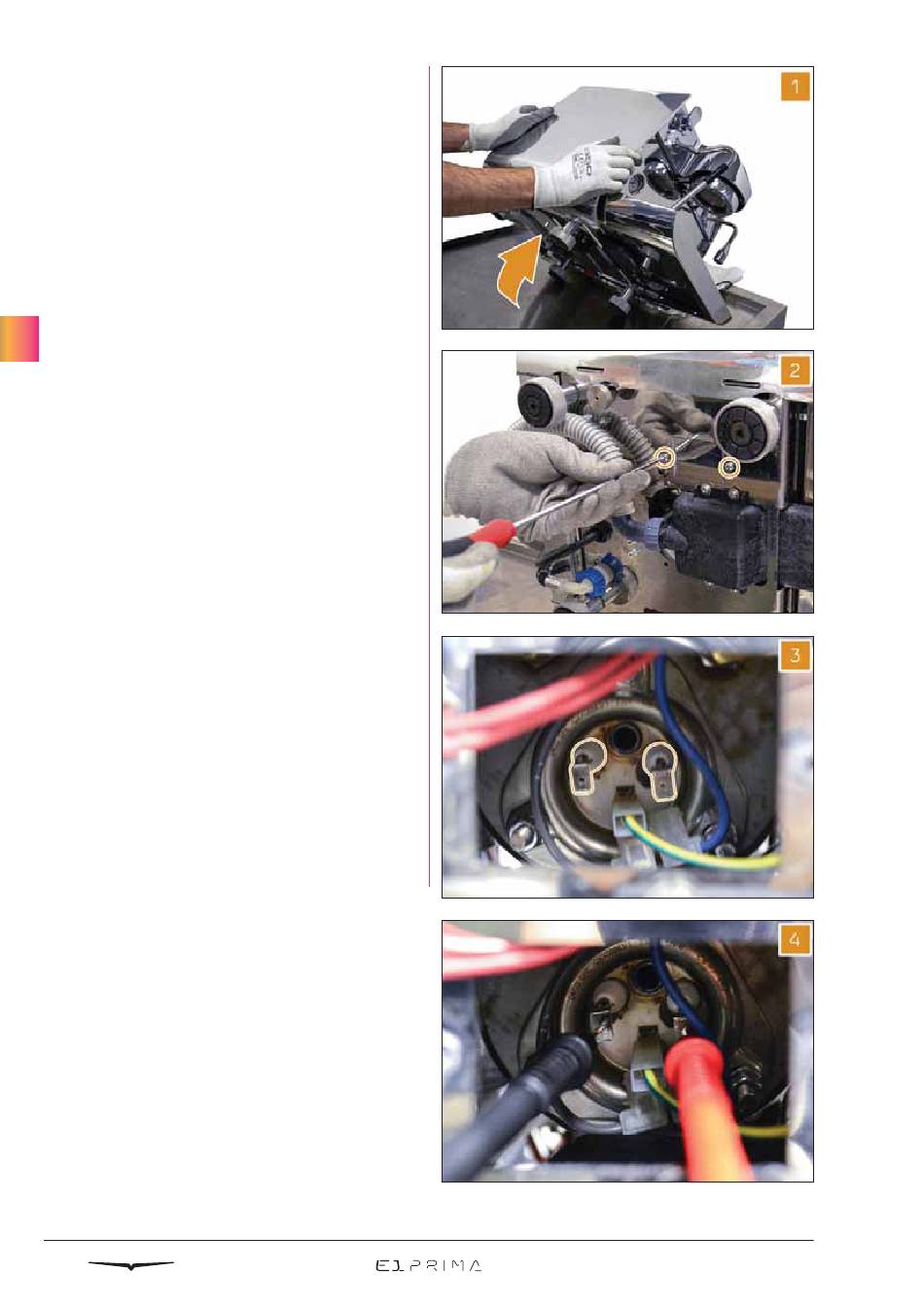

1 Rotate the machine on the right side, be-
ing careful to not damage it.
05
2 Utilizing a Philips screwdriver, remove the
two screws that keep the base cover.
3 Disconnect the electrical resistance ca-
bles. For easier access, it is useful to re-
move the safety thermo-fuse too.
Utilizing a tester, check the heating ele-
4
ment (value 34 ± 2 Ohm).
