HOIST AND COUNTERWEIGHT
7. Push in on the pins and turn to lock pin in the notch.
8. Insert the long pins into the bottom of the counterweight.
Push in on the pins and turn to lock pin in the notch.
9. The crane is now ready for operation with the
counterweight installed.
1
10
16
6, 8
6533-4
5-12
12
5
10
6, 8
9
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL

Stowing the Counterweight

1. Position the crane on a firm level surface. Fully extend
and set the outriggers.
2. Rotate the superstructure to align the counterweight with
the stowage area. Engaging the pin type turntable lock
will aid alignment.
13
11
1
6, 8
7
14
11
2, 3, 4
5

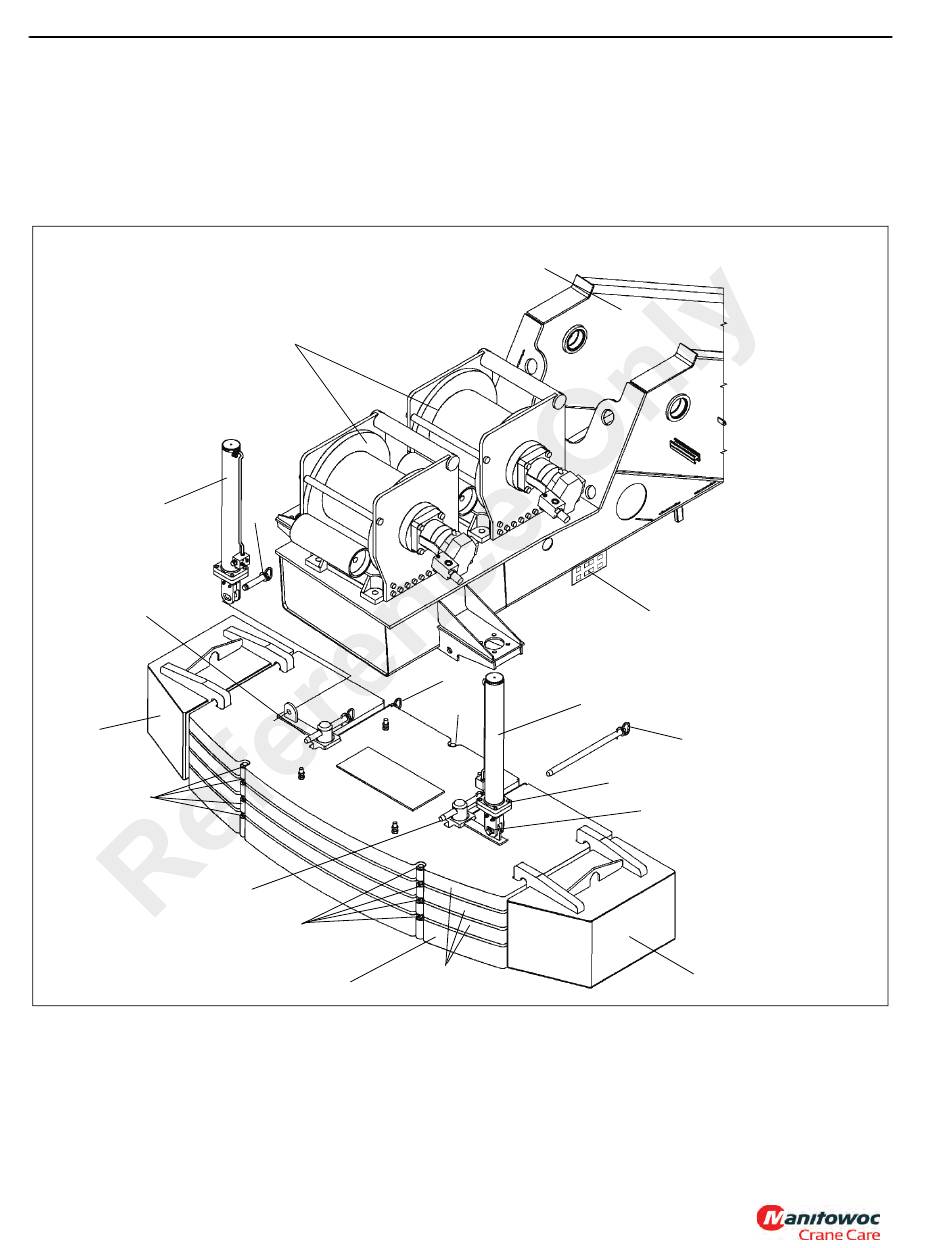

FIGURE 5-5
15
