Manitowoc Grove TMS800E Service And Maintenance Manual page 104

HYDRAULIC SYSTEM
Item
1 Barrel
2 Rod
3 Rod Head
4 Piston
5 Nut
6 O-ring
7 Seal Piston Ring
8 O-ring
9 Backup Ring
10 Seal Rod Ring
11 Wiper Ring
20 Seal Kit
2-68
1
2
Description
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
5
4
8
20
10
20
3
Inspection
1. Clean all parts with solvent and dry with compressed air.
Inspect for damaged or worn parts and replace as
required.
CAUTION
Clean all surfaces and remove all burrs and nicks before
installing new seals and rings. Replace all damaged or
worn parts.
2. Stone out minor blemishes and polish with fine crocus
cloth.
3. Clean with solvent and dry with compressed air any
parts that have been stoned and polished.
4. Inspect the barrel for scoring.
7
20
6
20
9
20
11
20
6845

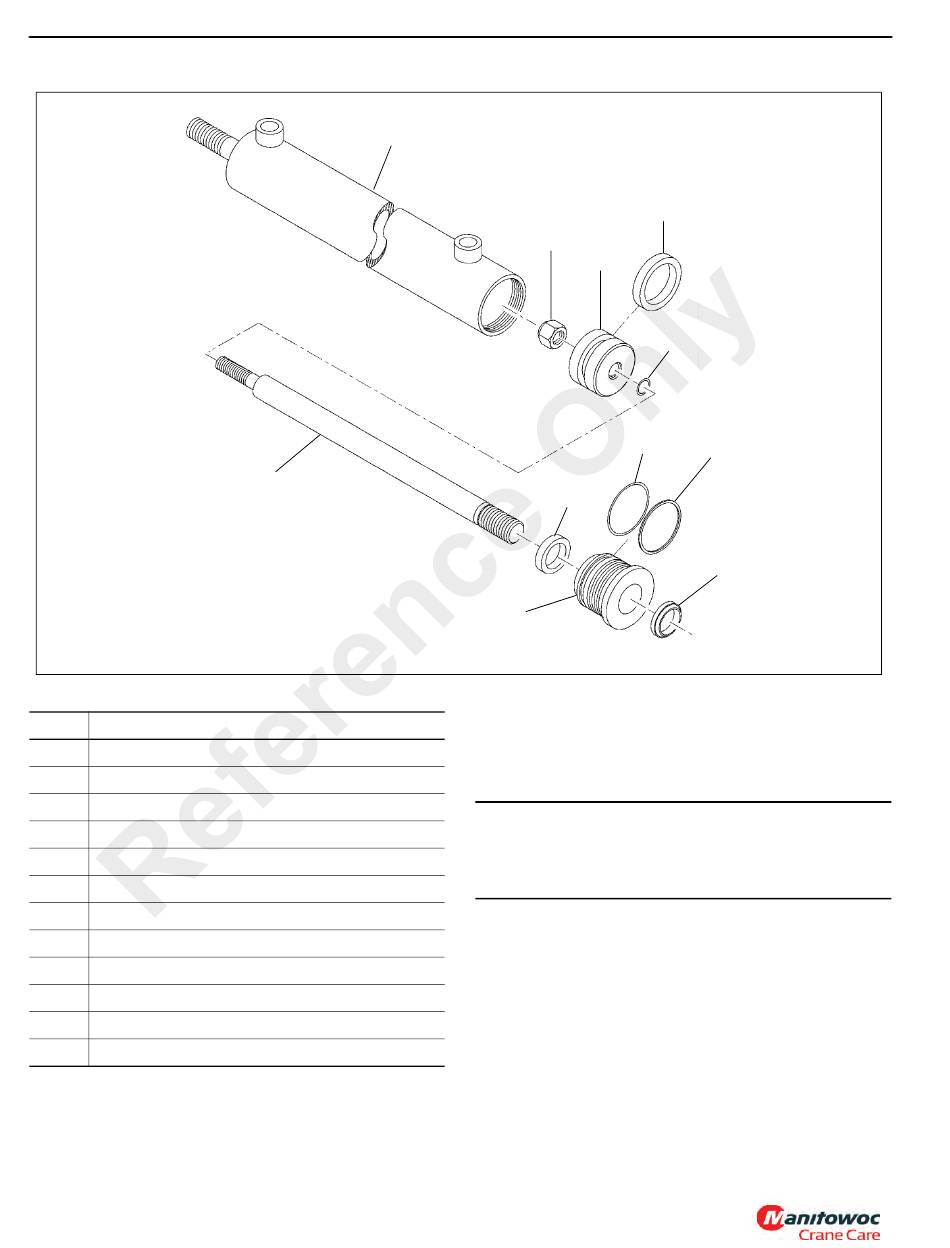

FIGURE 2-48
