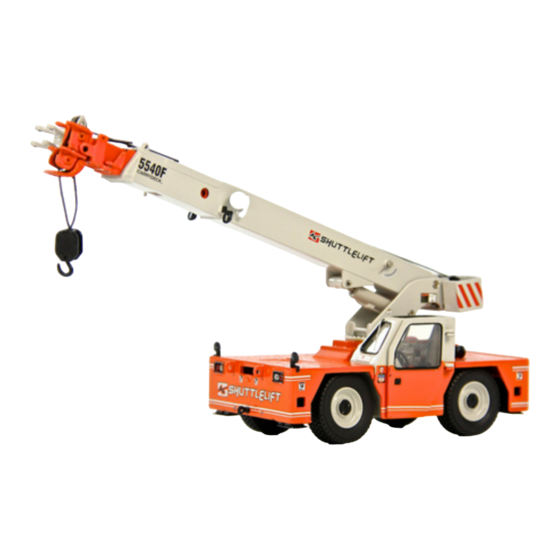

OPERATOR MANUAL
Supplement
Crane Warm-up Procedures
!
An untrained operator subjects himself and others to death or
serious injury. Do not operate this crane unless:
•
You are trained in the safe operation of this crane.
responsible for qualifying personnel.
•
You read, understand, and follow the safety and operating
recommendations contained in the crane manufacturer's manuals and
load charts, your employer's work rules, and applicable government
regulations.
•
You are sure that all safety signs, guards, and other safety features are
in place and in proper condition.
•
The Operator Manual and Load Chart are in the holder provided on
crane.
DANGER
Manitowoc is not
