TMS800E SERVICE MANUAL
7. Apply medium strength threadlocking compound (Spec.
6829012418) to the four M10 capscrews and to the M20
capscrew.
8. Attach the end plate to the lift cylinder upper pivot shaft
with the four M10 capscrews. Attach the end plate to the
boom with the M20 capscrew and washer. Torque the
8
1
Shim (3) shown on right side of cylinder. Often this shim
is installed on the left side of the cylinder.
Item
1 Locknut
2 Capscrew
3 Shim
4 Lift Cylinder
5 M20 Capscrew
6 Washer
GROVE
10
2
3
Description
Published 01-29-2014, Control # 496-00
M20 capscrew, refer to Fasteners and Torque Values,
page 1-13. Torque the M10 capscrews.
9. Remove the lifting and supporting devices from the
boom and lift cylinders. Activate the hydraulic system
and check the lift cylinder for proper operation and any
leaks. Repair any leaks.
9
4
Item
7 M10 Capscrew
8 Turntable
9 Boom
10 Lower Pivot Shaft
11 Upper Pivot Shaft
12 End Plate
BOOM
5
7
12
11
6607

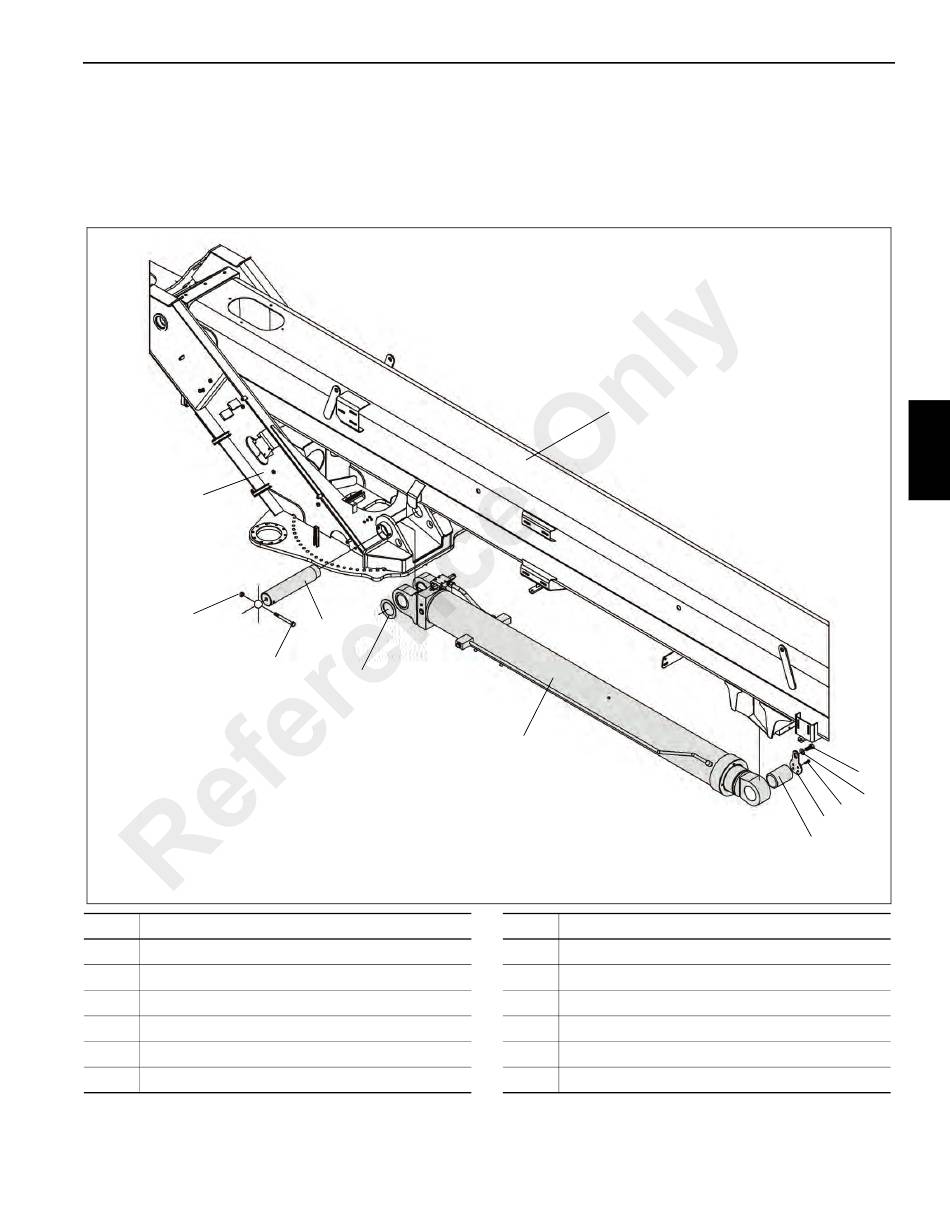

FIGURE 4-2
Description
4
6
4-23
