axles. Adjust drag links (Detail #5) to fit between the
relay arms (Details #8 and #9) and the axle steer arms.
5. Check the position of the pitman arm on the steering
gearbox and adjust if necessary. Attach drag link (Detail
#6) to the pitman and adjust its length as needed to fit
between the pitman arm and the front relay arm (Detail
#9) while keeping the pitman arm position fixed.
6. Remove the relay arm rig pins and secure all drag links.
7. Check that the rod ends on all drag links are within the
limits shown in Figure 8-8.
Final Adjustments
1. Inflate tires to the pressure specified on the tire inflation
chart located on the carrier cab door.
Steering
Gearbox
35.56 mm (1.4in)
Max. Exposed
Threads Allowed
Drag Link (Detail #7)
2. Start the engine and allow both air systems to reach full
system pressure. Ensure the crane is on a flat level
surface. Ensure the top surface of each saddle
assembly is parallel with the bottom surface of the
GROVE
Drag Link
(Detail #6)
Front Relay Arm
(Detail #9)
6.35mm (0.25in)
Align Clamp With
Slot In Tube
Published 01-29-2014, Control # 496-00
Front Relay Arm
Rig Pin
Drag Link
(Detail #7)
Drag Links (Detail #5)
43mm (1.71in) Max.
Exposed Threads
Allowed
Drag Links (Detail #5 & #6)
carrier frame by measuring the distance at the front and
rear of the saddle assemblies. If necessary, adjust the
height control valves to raise or lower the saddle
assemblies into a parallel position.
UNDERCARRIAGE
Rear Relay Arm
Rig Pin
Rear Relay Arm
(Detail #8)
6.35mm (0.25in)
Align Clamp With
Slot In Tube

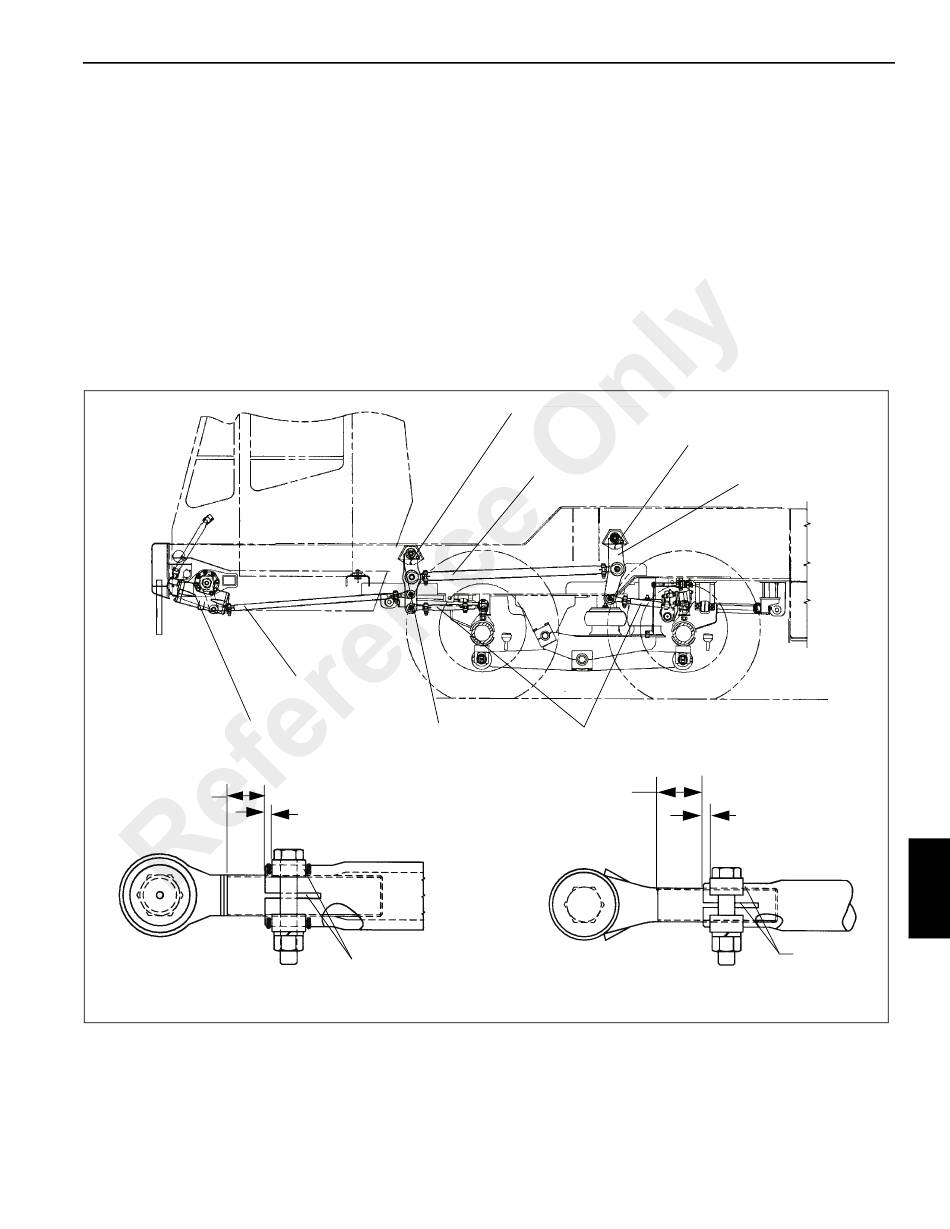

FIGURE 8-8
