POWER TRAIN
8
Item Description
1 Radiator/Charge Air Cooler
2 Recovery Tank
3 Drain Cock
4 Left Hand Baffle
5 Right Hand Baffle
6 Top Radiator Tube (QSM)
7 Bottom Radiator Tube (QSM)
8 Cold CAC Tube (QSM)
9 Hot CAC Tube (QSM)
10 Radiator Mount
11 Fan Guards
12 Coolant Recovery Hose
13 Vent Hoses
7-28
5
4
1
10

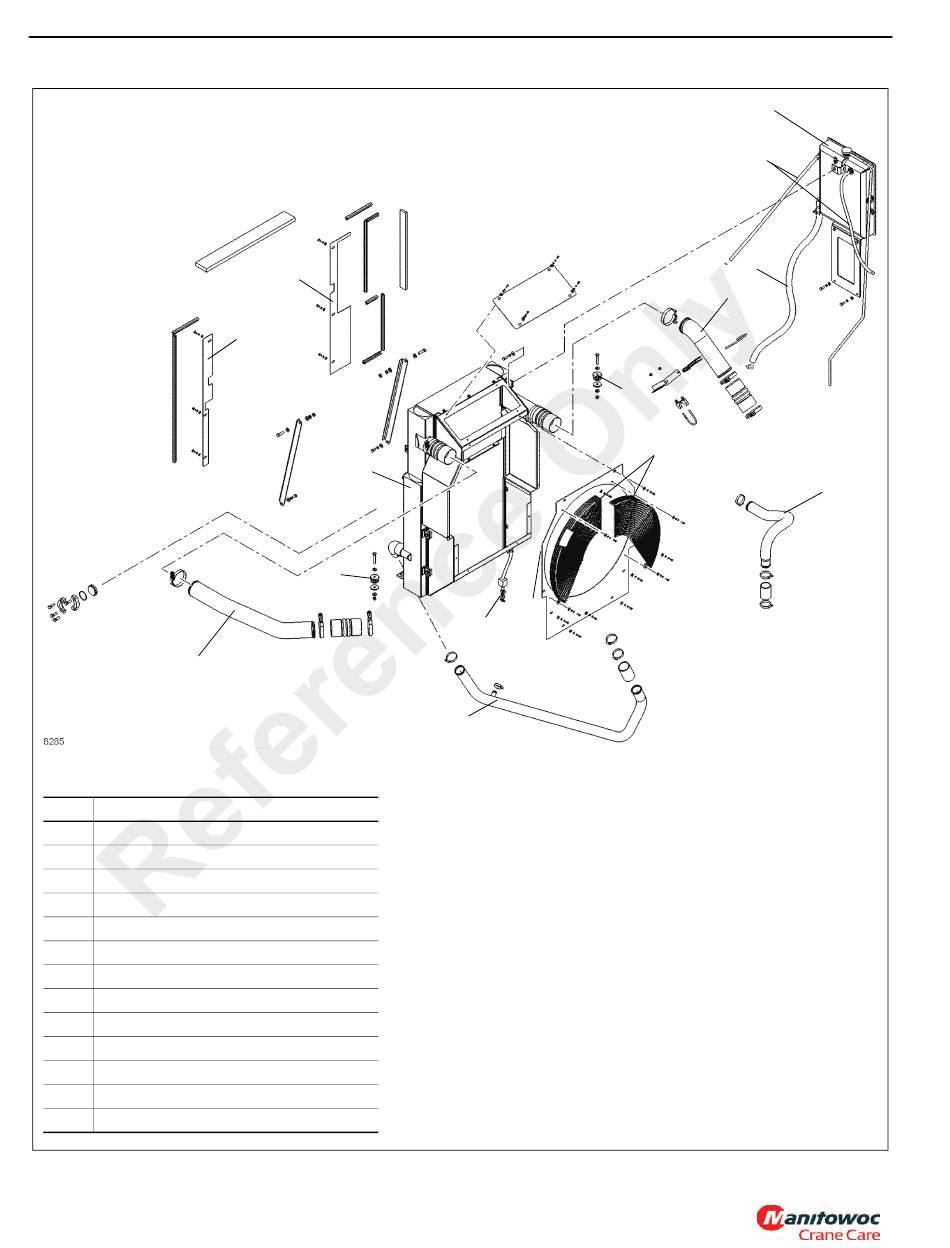

QSM Engine Radiator/Charge Air Cooler Assembly
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
10
7
3
7
2
13
12
9
11
6
FIGURE 7-14
