UNDERCARRIAGE
2
6
1
7
Item
1 Brake Air Chamber
2 Axle No. 3
3 Torque Rod
4 Drive Shaft
5 Stabilizer Beam
6 Differential
7 Mounting Bracket
8-30
3
5

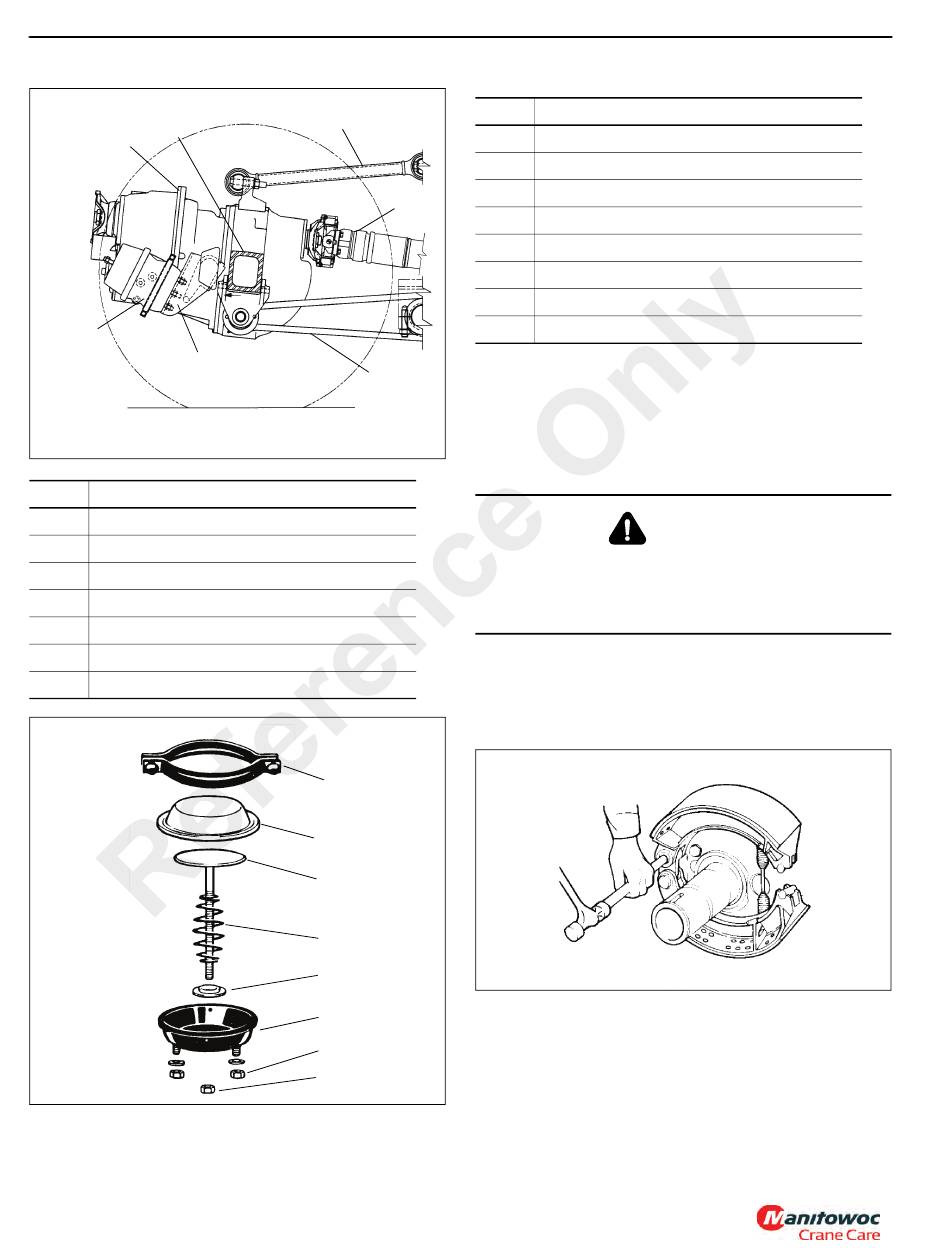

FIGURE 8-29
Description
1
2
3
4
5
6
7
8
FIGURE 8-30
Published 01-29-2014, Control # 496-00
Item
1 Clamp
2 Diaphragm
3 Push Rod
4
4 Spring
5 Shield
6 Cover
7 Mounting Nut
8 Jam Nut
3. Position the diaphragm over the push rod (see
Figure 8-30).
4. Push the lower cover assembly into the spring brake
chamber and secure with the clamp.
Rear Brake Shoe Removal
Use a brass or synthetic mallet for assembly and
disassembly procedures. Do not hit steel parts with a steel
hammer. Pieces of a part can break off. Serious personal
injury and damage to components can result.
1. Remove the anchor pin snap ring, washer, retainer, felts,
seals or capscrews as required.
2. Use a brass drift to remove the top anchor pin
(Figure 8-31).
3. Rotate the top shoe to release the tension on the brake
shoe return spring. Remove the shoe (Figure 8-32).
