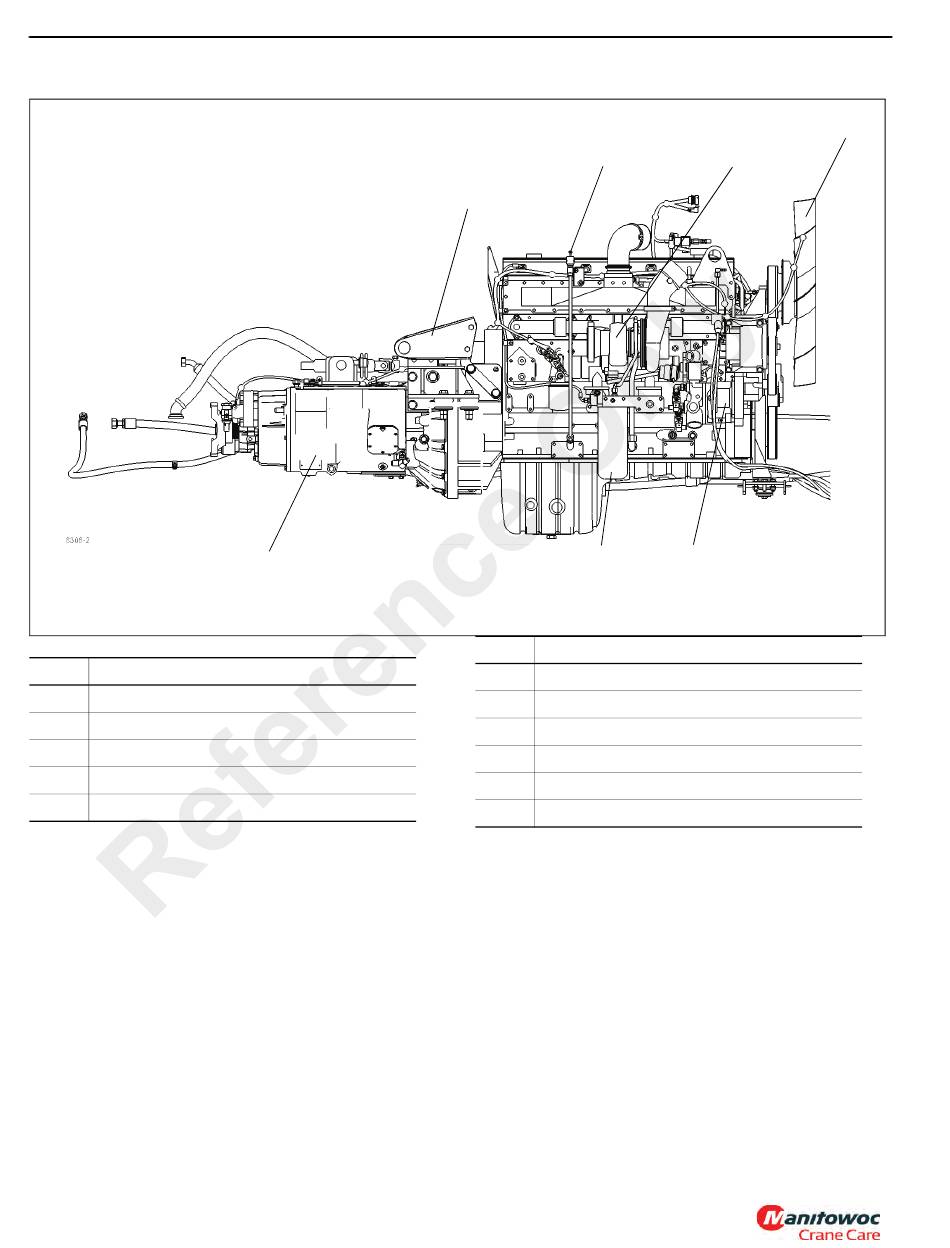

POWER TRAIN
Item
1
Fan
2
Turbocharger
3
Engine Oil DIpstick
4
Transmission
5
Rear Engine Lift Bracket
7-4
4
Description
Published 01-29-2014, Control # 496-00
5
QSM Engine
Item
6
Starter
7
Alternator
8
Oil Filter
9
Air Compressor
10
Piston Pump
11
IMS (Internal Magnetic Solenoid)
TMS800E SERVICE MANUAL
3
2
8
7
FIGURE 7-1 continued
