BOOM
AUXILIARY BOOM NOSE
Description

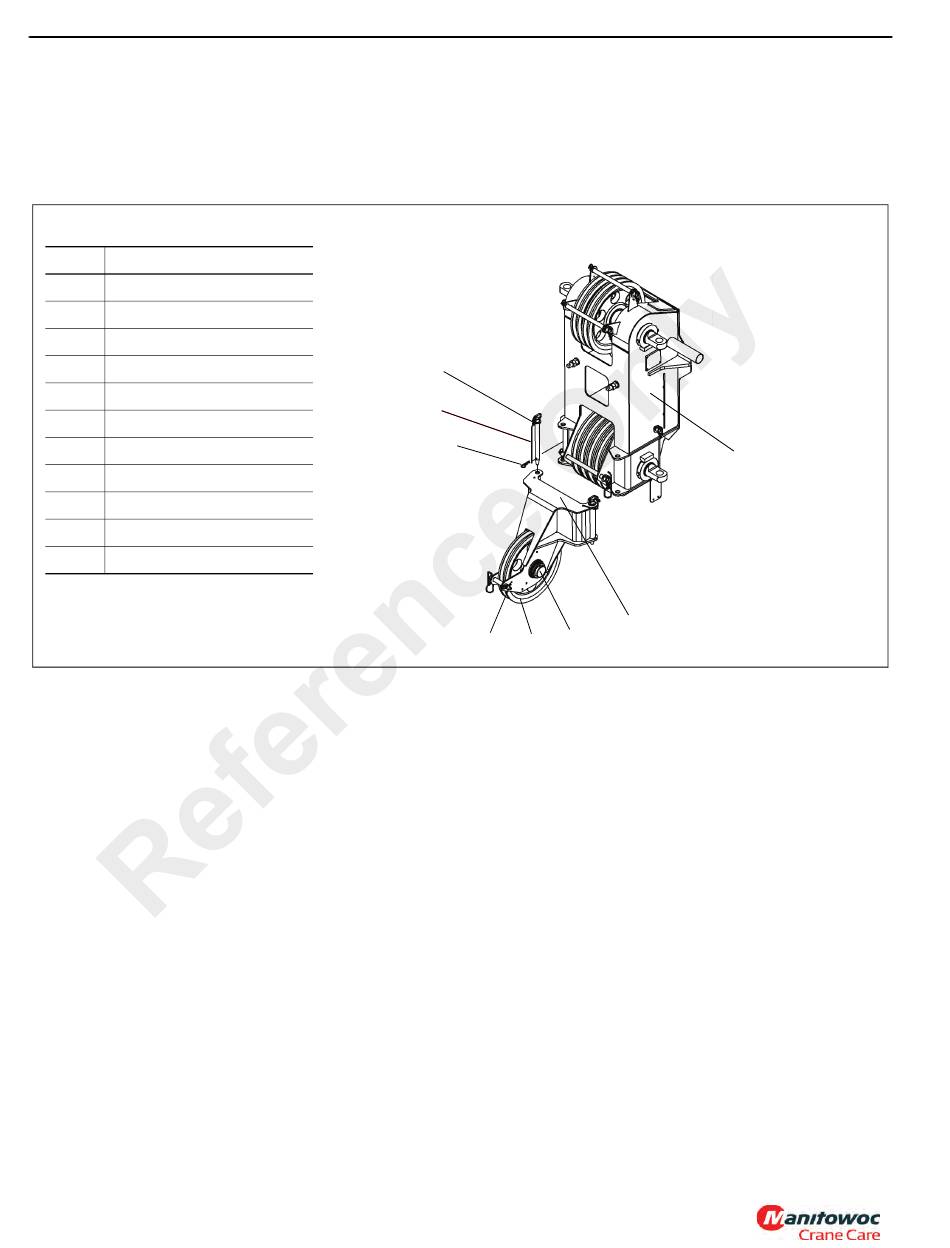

The auxiliary boom nose (rooster sheave) (see Figure 4-3) is
used on the boom to simplify single part and maximum part
Item
Description
1
Auxiliary Boom Nose
2
Sheave Assembly
3
End Cap
4
Screw
5
Hitch Pin
6
Hitch Pin Clip
7
Lock Pin
8
Chain
9
Cotter Pin
10
S-Hook
11
Main Boom Nose
4-24
cable usage. The rooster sheave is installed on the main
boom nose and is secured by attach pins that pass through
the rooster sheave and the main boom nose.
7
8, 9, 10
6
5
2
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
11
6462-1
1
3, 4
FIGURE 4-3
