HYDRAULIC SYSTEM
Procedure J- For Setting Threshold on
Electronic Controllers
1. Attach test fitting and pressure gage in the pilot end caps
one at a time at GPA for Main Hoist Up, GPB for Aux
Hoist Up, GPC Tele Retract, GPD Lift Down, GPA, and
GPB Swing Left and Right.
2. Attach laptop to diagnostic connector in cab and bring

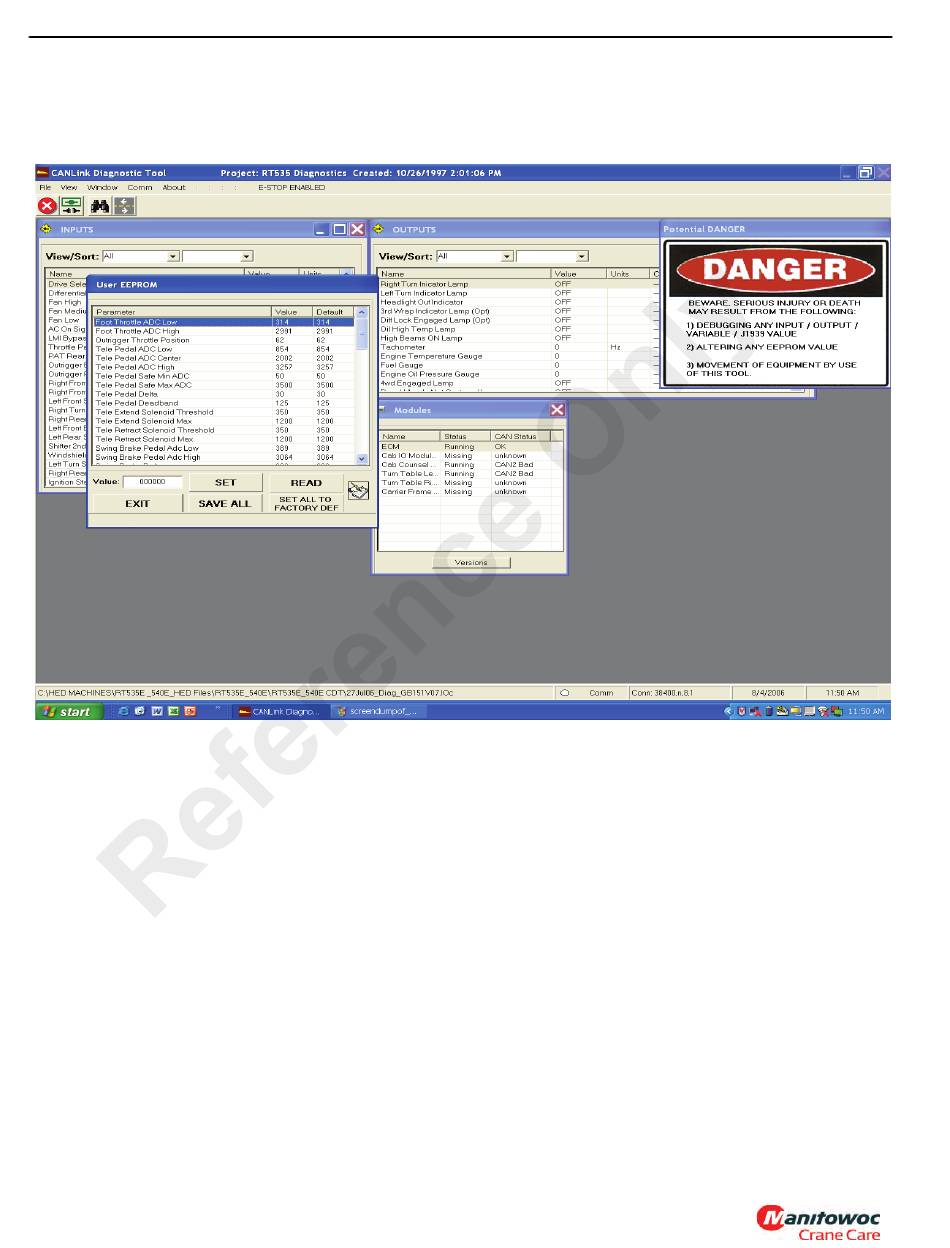

up the EPROM settings (see screen above, for an
example). Arrange windows so you can view the
EPROM Window and Output Window values.
3. Start engine and run at idle RPMs; make sure to lower
left armrest.
4. Start with GPA Main Hoist Up. View the pressure gauge
and stroke the joystick just off center for Main Hoist in
the up position. Watch the pressure gauge; stroke it until
it reaches about 6.89 bar (100 psi), hold it there, and
look at the value for Main Hoist Up in the Output
Window. If the pressure gauge reading goes above 6.89
bar (100 psi), back the value down. To change the value,
double-click the value you want to change in the
EPROM Window and the value window will turn blue.
2-28
Enter the value for the Main Hoist Up and select SET
and change the Main Hoist Down value with the same
setting. Repeat again and make sure it does not exceed
6.89 bar (100 psi). Do not change the default setting for
the MAX. Repeat this process for ports GPB, GPC,
GPD, and GPA and GPB Swing Left and Right, and
enter values to respective functions. Make sure to select
SAVE ALL after completing entering the value settings.
5. After setting all the functions and selecting SAVE ALL,
select the File Down Load button. Save the file in a
folder under the model designation (TMS800E13).
Name the file as follows:
(Sales order number_Date). Sample: (123456_2013aug17)
K. Procedure for Setting Threshold and Max
on Swing Brake Pedal
1. Attach laptop to diagnostic connector in cab and bring
up the EPROM settings (shown in the Figure in section
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
