BOOM

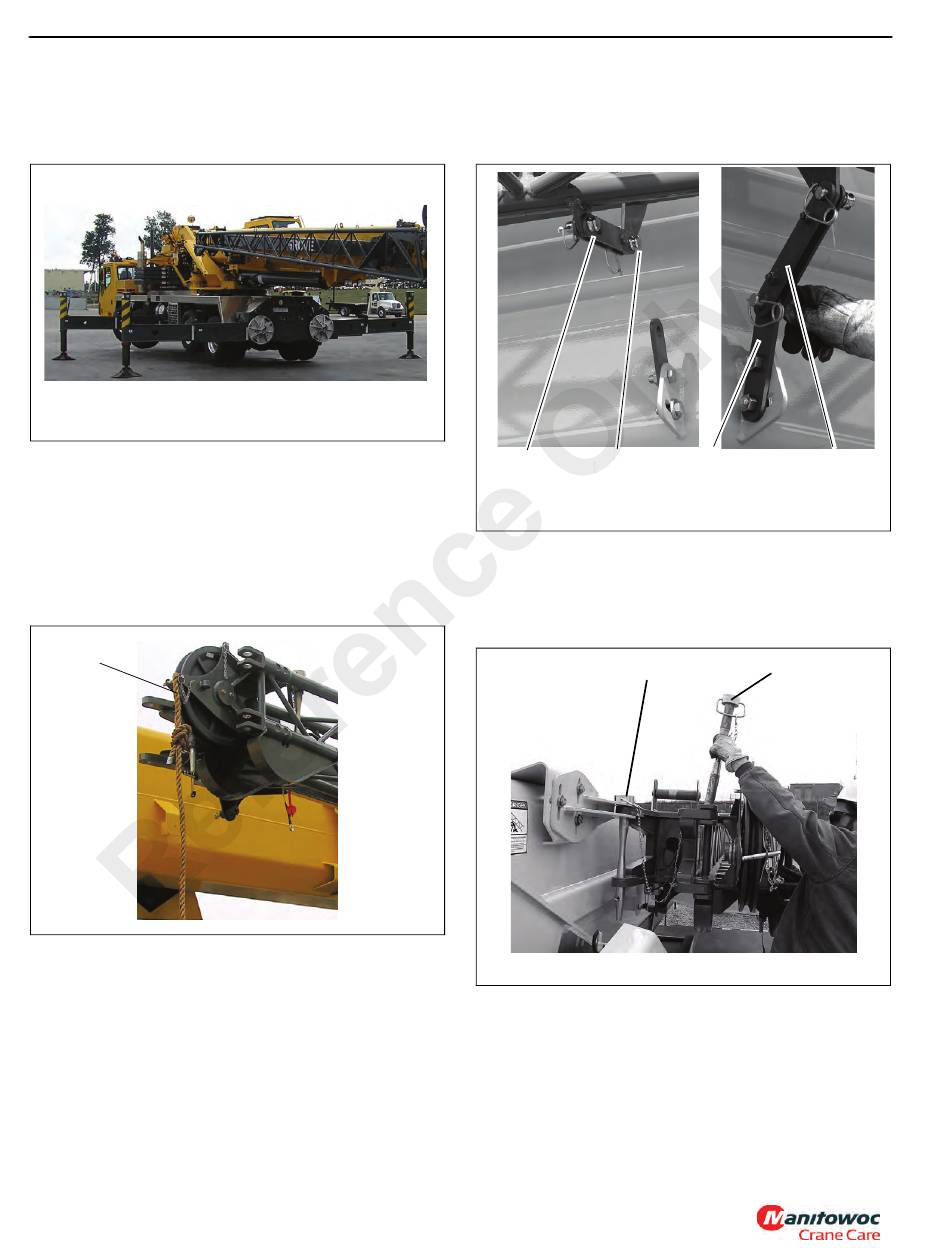

2. Crane should be set up on outriggers using normal
setup procedures Figure 4-6. Refer to Section 3 -
OPERATING CONTROLS and PROCEDURES, in the
Operator Manual.
6645-1
a. Fully retract boom.
b. Lower boom to horizontal for erecting over the front
of the crane.
NOTE: Tag line is used to control movement of the jib
during erecting procedure.
3. Attach tag line to tip of extension Figure 4-7 and to the
superstructure.
Tag Line
(Rope)
6645-2
NOTE: If erecting the 10 m (33 ft) section without the 7 m
(23 ft) section, perform steps 4 and 5, otherwise
proceed to step 6.
4-28
4. If not using the bi-fold 7 m (23 ft) section, remove pin
from the locking bar. Move locking bar to the base
section attachment bar and install pin. Secure with
retaining pin Figure 4-8.
FIGURE 4-6
Locking
Bar
6642-8
5. If not using the bi-fold 7 m (23 ft) section, remove the
retainer clip and bi-fold stowage pin at the base section
connection Figure 4-9. Stow pin on bi-fold. Leave the pin
attaching the 7 m (23 ft) section to the base section to
retain the 7 m (23 ft) section Figure 4-9.
.
FIGURE 4-7
6642-41
NOTE:
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
Base Section
Pin
Locking Bar
6642-9
Pin Stays Installed
Steps 6, 7 and 8 apply when erecting the 7 m (23 ft)
section together with the 10 m (33 ft) section. If not
using the bi-fold 7 m (23 ft) section, proceed to step
11.
Locking
Bar
FIGURE 4-8
Remove Pin
FIGURE 4-9
