POWER TRAIN

QSM ENGINE MUFFLER

Removal

Do not touch muffler or exhaust parts until they are at
ambient temperature. Severe burning may result.
1. Remove capscrews, lockwashers, flat washers, and
nuts to free muffler guard. Remove muffler guard.
2. Remove muffler cover and exhaust cover.
Item
1 Muffler
2 Tube, Spacer
3 Exhaust Stack
7-18
CAUTION
Description
Published 01-29-2014, Control # 496-00
TMS800E SERVICE MANUAL
3. Remove muffler clamp. Remove exhaust connector
assembly.
4. Remove muffler from mounting bands.
5. Remove capscrews, lock washers, flat washers, and
nuts to free muffler mounting bands from muffler mount.
Item
4 Mounting Band
5 Capscrew
6 5" Slip Exhaust Connector Assembly

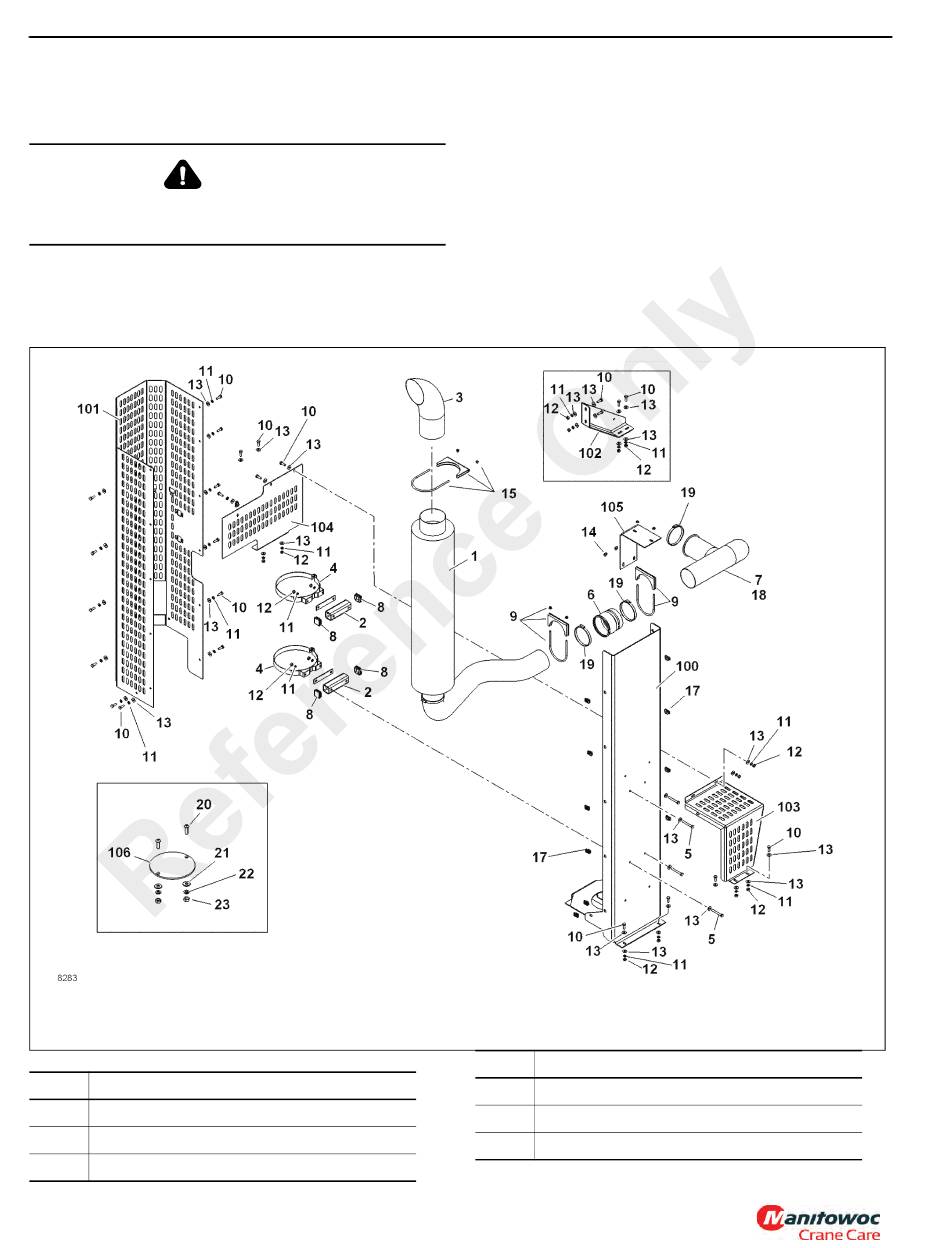

FIGURE 7-12
Description
