TMS800E SERVICE MANUAL

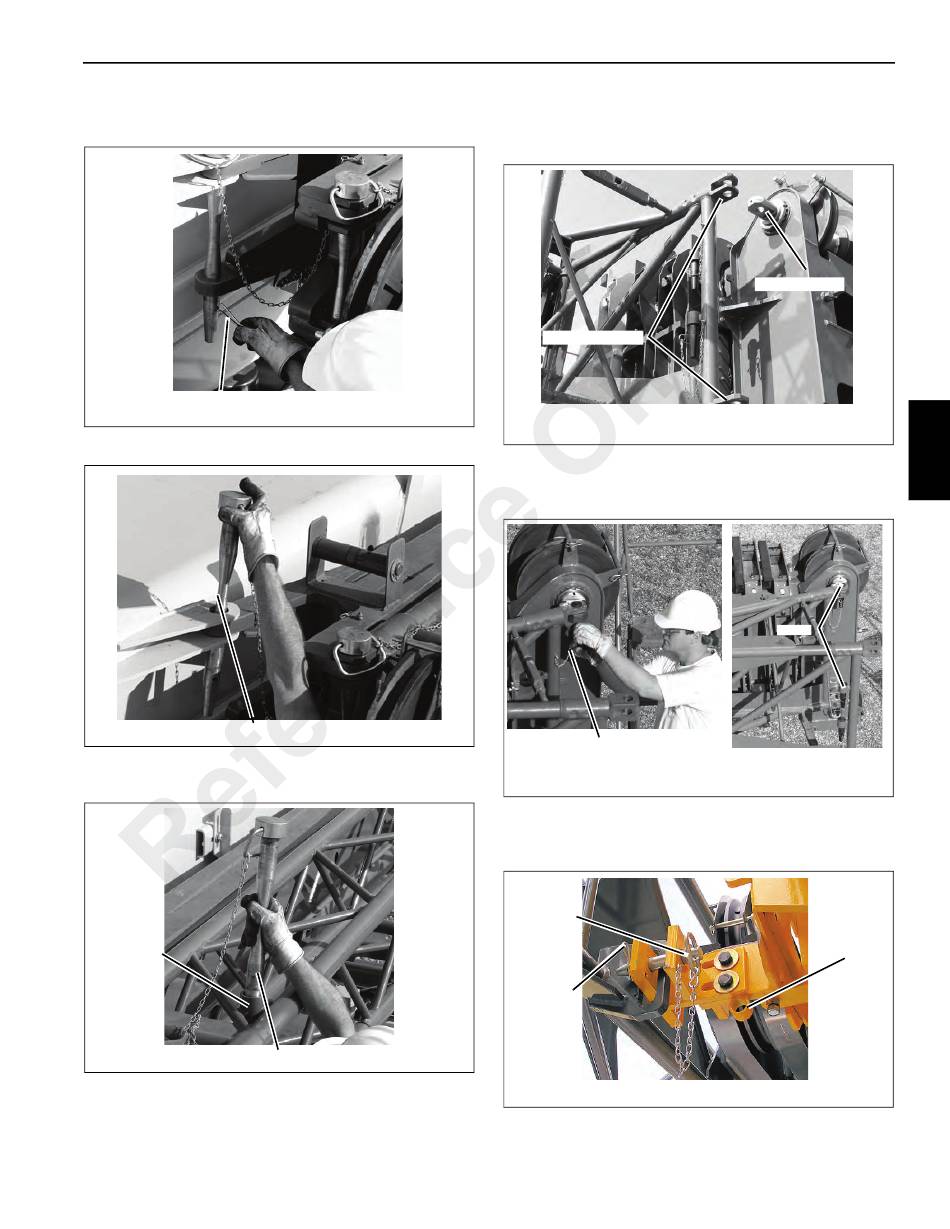

6. Remove retainer clip from the pin attaching the 7 m (23
ft) section to the base section Figure 4-10.
.
Retainer Clip
6642-5
7. Remove the stowage pin Figure 4-11.
6642-6
Stowage Pin
8. Stow the pin in pin holder provided on the swingaway
extension (Figure 4-12).
Pin
Holder
6642-7
Stowage Pin
9. Remove the jib stowage controller from behind the seat
in the superstructure cab.
GROVE
10. Use the controller to pivot the jib so that lugs on jib align
with the holes in the lugs on the boom nose
(Figure 4-13).
Extension Lugs
FIGURE 4-10
6642-11
11. Remove pins stowed in extension and install in holes
(right side of boom nose) and secure with retainer clips
Figure 4-14.
FIGURE 4-11
12. Remove the clip pin from the stowage pin at the front
mount. Unpin the stowage pin and store in holder
(Figure 4-15).
Stowage
Pin
Clip Pin
FIGURE 4-12
6642-46
Published 01-29-2014, Control # 496-00
Retainer Clip
6642-13
BOOM
Boom Lug
FIGURE 4-13
4
Pins
FIGURE 4-14
Pin
Holder
FIGURE 4-15
4-29
