TMS800E SERVICE MANUAL SWING SYSTEM
lock assembly completely out of the gear teeth when the foot
pedal is up. Verify the linkage can put the blade of the swing
lock assembly as far as possible between the gear teeth
when the foot pedal is down. Verify all attaching hardware is
Swing Lock
secure and undamaged. Make adjustments as needed.
Assembly Blade

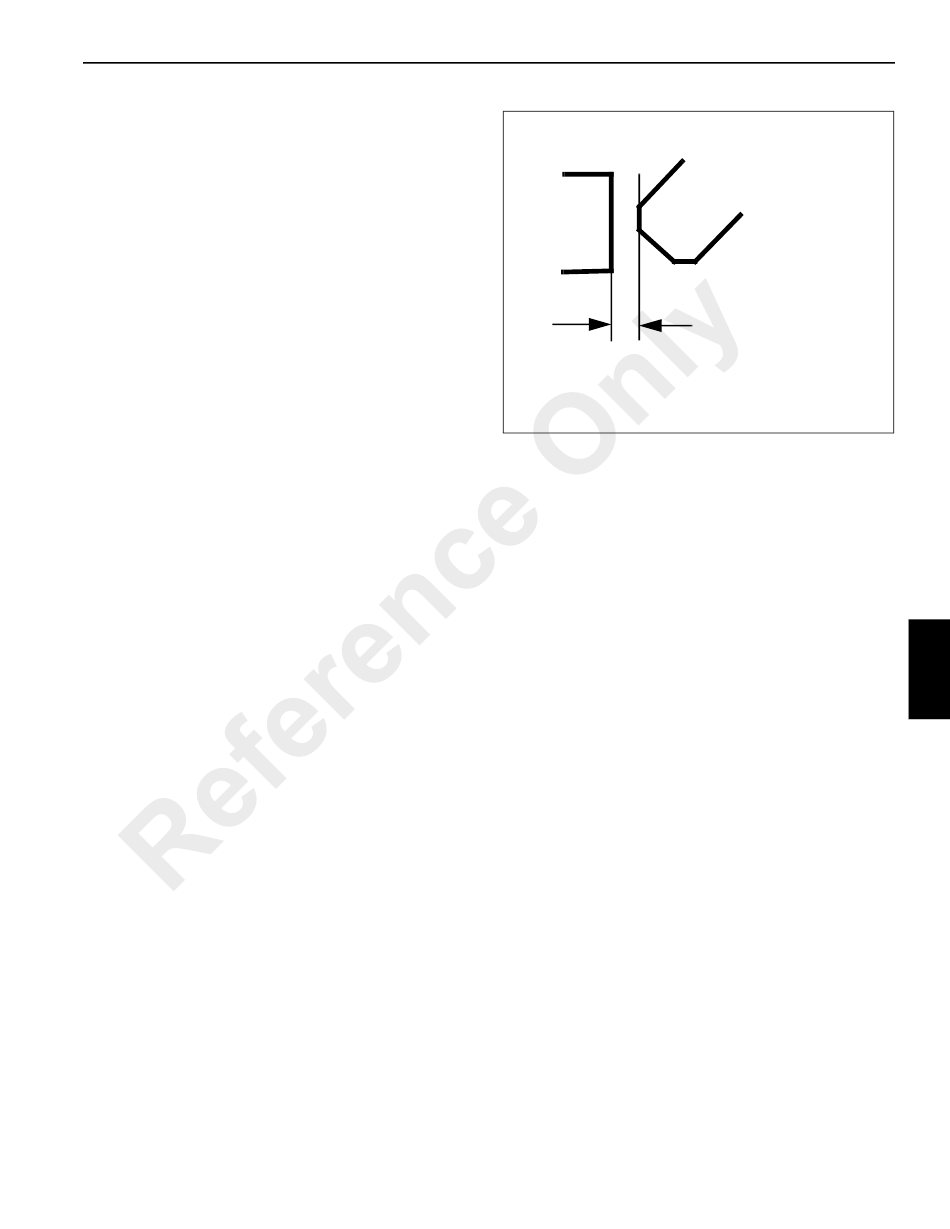

When the foot pedal is fully up, the top diagonal surface of
Gear Tooth
the blade of the swing lock assembly (the beveled surface
(typical)
from the blade's top horizontal surface to its "ax blade"
vertical surface should be 1.45 cm (0.57 in) from the tips of
the gear teeth.
If the swing lock assembly is damaged, install a replacement.
Align the blade of the swing lock assembly so it will fall
between gear teeth. Use the shim and the related attaching
hardware (two 5/16-18 screws and 5/16 inside diameter
7069
lockwashers) to ensure the swing lock assembly cannot
1.45 cm
move side to side, and can lock up the superstructure.
(0.57 in)
Torque the four 3/4-10 mounting bolts to their specified
FIGURE 6-8
torque found in Fasteners and Torque Values, page 1-13.
