TMS800E SERVICE MANUAL
23
24
Item Description
1 Pilot Supply Relief Valve (450 psi)
2 Gauge Port (QP4A)
3 Swing Brake Relief Valve (250 psi)
4 Solenoid Valve (Swing Brake)
5 Solenoid Valve (Swing Brake Release)
6 Solenoid Valve (Pilot Supply)
7 Gauge Port (GP1)
8 Pilot Supply Port (PS)
9 Plugged (D2)
10 Port 1B (Swing Left)
11 Port 1A (Swing Right)
12 Swing Directional Valve
GROVE
SBR
SBS
IN
D5
TANK
Bottom View
Item
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Published 01-29-2014, Control # 496-00
HYDRAULIC SYSTEM
21
20
GP3
GPA
26
6609-6
22

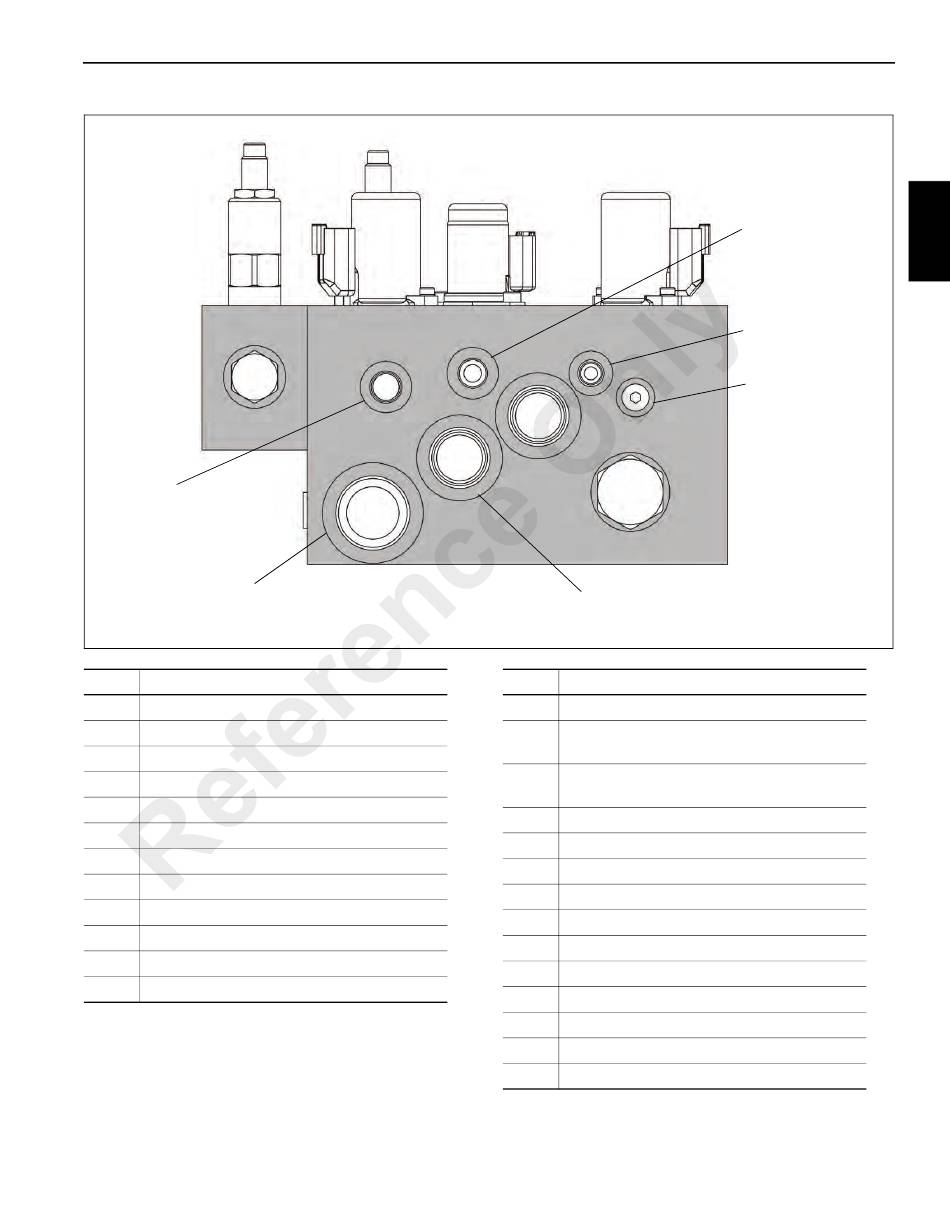

FIGURE 2-33 continued
Description
Drain Port D4 (Swing Motor Pilot Supply)
Drain Port D6 (Hoist/Tele/Lift Valve Pilot
Supply)
Drain Port D7 (Swing Brake Lift Cylinder
Pilot)
Drain Port D3 (Plugged)
Gauge Port (GP2)
Gauge Port (QP4B) (Not Shown)
Drain Port D1
Gauge Port (GP3)
Swing Brake Release Port (SBR)
Drain Port D5
Swing Brake Supply Port (SBS)
Tank Port
Gauge Port (GPB)
Gauge Port (GPA)
2
