Manitowoc Grove TMS800E Service And Maintenance Manual page 53

TMS800E SERVICE MANUAL
1. Remove carrier parts as needed to gain access to the
pump. It is bolted to the engine.
2. Tag the supply lines to the pump and tag the distribution
lines from the pump, then disconnect them. Cap or plug
the lines and ports.
3. Remove nut and lockwasher to free the No. 2 pump from
the pump support plate. As needed, loosen or remove
2

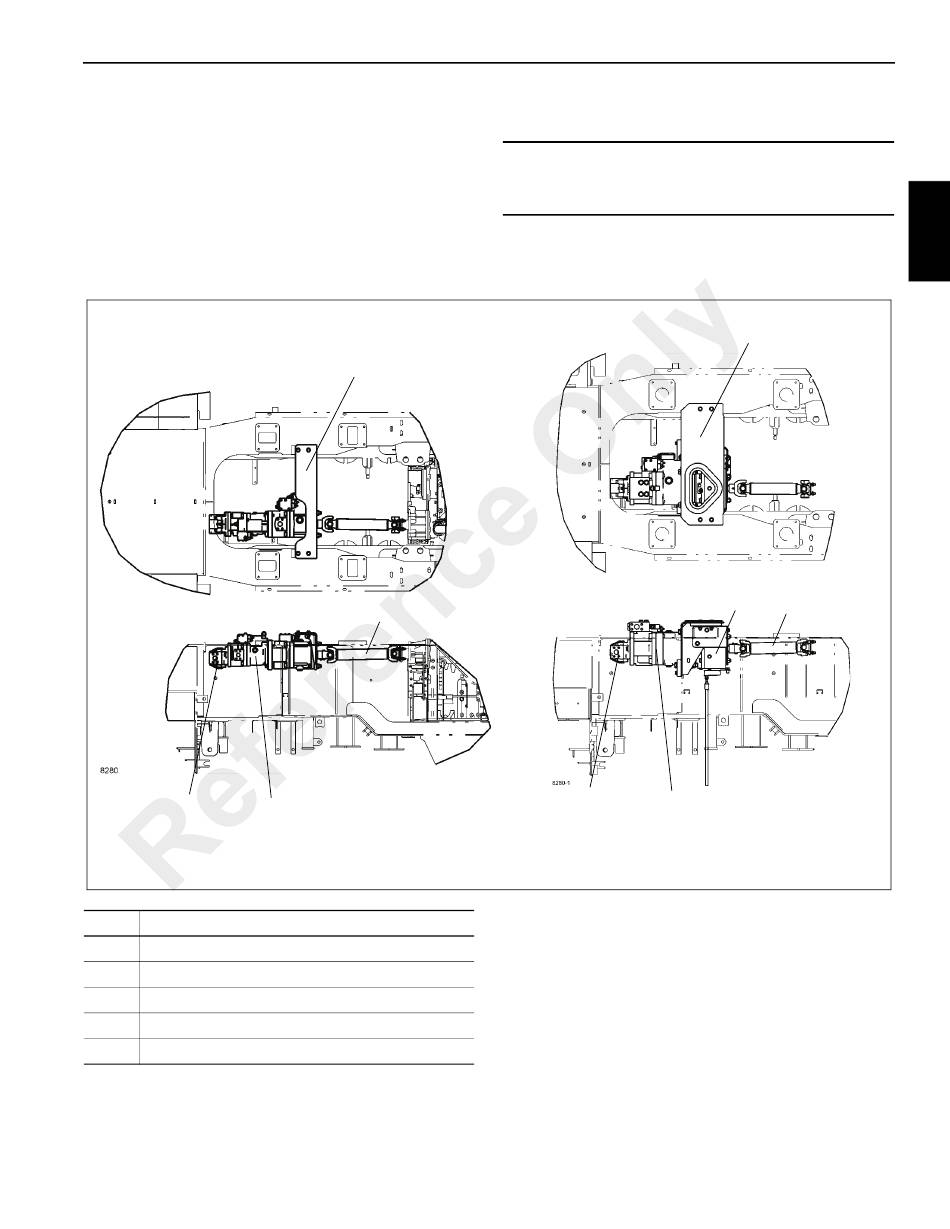

QSM Pump Installation
Item
1 Pump No. 1 Piston Pump
2 Pump No. 1 Gear Pump
3 Support Bracket
4 Propeller Shaft (connects to engine)
5 Clutch (ISX only)
GROVE
3
4
1
Right Side of Crane
Description
Published 01-29-2014, Control # 496-00
the 3/8-16 bolt and its washer to move or remove the
pump support plate.
CAUTION
Keep the pump as level as possible to avoid damaging
the input spline.
4. Remove the bolts and washers attaching the No. 2 pump
to the drive pad on the engine. Remove the pump.
2
1
ISX Pump Installation
5. Discard the gasket. Clean the gasket compound and
any gasket residue from the engine drive pad and the
No. 2 pump.
6. Cover the drive pad's opening to prevent dirt from
entering.
No. 2 Pump Inspection and Repair
Refer to the Shop Reference and Maintenance Guide for
repair instructions as applicable.
HYDRAULIC SYSTEM
3
4
5
FIGURE 2-6
2-17
2
