TMS800E SERVICE MANUAL
Item
1 Barrel
2 Rod
3 Head
4 Piston
5 Spacer
6 Check Valve
7 Set Screw
8 Insert
9 Plug
GROVE
20
18
8
7
15
3
14
2
Description
Published 01-29-2014, Control # 496-00
1
19
20
4
18
5
16
17
13
12
9
10
6
Item
10 Plug
12 Wiper Ring
13 Seal
14 Seal
15 Wear Ring
16 O-ring
17 Backup Ring
18 Seal
19 O-ring
20 Backup Ring
HYDRAULIC SYSTEM
6846-1
9

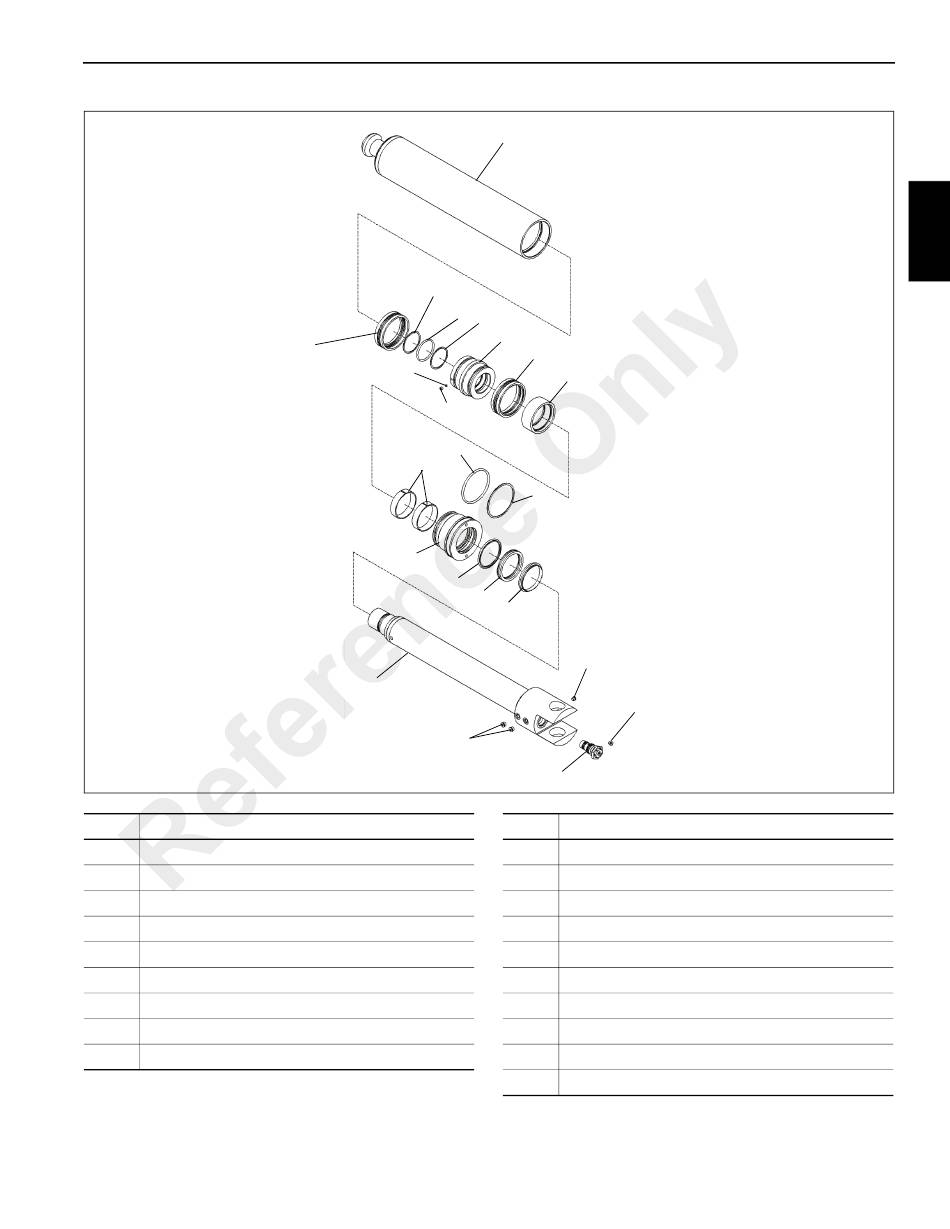

FIGURE 2-51
Description
2
2-75
