Field Replaceable Units (FRUs)
FRU Removal and Replacement

Memory DIMMs

The J5xxx workstation has eight slots for memory DIMMs, while the J7xxx has sixteen
slots. As you face the workstation, the memory DIMM slots are located on the system
board on the left side of the workstation.
Removing a Memory DIMM
To remove a DIMM, do the following:
1. Remove the top panel and the left side panel of the workstation.
2. If this is a J7xxx workstation, remove the four T-15 Torx screws from the front air
divider on the left side of the workstation, and then remove the front air divider.
3. Locate the DIMM slots on the system board on the left side of the workstation.
4. Press down on the left and right DIMM extractor handles to release the DIMM from the
slot. Figure 4-17 shows the left and right extractor handles for one DIMM installed in a
J5xxx workstation.

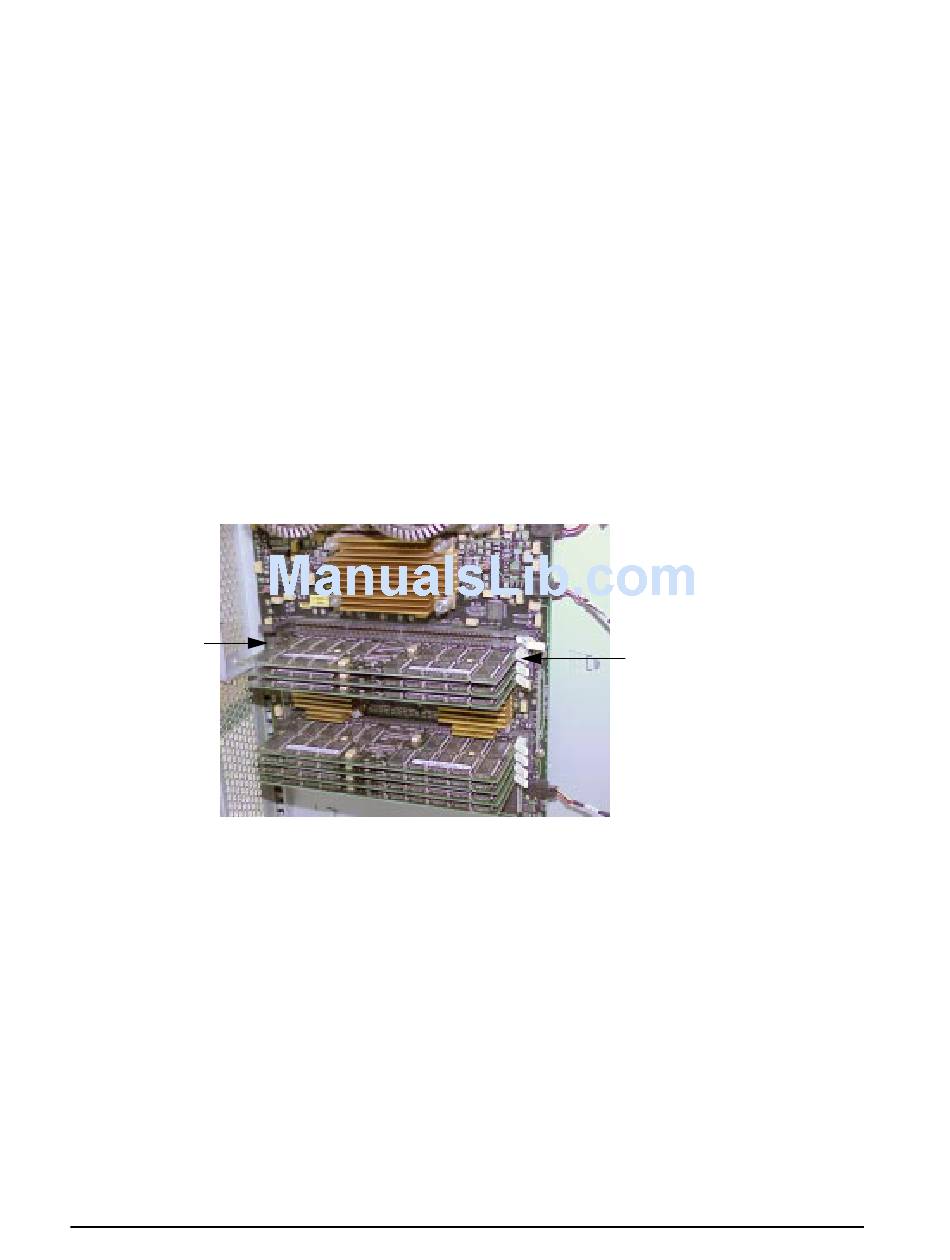

Figure 4-17. DIMM Extractor Handles
Left extractor handle
5. Carefully pull out the DIMM and place it in an antistatic bag for storage.
Replacing a Memory DIMM
To replace a DIMM, do the following:
1. If you will install additional DIMMs in the workstation, use the Boot Console Handler
procedure in "Displaying the Current Monitor Configuration" on page 162 in Chapter 5
to determine the current memory configuration of the workstation.
2. Remove the top panel and the left side panel of the workstation.
3. If this is a J7xxx workstation, remove the four screws from the front air divider on the
left side of the workstation, and then remove the front air divider.
4. Locate the DIMM slots on the system board on the left side of the workstation.
106
Right extractor handle
Chapter 4
