6. Pull on the fan/speaker mounting bracket tab that is closest to the internal chassis wall,
as shown in Figure 4-55.

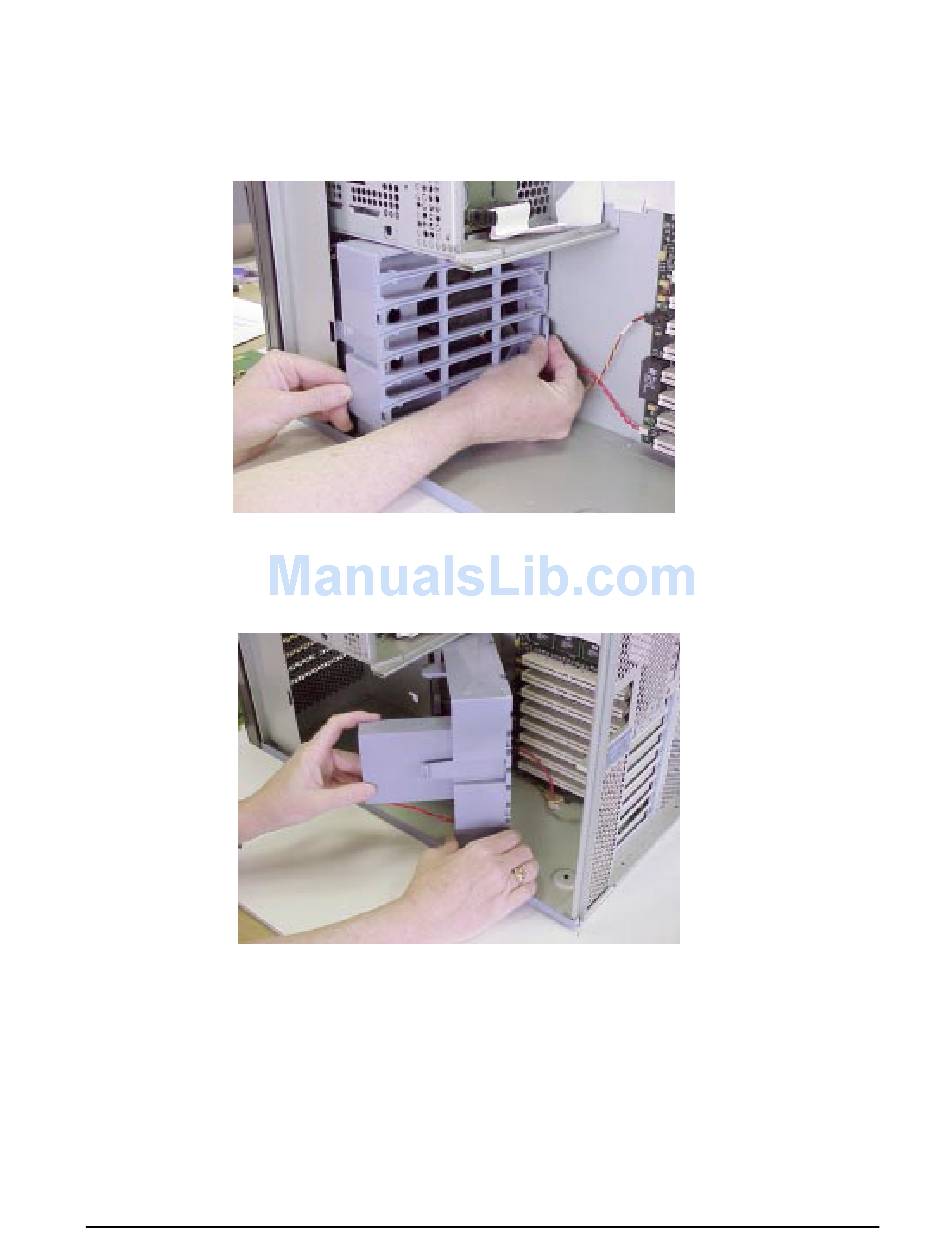

Figure 4-55. Loosening the Fan/Speaker Mounting Bracket
7. Rotate and tilt the mounting bracket to remove it from the chassis, as shown in
Figure 4-56.
Figure 4-56. Removing the Fan/Speaker Mounting Bracket
8. Place the mounting bracket on a flat surface with the fan vertical to the surface.
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
139
